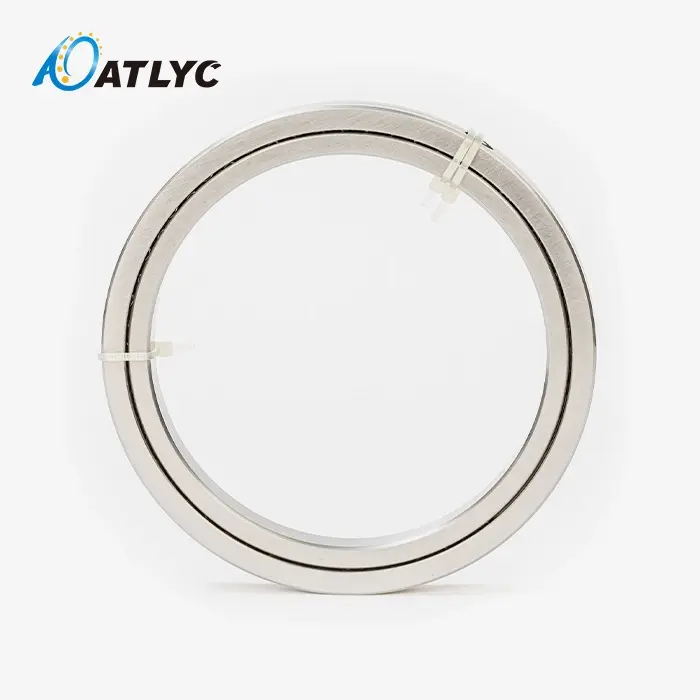

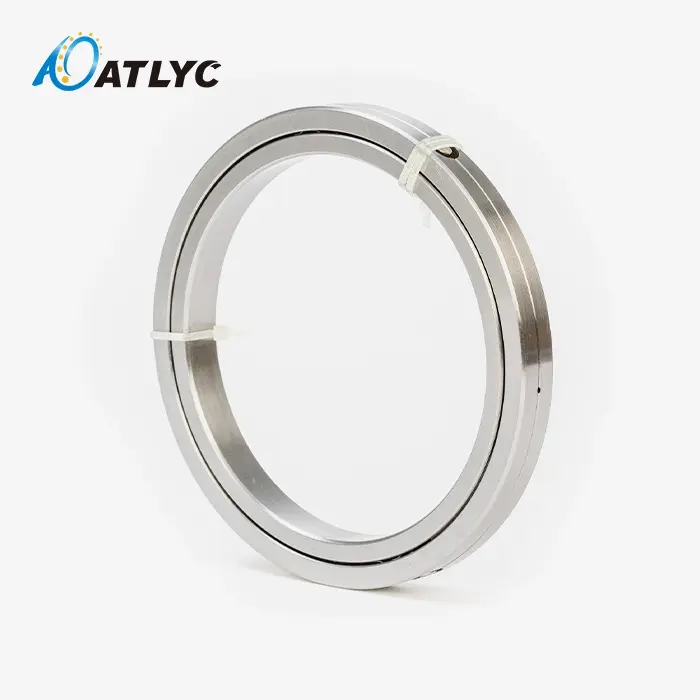

RA Series Crossed Roller Bearings

RA Series Crossed Roller Bearings - Precision Engineered for Compact Applications

When your equipment demands maximum load capacity within minimal space constraints, RA Series Crossed Roller Bearings deliver the optimal solution. These ultra-thin, high-precision bearings feature a separable outer ring design with integral inner ring construction, enabling exceptional rotational accuracy while supporting multidirectional loads. The RA configuration provides engineers with a space-efficient bearing solution that handles radial, axial, and moment loads simultaneously in a single compact unit.

Understanding RA Series Design Architecture

The RA Series employs a sophisticated crossed roller configuration where cylindrical rollers are positioned orthogonally within precision-machined V-groove raceways. This arrangement allows each roller to carry loads in different directions, effectively distributing forces across the entire bearing assembly.

Key Structural Features:

• Separable outer ring for simplified installation and maintenance
• Integral inner ring ensures superior rotational accuracy
• Crossed roller arrangement at 90° angles maximizes load distribution
• Ultra-thin profile minimizes envelope requirements
• Precision V-groove raceways maintain optimal roller contact

The working principle centers on load path optimization. When you apply combined loads, the crossed roller configuration ensures load distribution across multiple contact points. This eliminates the need for multiple bearing arrangements, reducing complexity and improving system reliability.

Technical Specifications

Performance Advantages in Real Applications

Exceptional Load Capacity

The crossed roller design enables you to handle complex loading conditions without requiring multiple bearing arrangements. Single bearings support radial loads up to several tons while simultaneously managing axial and moment loads.

Superior Rotational Accuracy

Integral inner ring construction provides micron-level runout precision, essential for applications requiring exact positioning. The rigid structure maintains accuracy under varying load conditions.

Low Friction Operation

Optimized roller-to-raceway contact geometry reduces friction coefficients, enabling smooth operation at both low and high speeds. This translates to improved energy efficiency and reduced heat generation.

Compact Installation Envelope

Ultra-thin profile design allows integration into space-constrained applications where conventional bearing arrangements prove impractical.

Primary Applications

Industrial Robotics

Robot joints require precise positioning with high rigidity. RA Series Crossed Roller Bearings provide the accuracy and load capacity needed for reliable robotic operation across millions of cycles.

Accuracy Fabricating Equipment

Rotary tables and ordering frameworks advantage from the remarkable runout precision and minute stack capacity. These orientation keep up situating accuracy beneath changing machining loads.

Medical Equipment

CT scanners, surgical robots, and demonstrative hardware require calm operation with exact movement control. The moo grinding and tall exactness characteristics meet exacting therapeutic gear requirements.

Measuring Instruments

Coordinate measuring machines and optical hardware request steady, exact turn. The inflexible bearing structure guarantees estimation exactness over amplified periods.

IC Fabricating Devices

Semiconductor generation gear requires contamination-free, exact situating. The fixed bearing plan with exactness operation meets cleanroom requirements.

Material Engineering and Quality Control

Our fabricating prepare utilizes high-grade GCr15 and GCr15SiMn bearing steels, prepared through specialized warm treatment for ideal hardness and dimensional steadiness. Each bearing experiences comprehensive testing counting vibration investigation, stack testing, and accuracy measurement.

Quality confirmation covers twelve basic parameters some time recently shipment. Our three-tier assessment framework guarantees reliable execution with over 99.9% capability rates.

Technical Support and Service

Our experienced designing group gives comprehensive back for bearing determination, establishment direction, and execution optimization. We help with application examination to guarantee ideal bearing setup for your particular requirements.

For complex establishments or custom determinations, we offer on-site specialized discussion and estimation administrations around the world.

Why Choose Our RA Series Solution?

With 30 years of bearing manufacturing experience, we combine proven design expertise with modern production capabilities. Our integrated supply chain ensures reliable delivery schedules while maintaining consistent quality standards.

Standard RA Series Crossed Roller Bearings ship within 48 hours from our extensive inventory. Custom configurations utilize our streamlined production processes, delivering 30% faster than industry averages.

Ready to optimize your application with precision-engineered crossed roller bearings? Contact our technical team at auto@lyautobearing.com for detailed specifications and application guidance tailored to your requirements.
