RA5008UUCC0 Cross Roller Bearing - Ultra-Thin Precision Solution

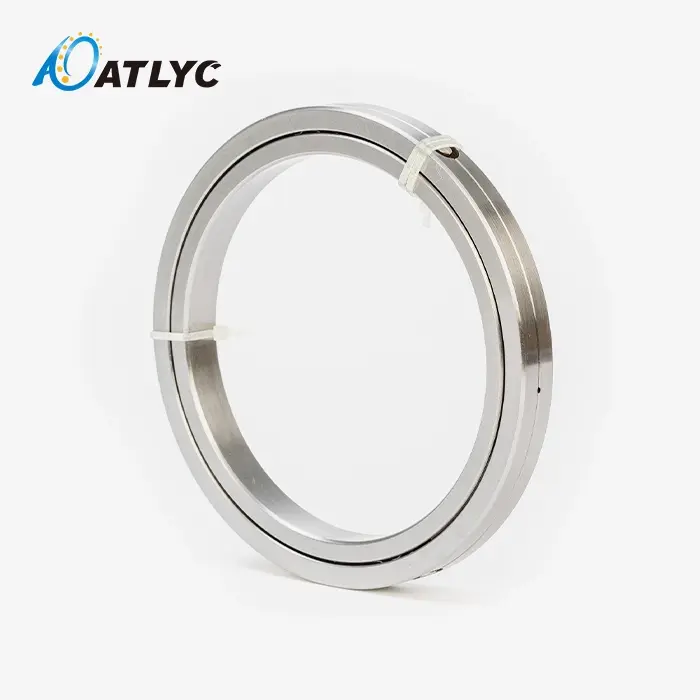

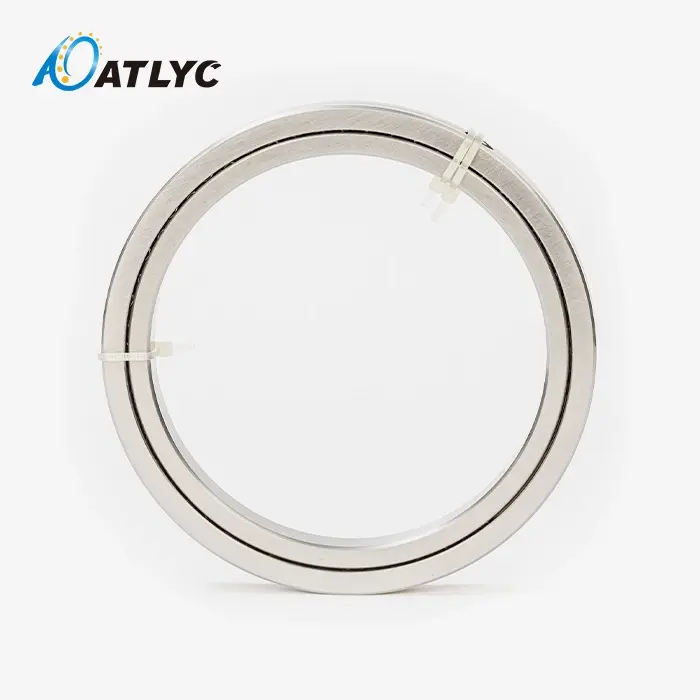

The RA5008UUCC0 Cross roller bearing represents advanced engineering in ultra-thin cross roller bearing technology. This precision component features a 50mm inner diameter, 66mm outer diameter, and exceptionally compact 8mm width. The separable outer ring design with integral inner ring provides exceptional rigidity while minimizing spatial requirements. Its cylindrical rollers are arranged orthogonally at 90° intervals, enabling simultaneous handling of radial, axial, and moment loads in a single bearing assembly.

图片尺寸 350x350

Title

Technical Specifications

Design Structure and Working Principle

The bearing utilizes a cross roller configuration where cylindrical rollers are positioned perpendicular to each other on V-groove raceways. This arrangement creates a 45° contact angle that efficiently distributes loads across multiple directions. The separable outer ring design facilitates installation while maintaining structural integrity when properly clamped.

The spacer retainers prevent roller-to-roller contact, reducing friction and wear. The integral inner ring ensures consistent rotation accuracy and maintains dimensional stability under varying load conditions. This design principle maximizes load capacity while achieving minimal cross-sectional height.

Performance Advantages

Compact Design Benefits: The ultra-thin 8mm profile enables significant weight reduction in robotic joints and precision equipment. This dimensional efficiency allows designers to minimize overall system size without compromising load capacity.

Multi-Directional Load Handling: Unlike conventional bearings requiring multiple units for complex loads, this single bearing manages radial forces, thrust loads, and overturning moments simultaneously. This reduces assembly complexity and potential failure points.

Enhanced Rigidity: The negative clearance (CC0) specification eliminates internal play, providing superior rotational accuracy. This preload condition increases system stiffness by 300-400% compared to standard clearance bearings.

Contamination Protection: Dual rubber seals protect internal components from dust and debris while retaining lubrication. This sealed design extends maintenance intervals and ensures consistent performance in demanding environments.

Industrial Applications

Robotic Systems: Essential for collaborative robot joints where space constraints and moment load capacity are critical. The RA5008UUCC0 Cross roller bearing enables smooth articulation while supporting cantilevered loads from extended robot arms.

Therapeutic Gear: Coordinates into CT scanners, surgical mechanical autonomy, and imaging gadgets requiring exact rotational control. The zero-backlash characteristic anticipates situating mistakes that seem compromise demonstrative accuracy.

Semiconductor Fabricating: Utilized in wafer dealing with hardware and pick-and-place frameworks where defilement control and situating accuracy are foremost. The fixed plan anticipates molecule era in cleanroom environments.

Machine Device Rotating Tables: Gives precise ordering in machining centers and facilitate measuring machines. The tall inflexibility guarantees dimensional precision amid cutting operations and estimation procedures.

Installation and Maintenance Considerations

The distinct external ring requires appropriate establishment procedures. Mount the bearing into a unbending lodging with satisfactory clamping drive connected to the external ring parts. Fix mounting jolts in a cross design to guarantee uniform stacking and avoid ring distortion.

Pre-applied lithium-based oil gives beginning oil. For high-cycle applications, relubrication through assigned oil fittings amplifies operational life. The fixed setup regularly requires support interims of 6-12 months depending on working conditions.

Monitor bearing temperature and vibration levels to identify early wear markers. Supplant seals if defilement entrance happens, as inside harm can quickly advance once defensive obstructions are compromised.

图片尺寸 350x350

Title

Quality Assurance and Technical Support

Our manufacturing process incorporates high-purity bearing steel with specialized heat treatment achieving HRC 58-64 hardness. Precision grinding technology ensures dimensional accuracy within P4 tolerance levels. Each bearing undergoes comprehensive testing including vibration analysis and load verification.

The three-stage quality control system - incoming material inspection, in-process monitoring, and final product verification - maintains our 99.9% qualification rate. Twelve critical parameters are validated before shipment, ensuring reliable performance in your applications.

For technical consultation regarding the RA5008UUCC0 Cross roller bearing or application-specific requirements, contact our engineering team at auto@lyautobearing.com. Our experienced technical support provides installation guidance, troubleshooting assistance, and custom solutions for specialized applications.
