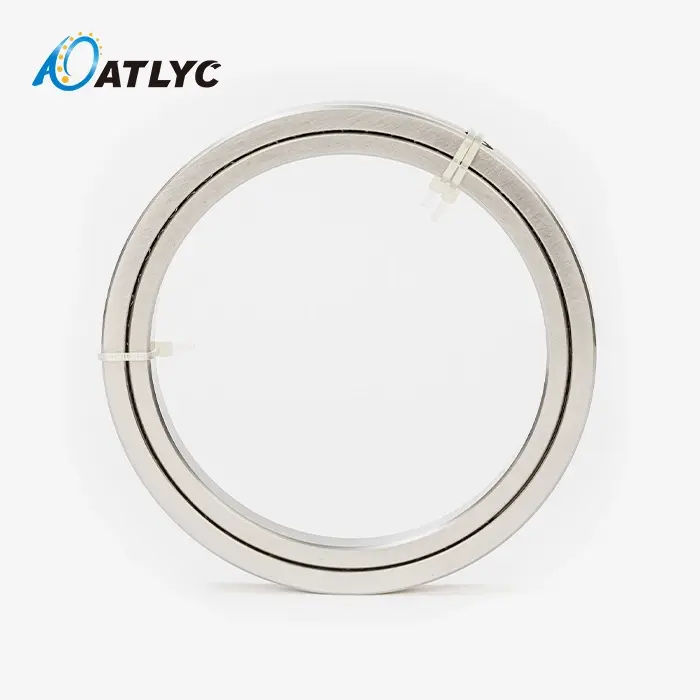

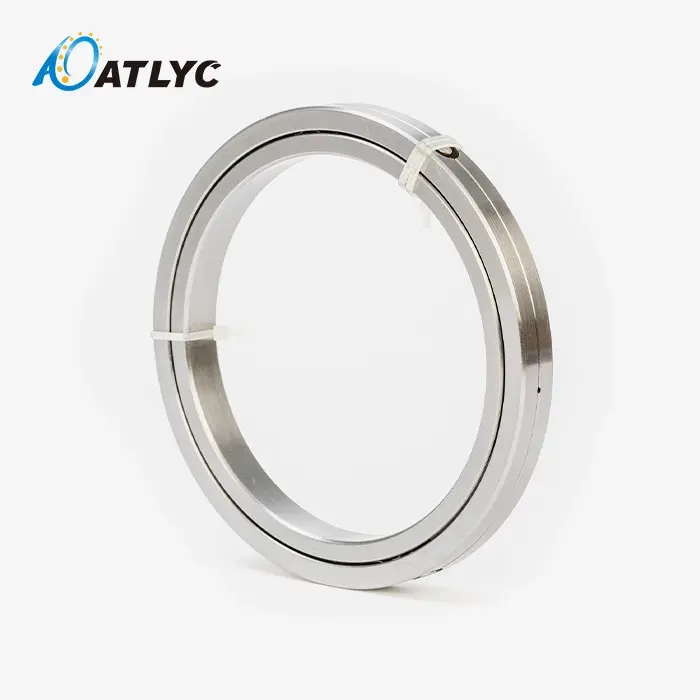

RA Series Cross Roller Bearing - Ultra-Thin Precision Solution for Space-Critical Applications

When your equipment demands maximum load capacity in minimal space, the RA Series Cross Roller Bearing delivers the engineering solution you need. This ultra-thin precision bearing features outer ring separable design with inner ring rotation capability, making it ideal for space-constrained applications. Our product eliminates the need for multiple bearing arrangements while maintaining exceptional rigidity and rotational accuracy. With 30 years of bearing manufacturing experience, we understand your requirements for reliable, high-performance components.

Technical Structure and Working Principle

Design Configuration

The RA Series features a split outer ring design with an integrated inner ring structure. Cylindrical rollers are positioned orthogonally at 90-degree intervals within V-groove raceways. This arrangement allows each roller to operate independently while distributing loads effectively across the bearing assembly.

Spacers separate adjacent rollers to prevent direct contact and reduce friction. The thin-walled construction reduces both weight and space requirements compared to conventional bearing arrangements. This design eliminates the need for separate thrust and radial bearings in many applications.





Load Distribution Mechanism

The orthogonal roller arrangement enables simultaneous handling of radial, axial, and moment loads. When loads are applied, rollers automatically distribute forces according to their position and contact angles. This self-adjusting mechanism maintains consistent load distribution even under varying operating conditions.

The V-groove raceway geometry ensures optimal contact between rollers and races. This configuration maximizes load capacity while minimizing stress concentrations that could lead to premature failure.

Technical Specifications

Performance Advantages

Multi-Directional Load Capacity

You get exceptional load-bearing capability in all directions from a single bearing unit. The RA Series Cross Roller Bearing handles complex load combinations that typically require multiple bearing arrangements. This capability simplifies your design while reducing component count and assembly complexity.

Compact Footprint

The ultra-thin profile saves valuable space in your equipment design. Wall thickness is minimized without compromising structural integrity. You can achieve lighter assemblies while maintaining required performance levels.

Precision Rotation

Integrated inner ring construction provides superior rotational accuracy. Runout precision reaches micron-level consistency for applications requiring exact positioning. Low friction coefficient ensures smooth operation across the full speed range.

Enhanced Rigidity

The cross roller configuration delivers exceptional rigidity compared to conventional bearing types. This characteristic is essential for precision machinery where deflection must be minimized. Your equipment maintains accuracy under varying load conditions.





Applications and Industries

Industrial Robotics

Robot joints require bearings that handle complex load patterns while maintaining precision. The RA Series provides the necessary rigidity and accuracy for reliable robotic operation. Compact size allows integration into space-limited joint assemblies.

Machine Tool Applications

Rotary tables and indexing mechanisms benefit from the multi-directional load capacity. Precision grinding and machining operations require the accuracy levels this series provides. Your machining centers achieve consistent performance with reduced maintenance requirements.

Medical Equipment

Medical devices demand quiet operation and exceptional precision. The low friction characteristics ensure smooth movement for surgical robots and diagnostic equipment. Clean manufacturing processes meet medical industry requirements.

Precision Instruments

Measuring equipment and testing instruments require stable, accurate rotation. The RA Series maintains consistent performance across temperature variations and extended operating periods. Your instruments deliver reliable measurements over their service life.

​​​​​​​

Quality and Manufacturing

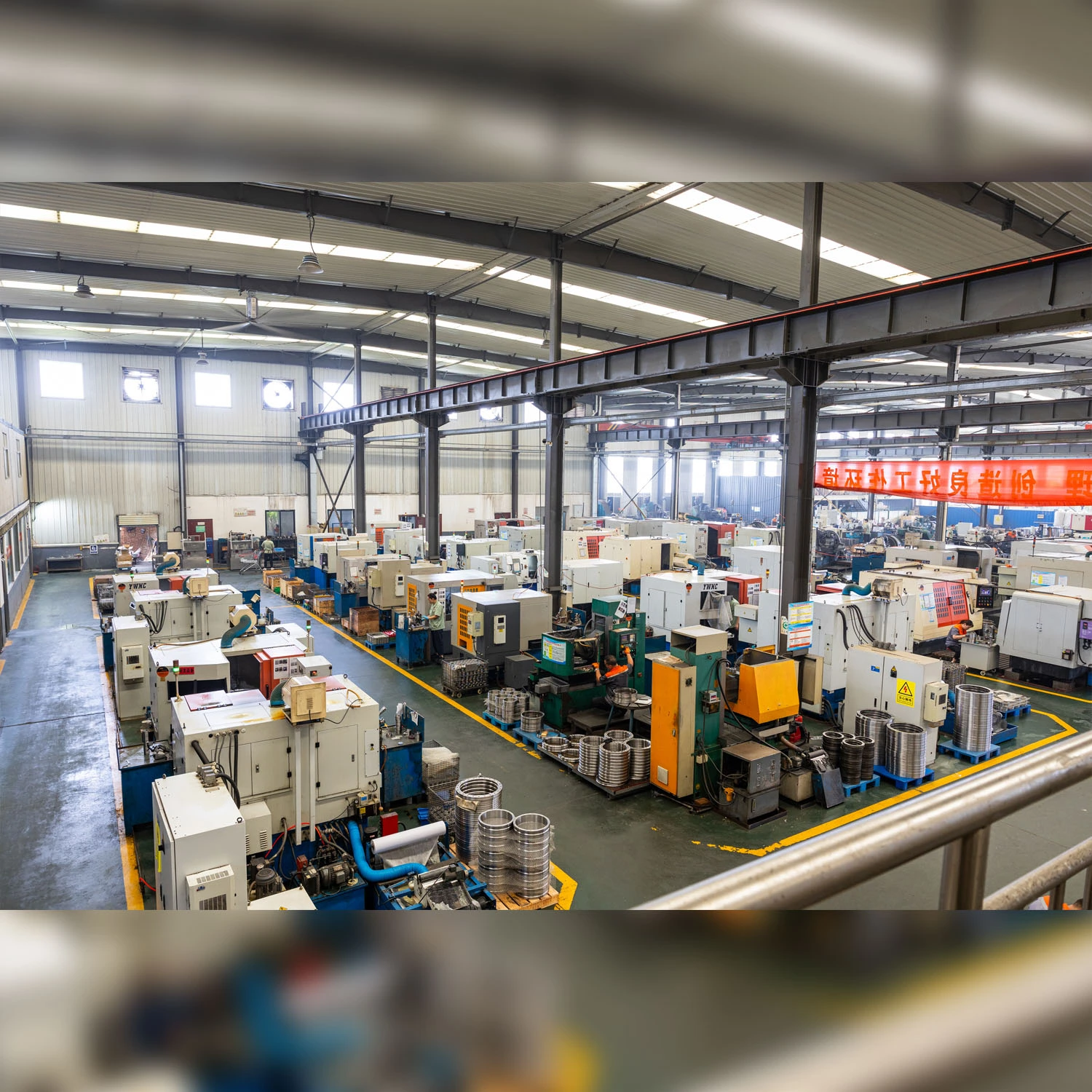

Our manufacturing process incorporates high-purity bearing steel and specialized heat treatment procedures. Precision grinding technology achieves required dimensional accuracy and surface finish. Each bearing undergoes comprehensive testing including vibration analysis and load verification.

Quality control follows a three-stage inspection system covering raw materials, in-process monitoring, and final product verification. Twelve critical parameters are verified for each production batch. Our qualification rate exceeds 99.9% for consistent product reliability.

Supply and Support Services

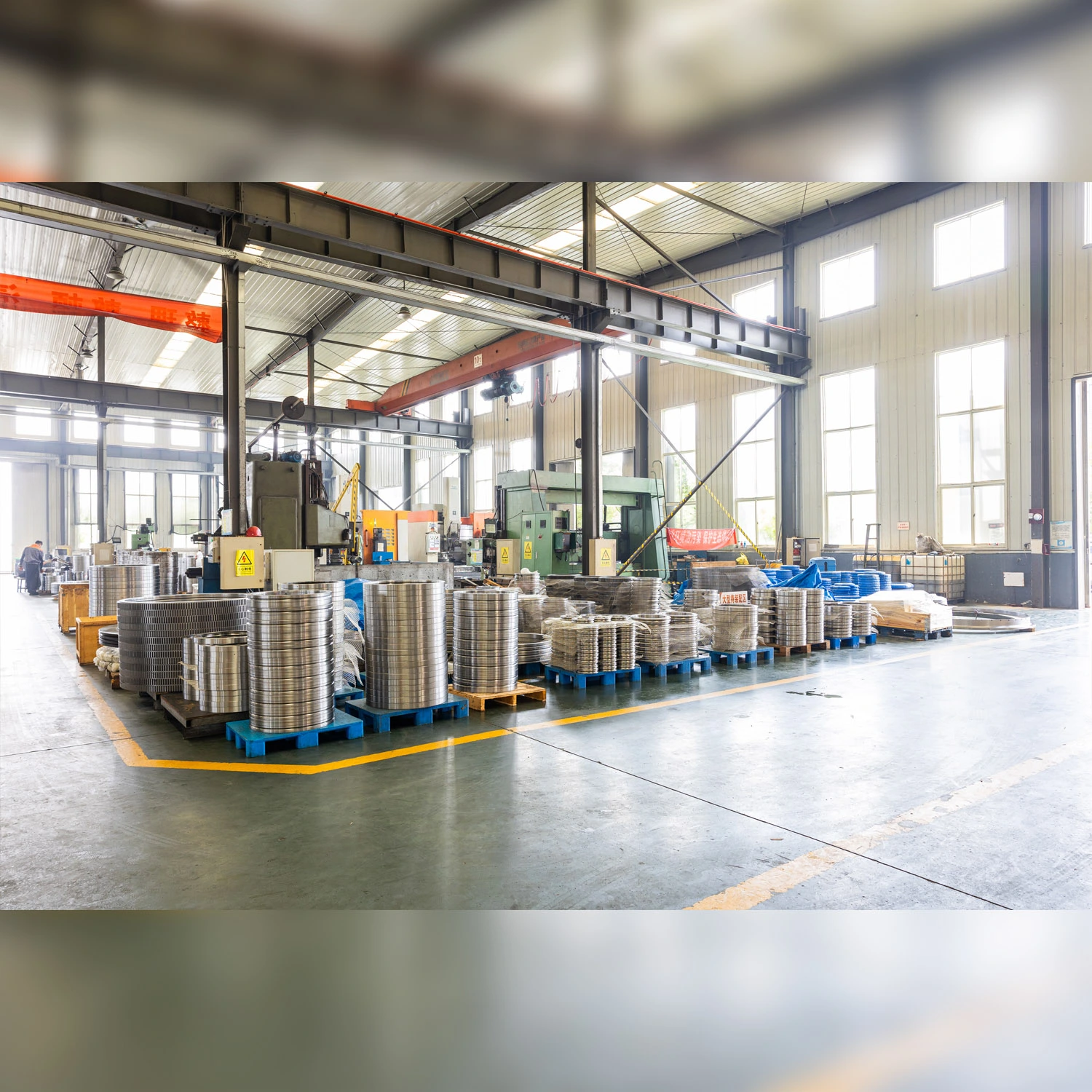

We maintain stock of over 1,000 bearing types for rapid delivery of standard configurations. Regular orders ship within 48 hours from our regional distribution centers. Custom configurations utilize modular production processes that reduce lead times by 30% compared to industry standards.

Technical support includes application analysis, installation guidance, and operational monitoring. Our engineering team provides worldwide mapping services for replacement applications. We offer complete lifecycle management from initial selection through replacement planning.

For technical consultation or product specifications, contact our engineering team at auto@lyautobearing.com. We provide detailed application analysis to ensure optimal RA Series Cross Roller Bearing selection for your specific requirements.
