RA8008UUCC0 Crossed Roller Bearing

RA8008UUCC0 Crossed Roller Bearing: Ultra-Compact Precision Solution

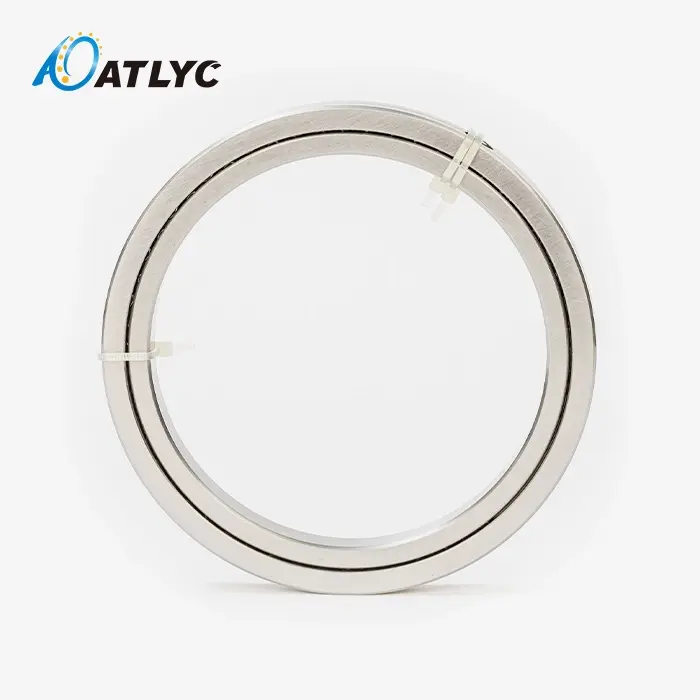

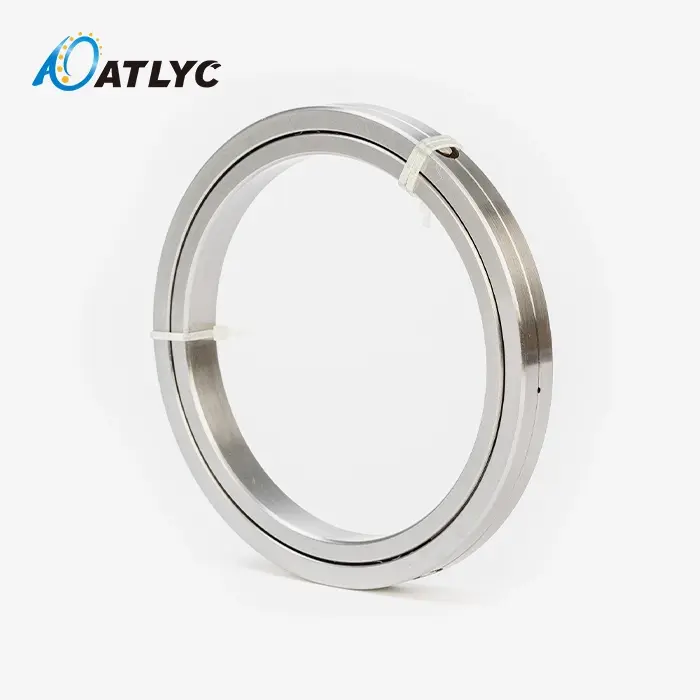

The RA8008UUCC0 Crossed Roller Bearing represents a specialized precision bearing solution designed for applications requiring exceptional rigidity in extremely tight spaces. This ultra-compact bearing combines an 80mm inner diameter, 96mm outer diameter, and remarkably thin 8mm cross-section to deliver outstanding performance where traditional bearing solutions fail. The unique crossed roller configuration enables simultaneous handling of radial, axial, and moment loads within a single compact unit. Engineers worldwide rely on this bearing to overcome space constraints while maintaining superior rotational accuracy in demanding applications.





Technical Specifications

Design Features and Working Principle

Structure Configuration

The RA series design incorporates a separable outer ring with an integrated inner ring structure. This configuration optimizes manufacturing precision while enabling proper installation in space-constrained applications. The thin-wall design reduces the RA8008UUCC0 Crossed Roller Bearing's weight contribution to your assembly by up to 50% compared to standard series bearings.

Cross Roller Arrangement

Cylindrical rollers are positioned orthogonally at 90-degree intervals within precision-machined V-groove raceways. This arrangement distributes loads across multiple contact points, creating superior load-carrying capacity compared to traditional ball bearings. The spacer-separated roller configuration prevents roller-to-roller contact, ensuring smooth operation and extended service life.

Preload System

The CC0 designation indicates a carefully controlled negative clearance (preload) of -2 to -5 microns. This preload eliminates internal play, providing zero backlash operation essential for precision positioning systems. While creating slightly higher starting torque, this feature delivers exceptional rotational stiffness and accuracy.

Performance Advantages

Load Handling Capability

Your equipment benefits from the bearing's ability to handle complex load combinations within a single unit. The crossed roller design provides high radial load capacity while simultaneously managing axial forces and moment loads. This eliminates the need for multiple bearing arrangements, simplifying your design and reducing assembly complexity.

Rotational Accuracy

Precision manufacturing processes ensure exceptional runout accuracy, often meeting ISO P5 or P4 standards. The integrated inner ring design maintains consistent rotational precision even under varying load conditions. This accuracy remains stable throughout the bearing's service life, ensuring your equipment maintains performance specifications.

Compact Envelope

The 8mm width delivers maximum load capacity within minimal space requirements. This thin profile enables lightweight equipment design while maintaining structural integrity. Your assemblies achieve better power-to-weight ratios and improved dynamic response characteristics.

Applications and Industries

Industrial Robotics

Robot joint applications benefit from the bearing's zero-backlash operation and compact size. The CC0 preload prevents arm droop under cantilevered loads while enabling precise positioning repeatability. Collaborative robots particularly benefit from the weight reduction and smooth operation characteristics.

Precision Machinery

Rotary tables and indexing mechanisms utilize the bearing's moment load capacity for accurate positioning. The sealed design protects against contamination in machining environments while maintaining long-term accuracy. Medical equipment applications leverage the smooth, quiet operation for patient comfort and imaging stability.

Semiconductor Equipment

Wafer handling systems require the bearing's contamination resistance and precision operation. The UU seals prevent particle generation while the crossed roller design handles eccentric loads during wafer transfer operations. Clean room compatibility makes this bearing suitable for critical manufacturing processes.

Installation and Maintenance Considerations

Mounting Requirements

Your housing design must provide adequate rigidity to support the thin-wall bearing structure. Use press-fitting tools that distribute installation forces evenly around the bearing circumference. Avoid direct hammer blows or point loading during installation to prevent raceway distortion.

Lubrication Management

The factory-installed grease provides adequate lubrication for most applications. Relubrication intervals depend on operating conditions, typically ranging from 6 months to 2 years. High-temperature or vacuum applications may require special lubricant specifications.

Operating Environment

The UU seals provide effective contamination protection in standard industrial environments. Temperature limits of -20°C to +120°C accommodate most applications. For extreme conditions, consult with our technical team for specialized solutions.





Why Choose Luoyang Auto Bearing?

Our 30 years of bearing industry experience ensures you receive proven solutions for your most challenging applications. We maintain comprehensive inventory of standard bearings while offering customization capabilities for unique requirements. Our technical support team provides installation guidance and application engineering to optimize bearing performance in your specific equipment.

Quality control through our three-level inspection system guarantees consistent product reliability. Each product undergoes comprehensive testing including vibration analysis and dimensional verification before shipment.

Contact Information

For technical specifications, custom configurations, or application support, contact our engineering team at auto@lyautobearing.com. We provide comprehensive technical consultation to ensure optimal RA8008UUCC0 Crossed Roller Bearing selection and implementation for your specific requirements.

Our global supply chain capabilities ensure reliable delivery schedules while maintaining consistent quality standards. Whether you need immediate delivery of standard products or custom engineering solutions, we provide the technical expertise and manufacturing capabilities to support your success.
