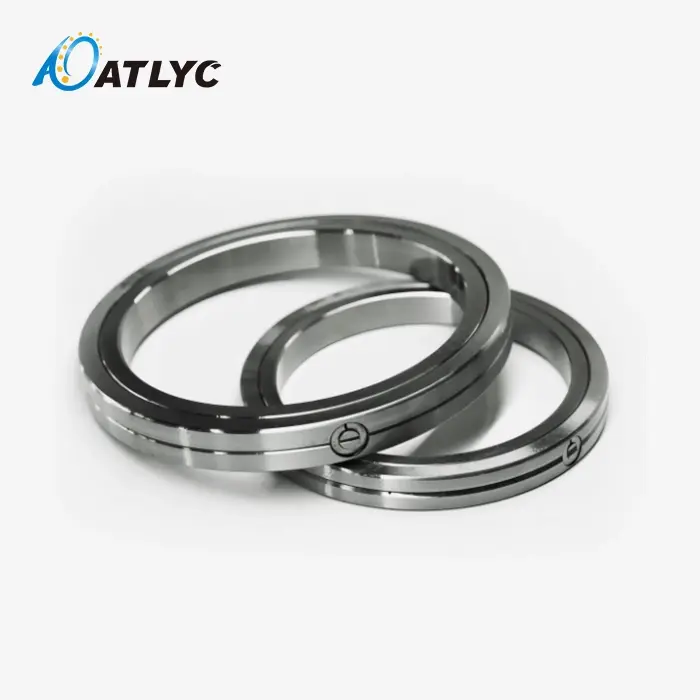

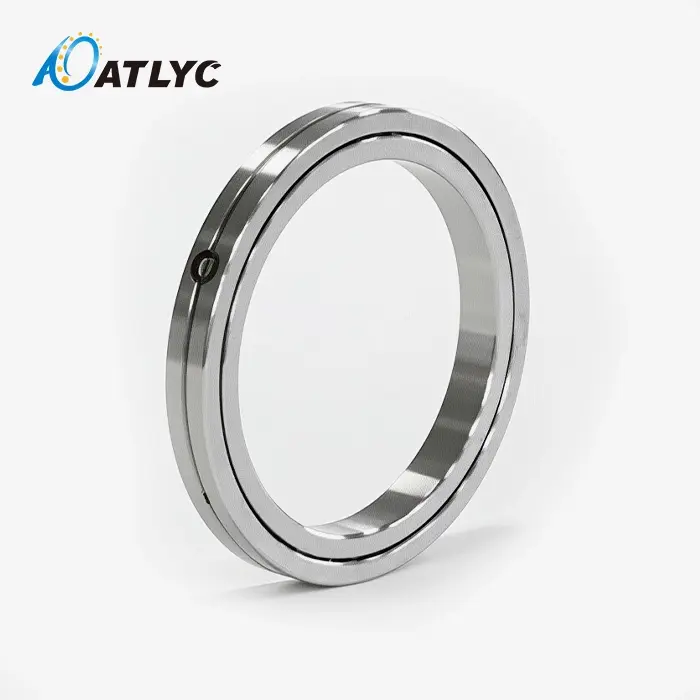

Cross roller bearing SX series

Cross Roller Bearing SX Series: Compact Design for Precision Applications

When your equipment demands exceptional precision in tight spaces, the Cross roller bearing SX series delivers unmatched performance through innovative engineering. This ultra-thin bearing solution features an integral inner ring and split outer ring construction, specifically designed for applications requiring inner ring rotation with minimal radial space. You get simultaneous radial, axial, and moment load handling in a single compact unit, eliminating the complexity and space requirements of traditional double-bearing arrangements.





What Makes SX Series Cross Roller Bearings Unique?

The SX series employs a distinctive structural design that sets it apart from conventional bearing solutions. Cylindrical rollers are positioned orthogonally within 90° V-groove raceways, separated by precision spacer retainers. This configuration enables the bearing to handle complex multi-directional loads while maintaining exceptional rotational accuracy.

Key Structural Features:

• Integral inner ring for enhanced rigidity and precision
• Split outer ring (two halves) secured by three fastening rings
• Ultra-thin profile maximizes space efficiency
• No mounting holes in rings - requires flange and housing fixation
• Crossed roller arrangement for optimal load distribution

Technical Specifications

Performance Advantages

Multi-Directional Stack Capacity

You advantage from extraordinary load-bearing capability in all headings. The crossed roller setup disperses strengths effectively over the raceway surfaces, empowering single-bearing arrangements where different heading were already required.

Superior Rotational Precision

The necessarily inward ring development minimizes avoidance beneath stack, whereas accuracy fabricating guarantees steady runout precision. This deciphers to dependable situating execution in your basic applications.

Low Contact Operation

Optimized roller geometry and surface medications diminish grinding coefficients, coming about in smooth turn with negligible torque prerequisites. Your hardware works more proficiently with diminished warm generation.

Compact Plan Benefits

The ultra-thin profile permits integration into space-constrained congregations. You can accomplish higher execution thickness in your hardware plan whereas rearranging establishment procedures.

​​​​​​​

Primary Applications

Industrial Robotics

Perfect for robot joint gatherings where exact internal ring turn is basic. The Cross roller bearing SX series withstands complex compound loads produced by verbalized arm developments whereas keeping up situating accuracy.

CNC Machining Centers

Ideal for accuracy rotating tables and ordering instruments. The bearing's soundness beneath cutting powers guarantees steady workpiece situating and surface wrap up quality.

Medical Equipment

Supports smooth, vibration-free turn in surgical robots and demonstrative imaging frameworks. The low-noise operation and accuracy control meet exacting restorative hardware requirements.

Semiconductor Manufacturing

Enables exact wafer dealing with and situating in IC fabricating gear. The clean operation and dimensional soundness back contamination-sensitive processes.

Measuring Instruments

Provides solid turn for optical gear and arrange measuring machines. Reliable exactness over temperature ranges guarantees estimation repeatability.

Installation and Mounting Considerations

The SX series requires proper flange and housing design for optimal performance. Without mounting holes in the rings, you must ensure adequate clamping force through the housing arrangement. The split outer ring design facilitates installation while maintaining structural integrity through the three-ring fastening system.

Critical Installation Points:

• Ensure proper flange design for load distribution
• Verify housing alignment to prevent binding
• Apply appropriate preload through fastening rings
• Consider thermal expansion in housing design

Quality and Manufacturing Standards

Our 30-year bearing manufacturing experience ensures consistent quality in every product unit. We employ high-purity bearing steel and specialized heat treatment processes to achieve optimal material properties. Precision grinding technology delivers the surface finishes required for smooth operation and extended service life.

Each bearing undergoes comprehensive testing including vibration analysis and life testing. Our three-level quality control system maintains an ex-factory qualification rate exceeding 99.9%, ensuring reliable performance in your applications.

Why Choose Our SX Series Solutions?

With integrated R&D and manufacturing capabilities, we provide comprehensive support from initial selection through installation and maintenance. Our technical team offers application-specific recommendations to optimize Cross roller bearing SX series performance in your equipment

For technical consultations or custom specifications, contact our engineering team at auto@lyautobearing.com. We're ready to help you achieve precision performance with the right bearing solution.
