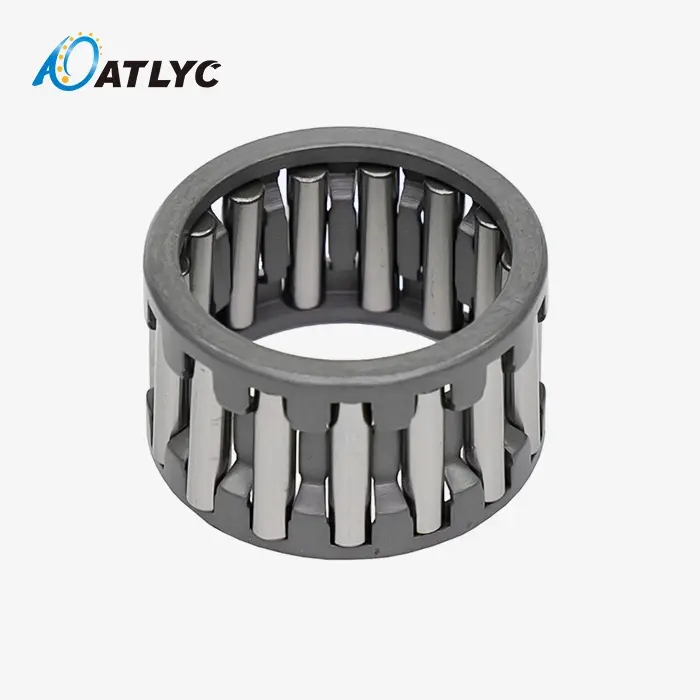

Caged Needle Roller Bearings K12X16X8 - Precision Engineering Solution

When space constraints meet high load requirements in your mechanical designs, Caged Needle Roller Bearings K12X16X8 deliver exceptional performance in minimal radial space. This precision engineered component features a 12mm inner diameter, 16mm outer diameter, and 8mm width configuration that maximizes load capacity while maintaining compact dimensions. The K-series design eliminates traditional inner and outer rings, utilizing your shaft and housing bore directly as raceways to achieve superior space utilization and weight reduction benefits.

Design Structure and Working Principle

The K12X16X8 utilizes a one of a kind cageless plan logic that changes customary bearing concepts. High-precision needle rollers are held inside a carefully built cage structure, making a total rolling component gathering without fundamentally rings.

The working rule centers on coordinate contact between precision-ground needle rollers and solidified shaft/housing surfaces. This arrangement kills the fabric thickness of customary bearing rings, diminishing the by and large spiral envelope by roughly 30-40% compared to identical strong ring bearings.

The cage keeps up ideal roller dispersing and avoids skewing amid operation. Steel cages give greatest quality for high-speed applications, whereas PA66 polymer cages offer fabulous chemical resistance and calmer operation in moderate-speed situations.

Performance Advantages

Superior Load Capacity

Despite its compact 2mm cross-sectional height, this Caged Needle Roller Bearings K12X16X8 delivers impressive load ratings. The direct roller-to-raceway contact maximizes the effective rolling element diameter, achieving a basic dynamic load rating of approximately 4.8 kN and static load rating exceeding 5.6 kN.

Maximum Space Efficiency

The ringless design provides the highest possible load capacity within given radial space constraints. You gain significant weight reduction while maintaining structural integrity in critical applications.

Enhanced Lubrication Flow

The open architecture promotes excellent lubricant circulation, improving heat dissipation and extending operational life. Oil can flow freely around all rolling elements, preventing hot spots and maintaining consistent film thickness.

Precision Manufacturing

Grade 2 or Grade 5 chromium steel rollers are ground to sub-micron tolerances, ensuring uniform load distribution across all contact points. This precision reduces vibration and extends bearing life significantly.

Primary Applications

Automotive Transmission Systems

In planetary gear assemblies and pilot bearing applications, the K12X16X8 withstands centrifugal forces while utilizing hardened gear bores as outer raceways. This integration saves critical weight and space in compact transmission designs.

Small Engine Connecting Rods

The bearing excels in wrist pin applications for 2-stroke and 4-stroke engines found in chainsaws, trimmers, and motorcycles. It handles oscillating loads and high acceleration forces without seizing, even under boundary lubrication conditions.

Precision Machinery Applications

Textile machinery and printing equipment benefit from the bearing's high radial rigidity. Paper feed rollers and textile bobbins maintain precise shaft alignment, preventing material jams and fabric defects caused by shaft deflection.

Industrial Gearboxes

Compact gearbox designs utilize these bearings where traditional ball or roller bearings would consume excessive radial space. The direct raceway contact provides excellent stiffness for gear tooth loading.

Quality Control Standards

Our manufacturing process follows strict ISO 3030 and DIN 5405-1 standards to ensure consistent quality and performance.

Dimensional Precision

Needle rollers undergo rigorous sorting into tolerance groups within 2µm variation. This ensures even load distribution and prevents premature wear patterns. Both envelope circles (16mm outer and 12mm inner) are verified using calibrated plug and ring gauges.

Cage Integrity Verification

Steel cages receive weld strength testing to prevent failure under centrifugal loading. Polymer cages undergo material homogeneity checks and injection molding flash removal inspection to maintain smooth operation.

Material Properties

Each batch undergoes hardness verification to maintain HRC 60-64 specification. Surface roughness testing ensures Ra 0.2µm or better finish to protect mating shaft and housing surfaces.

Three-Level Quality System

Our built up quality control framework incorporates crude fabric review, in-process checking, and wrapped up item confirmation. Each item group experiences testing of 12 center execution pointers, accomplishing an ex-factory capability rate surpassing 99.9%.

Installation and Operational Considerations

Proper establishment requires solidified and ground shaft and lodging surfaces with fitting surface wrap up (Ra 0.4µm or way better). The raceway surfaces ought to keep up HRC 58-62 hardness for ideal execution and wear resistance.

Lubrication is basic for effective operation. High-quality bearing oil or suitable consistency oil guarantees legitimate film arrangement between rollers and raceways. The open plan encourages relubrication in benefit applications.

Temperature contemplations incorporate working ranges from -20°C to +120°C for standard applications. Higher temperatures require uncommon cage materials and grease determination.

Professional Support and Services

With 30 years of bearing industry experience, Luoyang Auto Bearing provides comprehensive technical support for your Caged Needle Roller Bearings K12X16X8 applications. Our engineering team offers installation guidance, raceway specification recommendations, and application-specific modifications.

We maintain extensive inventory for rapid delivery within 48 hours for standard orders. Custom configurations and special requirements receive dedicated engineering attention with shortened development cycles.

Quality documentation includes material certificates, dimensional reports, and performance test data for critical applications requiring full traceability.

For technical consultation or application-specific questions regarding your bearing requirements, contact our engineering team at auto@lyautobearing.com. Our experienced professionals provide prompt, accurate responses to ensure optimal bearing selection and implementation success.
