Angular Contact Ball Bearing 7008AC

Angular Contact Ball Bearing 7008AC - High-Speed Precision Solution

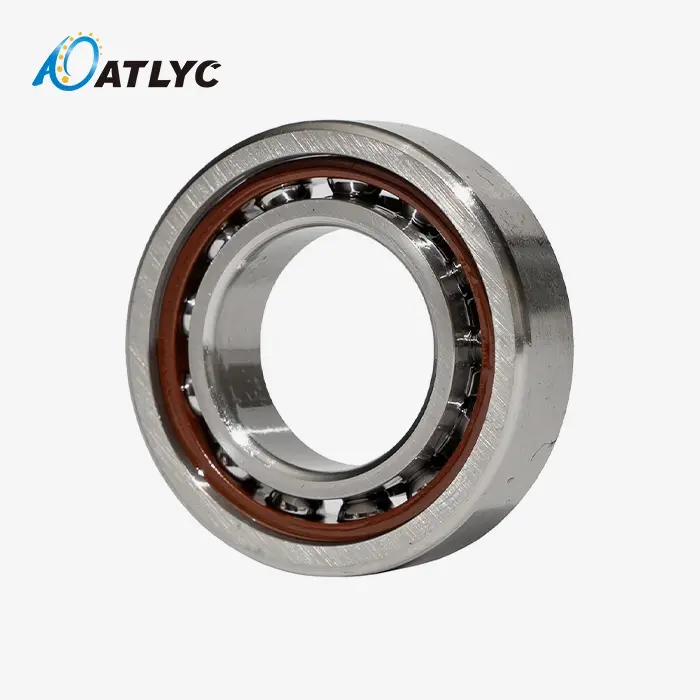

When you need reliable performance for machine tool spindles, centrifugal separators, or high-frequency motors, the Angular Contact Ball Bearing 7008AC delivers the optimal balance of speed and load capacity. This precision bearing features a 40mm bore diameter, 68mm outer diameter, and 15mm width with a 25-degree contact angle. The 7008AC addresses critical industry challenges where simultaneous radial and axial loads must be managed at high rotational speeds while maintaining sub-micron accuracy.

Understanding Angular Contact Ball Bearing Design

The 7008AC highlights raceways on the internal and external rings that are uprooted relative to each other along the bearing pivot. This special geometry makes the characteristic contact point that empowers the bearing to handle combined loads effectively.

The 25-degree contact point positions this bearing as the industry standard for flexible applications. Not at all like profound groove ball heading, this plan avoids pivotal relocation beneath stack, guaranteeing steady shaft execution in exactness machinery.

The bearing development incorporates high-carbon chromium steel rings (GCr15/52100) heat-treated to 60-64 HRC for ideal toughness. The cage fabric choices incorporate bakelite and nylon, each chosen for particular working conditions and vibration hosing requirements.

Performance Advantages

High-Speed Capability

The 25-degree contact point gives predominant speed execution compared to high-angle variations whereas keeping up way better hub stack capacity than low-angle plans. This adjust makes it reasonable for applications requiring both speed and rigidity.

Precision Control

Available in P5, P4, and P2 accuracy grades, these orientation meet ISO 492 and Commotion 620 guidelines for dimensional exactness and runout control. The accuracy fabricating guarantees reliable execution in basic applications.

Load Handling

The contact point plan empowers the bearing to back hub loads in one course whereas at the same time carrying spiral loads. When legitimately mounted in sets, they give bidirectional hub back with improved unbending nature.

Primary Applications

Machine Tool Spindles

In CNC machining centers, the Angular Contact Ball Bearing 7008AC is typically mounted in duplex arrangements (DB or DF configuration) to handle cutting forces and maintain spindle accuracy. The bearing design prevents deflection that could affect surface finish quality.

Centrifugal Equipment

High-speed separators and centrifuges benefit from the bearing's ability to maintain preload under varying G-forces. The design prevents ball skidding during rapid acceleration and deceleration cycles common in laboratory and industrial separation equipment.

Precision Motors

In HVAC systems and industrial drives operating above 3000 RPM, these bearings reduce noise and operating temperature while managing harmonic vibrations that can affect motor performance.

Mounting Configurations

Back-to-Back (DB)

This arrangement provides maximum rigidity and is ideal for applications with moment loads. The configuration spreads loads effectively and provides good resistance to shaft deflection.

Face-to-Face (DF)

This setup offers better accommodation of shaft expansion and is suitable for applications where thermal growth is a concern. It provides good axial guidance while allowing some flexibility.

Tandem (DT)

Multiple bearings arranged in the same direction increase axial load capacity. This configuration is used when high unidirectional axial loads must be supported.

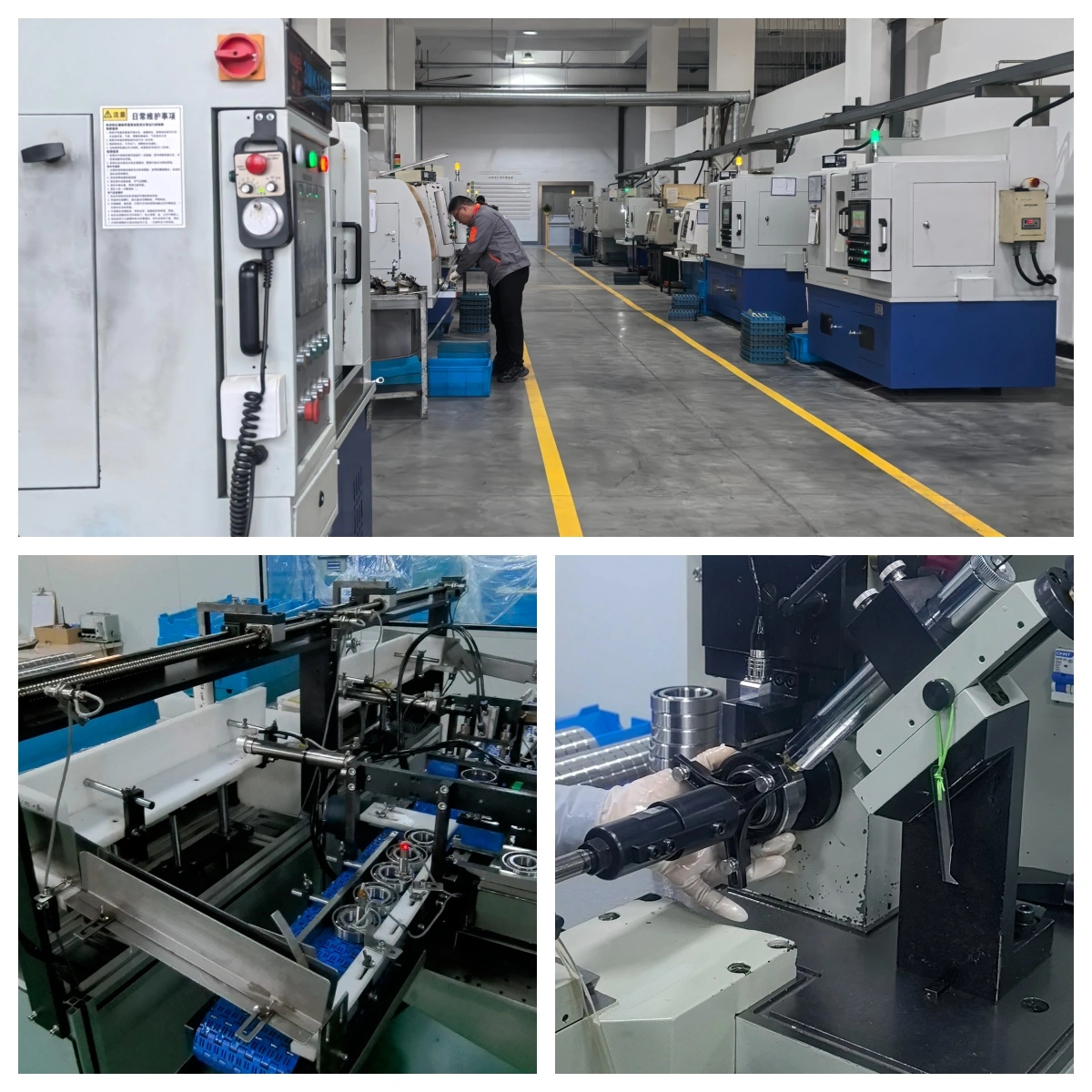

Quality and Manufacturing Standards

Our fabricating handle takes after strict quality control conventions with three-level assessment strategies. Each bearing experiences confirmation of 12 center execution markers counting vibration testing and life testing, accomplishing over 99.9% capability rate.

The orientation are delivered utilizing high-purity bearing steel with extraordinary warm treatment forms and exactness crushing innovation. This guarantees great wear resistance, high-temperature execution, and exactness maintenance all through the bearing life.

Why Choose Our 7008AC Bearings?

With 30 a long time of bearing industry involvement, we combine free generation capabilities with coordinates supply chain assets. Our comprehensive R&D and fabricating capabilities empower both standard generation and customized arrangements for particular requirements.

We keep up stock of over 1,000 bearing sorts, guaranteeing conveyance of customary orders inside 48 hours. For custom necessities, our optimized generation forms decrease conveyance time to 70% of industry normal, with commonplace conveyance inside 7 working days.

Our specialized bolster group gives around the world establishment direction, operation observing, and upkeep discussion. This comprehensive benefit approach guarantees ideal bearing execution all through its operational life.

Technical Support and Services

We offer complete bearing lifecycle management from selection through replacement. Our engineering team provides on-site mapping services for equipment adaptation, installation guidance, and performance optimization recommendations.

For complex applications requiring special specifications, our R&D team can develop customized solutions while maintaining compatibility with standard mounting practices. This flexibility ensures you receive bearings that meet exact application requirements.

The Angular Contact Ball Bearing 7008AC represents proven technology for demanding industrial applications where precision, speed, and reliability are essential. Contact our technical team at auto@lyautobearing.com for application-specific guidance and technical support.
