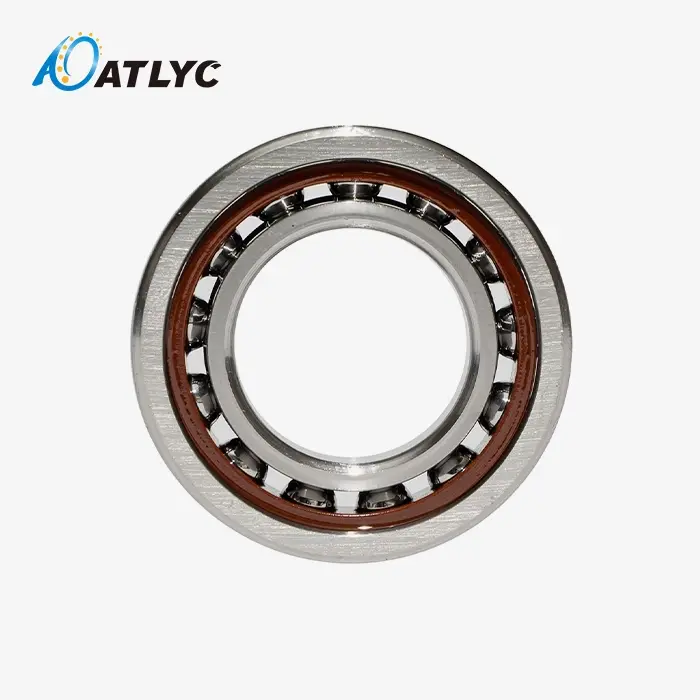

Angular Ball Bearing 7014AC - High-Precision Solution for Critical Applications

When your machinery demands exceptional precision and reliability under combined radial and axial loads, the Angular Ball Bearing 7014AC delivers proven performance across diverse industrial applications. This single-row angular contact bearing features a precisely engineered 25-degree contact angle, optimizing the balance between high-speed capability and substantial axial load capacity. The designation '70' indicates the light ISO dimension series, while '14' represents the 70mm bore diameter, and 'AC' specifies the 25-degree nominal contact angle that sets this bearing apart from standard alternatives.

Engineering Design and Performance Advantages

The item joins progressed designing standards to address basic execution necessities in exactness apparatus. The 25-degree contact point speaks to an ideal compromise between the high-speed characteristics of 15-degree heading and the overwhelming hub stack capacity of 40-degree variants.

Structural Configuration

This bearing highlights raceways uprooted relative to each other along the bearing pivot, making the characteristic contact point. This plan empowers concurrent back of outspread loads and unidirectional hub loads, making it basic for applications where shaft situating precision is critical.

The precision-ground GCr15 bearing steel gives remarkable dimensional soundness and wear resistance. Accessible cage materials incorporate phenolic gum (Bakelite) for high-temperature applications and nylon for standard working conditions, each chosen to optimize execution characteristics.

Operational Benefits

The 25-degree contact angle configuration delivers several key advantages:

• Enhanced axial stiffness compared to deep groove ball bearings
• Reduced thermal generation at high rotational speeds
• Superior runout control for precision applications
• Extended service life under combined loading conditions

Application Engineering

Machine Tool Spindles

In CNC machining centers, the product serves as the backbone of spindle systems. Mounted in back-to-back (DB) configurations, these bearings provide the axial rigidity necessary to resist cutting forces while maintaining thermal stability during high-speed operations.

Precision Manufacturing Equipment

The bearing's ability to maintain consistent performance under varying load conditions makes it ideal for automated manufacturing systems where positional accuracy directly impacts product quality.

Industrial Pumps and Compressors

High-speed fluid machinery benefits from the 7014AC's capacity to handle thrust loads generated by fluid pressure while operating at elevated speeds with minimal lubrication.

Quality Assurance and Manufacturing Excellence

Our 30-year commitment to bearing manufacturing excellence ensures every Angular Ball Bearing 7014AC meets stringent quality standards. Each bearing undergoes comprehensive testing including vibration analysis, dimensional verification, and life cycle validation.

Manufacturing Standards

• Raw material inspection ensures steel quality consistency
• In-process monitoring maintains dimensional accuracy
• Final inspection verifies all performance parameters
• Quality certification documents compliance with ISO standards

Precision Classes Available

• P5 Grade: Standard precision for general industrial applications
• P4 Grade: High precision for demanding spindle applications
• P2 Grade: Ultra-precision for critical positioning systems

Installation and Configuration Guidelines

Mounting Requirements

Angular contact bearings require paired installation to manage induced axial forces. The most common configuration is back-to-back (DB) mounting, which provides:

• Bidirectional axial support
• Enhanced moment load capacity
• Improved shaft guidance accuracy
• Optimal load distribution

Preload Considerations

Proper preload selection ensures optimal bearing performance:

• Light preload: Recommended for high-speed applications
• Medium preload: Standard for balanced speed/rigidity requirements
• Heavy preload: Suitable for maximum stiffness applications

Supply Chain and Delivery Excellence

Our comprehensive inventory management system maintains stock of over 1,000 bearing types, enabling rapid response to your requirements. Standard product units ship within 48 hours for immediate needs, while customized specifications complete production within industry-leading timeframes.

OEM Customization Services

We support specialized requirements including:

• Modified internal clearances
• Special cage materials
• Custom lubrication specifications
• Application-specific heat treatment

Technical Support and Engineering Services

Our experienced engineering team provides comprehensive support throughout your bearing selection and implementation process. From initial specification review to installation guidance and performance optimization, we ensure your Angular Ball Bearing 7014AC application achieves maximum operational efficiency.

For detailed technical consultation and application-specific recommendations, contact our engineering team at auto@lyautobearing.com. Our expertise in precision bearing applications helps you achieve optimal performance and reliability in your critical machinery systems.
