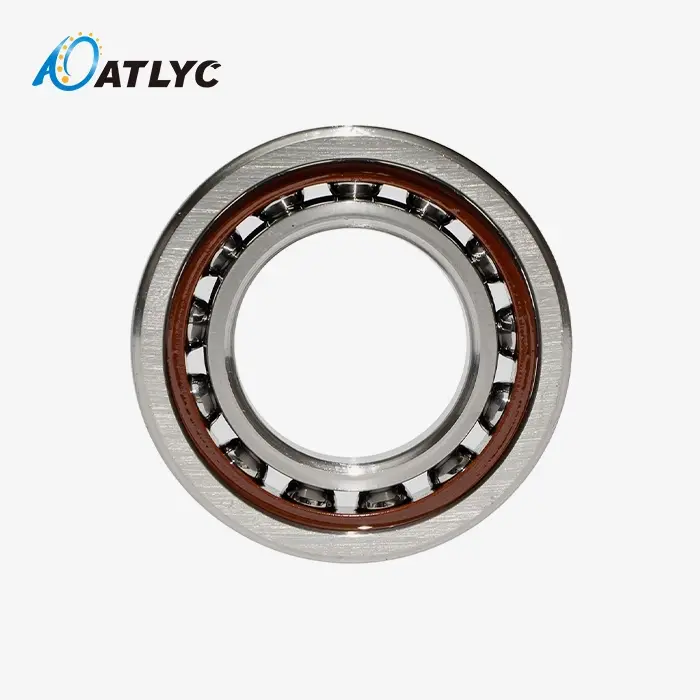

Angular Contact Ball Bearing 70 series

Angular Contact Ball Bearing 70 Series - High-Speed Precision Solutions

When you require dependable orientation for high-speed applications with exact stack taking care of, the Angular Contact Ball Bearing 70 series conveys uncommon execution. These specialized heading combine compact plan with predominant speed capability, making them the industry standard for machine device shafts, high-frequency engines, and exactness apparatus. Our 70 arrangement heading include optimized contact points and lightweight development that fathom basic challenges in space-constrained, high-precision applications where warm solidness and rotational exactness are essential.

What Are Angular Contact Ball Bearing 70 Series?

The item speaks to a specialized subset of single-row precise contact ball heading that take after ISO Measurement Arrangement 10 determinations. These orientation highlight uprooted raceways in both internal and external rings, empowering them to handle noteworthy combined outspread and hub loads simultaneously.

The key refinement of the 70 arrangement lies in its lighter cross-section compared to heavier options like 72 or 73 arrangement orientation. This plan addresses the essential struggle between basic unbending nature and confined plan envelopes in cutting edge apparatus.

Design Structure and Working Principle

The bearing structure consists of:

• Inner and outer rings with precisely machined raceways
• Steel or ceramic balls arranged at specific contact angles
• High-performance cages (typically phenolic resin or PEEK)
• Optional seals for contamination protection

The working principle centers on the angular contact between balls and raceways. This configuration allows load distribution across both radial and axial directions, while the optimized ball-to-raceway geometry minimizes friction and heat generation during high-speed rotation.

Performance Advantages

Superior High-Speed Capability

The lighter cross-section design reduces centrifugal forces, enabling 20-30% higher operational speeds compared to heavier bearing series. This characteristic proves crucial for machine tool spindles operating above 15,000 RPM.

Flexible Contact Angle Options

• 15° contact angle: Optimized for high-speed, light axial load applications
• 25° contact angle: Balanced performance for moderate speeds with higher axial loads
• 40° contact angle: Maximum axial load capacity for heavy-duty applications

Enhanced Precision and Rigidity

When properly preloaded, these bearings provide exceptional stiffness that minimizes deflection under cutting loads. The precision grades (P4/P2) ensure minimal run-out for superior machining accuracy.

Thermal Stability

The optimized internal geometry and material selection result in lower operating temperatures, essential for maintaining dimensional stability in precision applications.

Primary Applications

The Angular Contact Ball Bearing 70 series excels in demanding applications including:

• Machine tool spindles: Providing the rigidity and precision required for high-speed machining
• High-frequency motors: Supporting rapid rotation with minimal vibration
• Gas turbines: Handling combined loads in high-temperature environments
• Centrifugal separators: Managing high centrifugal forces and speeds
• Automotive components: Front wheel hubs and differential pinion shafts
• Printing machinery: Ensuring smooth, precise paper handling mechanisms

Mounting Configurations

DB (Back-to-Back) Configuration

Provides maximum rigidity and moment load capacity. Ideal for machine tool spindles requiring high stiffness.

DF (Face-to-Face) Configuration

Offers good axial load distribution in both directions. Suitable for applications with varying load directions.

DT (Tandem) Configuration

Maximizes axial load capacity in one direction. Perfect for applications with predominantly unidirectional axial forces.

Quality Control and Manufacturing Excellence

Our manufacturing process incorporates:

Advanced Materials

• High-purity GCr15 bearing steel for extended service life
• Special heat treatment processes ensuring optimal hardness distribution
• Precision grinding technology achieving surface roughness below Ra 0.02μm

Rigorous Testing

Each bearing undergoes comprehensive testing including:

• Dimensional verification to ISO 492 standards
• Vibration testing for noise control
• Load capacity validation
• Temperature resistance evaluation

Quality Assurance

Our three-level quality control system ensures:

• Raw material inspection and certification
• In-process monitoring at critical manufacturing stages
• Final inspection with 12 core performance indicators
• Ex-factory qualification rate exceeding 99.9%

Why Choose Our Angular Contact Ball Bearing 70 Series?

30 Years of Industry Experience

Our three decades of bearing manufacturing expertise ensures deep understanding of application requirements and quality standards. We combine independent production capabilities with integrated supply chain resources to meet diverse customer needs efficiently.

Comprehensive Customization Support

Beyond standard specifications, we provide:

• Non-standard size customization
• Special material options
• Modified cage designs
• Custom preload specifications
• Application-specific modifications

Fast Delivery and Support

• Standard products: 48-hour delivery from stock
• Custom bearings: 70% faster than industry average
• Technical support throughout the bearing lifecycle
• Global installation and maintenance services

Technical Support Services

Application Engineering

Our technical team provides:

• Load calculation and bearing selection guidance
• Mounting and preload recommendations
• Lubrication specification assistance
• Vibration and noise optimization consulting

Installation and Maintenance

• On-site installation supervision
• Proper mounting technique training
• Condition monitoring setup
• Preventive maintenance scheduling

Contact Information

For technical specifications, custom requirements, or application support regarding Angular Contact Ball Bearing 70 series, contact our engineering team at auto@lyautobearing.com. Our specialists provide comprehensive assistance from initial bearing selection through long-term maintenance planning.

Experience the precision and reliability that three decades of bearing manufacturing excellence delivers. Choose our 70 series bearings for your critical high-speed applications and benefit from industry-leading performance, quality, and support.
