Tapered Roller Bearing Load Capacity Explained

To make good Tapered Roller Bearing choices about buying bearings, you need to know how much weight they can hold. Every day at ATLYC (Luoyang Auto Bearing Co., Ltd.), we work with purchasing managers and engineers who want to know more about how these precise parts handle combined forces in tough industrial settings. Load capacity is a very important factor for OEMs, wholesalers, and producers in the automobile, heavy machinery, and automation industries because it decides how efficiently your equipment works and whether it breaks down early. This guide takes complicated engineering ideas and turns them into useful buying information. It will help you choose bearings that are good value for money and meet ISO 9001 and IATF 16949 standards. We've been making specialized goods for 15 years, and we've sold them all over the world, including in the US, Germany, and South Korea. During that time, we've seen how knowing the right load capacity can make tools more reliable and lower the total cost of ownership.

Understanding Tapered Roller Bearing Load Capacity

Load capacity is the maximum weight that a bearing can hold without breaking and still retaining its structural integrity. In industrial settings, this number has a direct effect on how safe operations are, how long equipment is up and running, and how often it needs to be serviced. When procurement pros are looking at providers, knowing these basics can help them avoid making costly mistakes in the specifications that cause problems in the field.

Dynamic Load Capacity: Performance Under Motion

The dynamic load capacity (C) of a bearing shows how well it can handle forces while it is rotating continuously. ISO 281 standards say that this number tells you how long the part will work before it breaks because of material wear. Dynamic capacity tells you if your machinery will reach the projected L10 service life when it's running at normal speeds and loads. This is the point where 90% of bearings in a community are still working. When doing the math, the size, number, contact angle, and strength of the object are all taken into account. When the dynamic grade is higher, it means that the bearing can handle more force when it is rotating. At ATLYC, we've optimized the roller profiles and cage designs in our 32 series configurations to get the most dynamic capacity without making the overall sizes bigger. This is because current equipment designs often have to deal with limited space.

Static Load Capacity: Strength at Rest

The static load capacity (C0) tells you how much force the bearing can handle when it is still or moving back and forth very slowly. In heavy industry settings, this grade is very important during start-up, shutdown, or shock loading situations. When static capacity is exceeded, raceways and wheels become permanently deformed, which causes noise, shaking, and a shorter service life. The relationship between static and dynamic capacity changes depending on the type of bearing. Our Tapered Roller Bearing setups usually have static ratings that are 50–70% of their dynamic values. This is because the line contact geometry spreads out static loads over a bigger surface area. Because of this, they can be used in situations where there are temporary heavy loads and times of working rotation.

Key Factors Influencing Load Capacity

Several design factors have a direct effect on how well the load capacity works. The contact angle, which is the angle between the load line and a plane that is perpendicular to the bearing axis, has a big effect on how well the radial and axial loads are balanced. Axial loads are better off with larger angles, while radial loads are better off with smaller angles. Our 32 series has contact angles that range from 12° to 16°, which makes it perfect for medium-duty jobs that need to control loads evenly. The choice of material is also very important. We use high-purity bearing steel (usually GCr15 or a similar AISI 52100) that has been through special heat treatment processes to make it 58 to 62 HRC hard. This metalworking method makes sure that the load is evenly spread across the roller surfaces of the Tapered Roller Bearing and that the dimensions stay stable even when the temperature changes, which is common in industry and automobile settings.

Technical Specifications and Standards for Load Capacity

Industry standards give people from different areas and producers a way to talk about how well their bearings work. These rules make sure that buying teams judge goods based on their consistent technical basis instead of what the marketing claims say.

Critical Design Parameters

The curve angle is the most important factor in determining the load capacity. This angle, which is made between the roller axis and the middle of the bearing, makes the cone shape that can handle both horizontal and axial loads at the same time. ATLYC's engineering team carefully monitors this factor during production to make sure that every Tapered Roller Bearing meets the stated load values and has enough safety margins for tough B2B uses. The length and width of the rollers have a direct effect on the contact surface and stress distribution. Longer rollers spread loads over a larger surface area, which increases capacity but needs to be aligned perfectly. The 32 series strikes a balance between these factors by providing roller lengths that work best with common housing designs found in differentials for cars, industrial gears, and material handling equipment.

Interpreting Manufacturer Catalogs

To read technical listings well, you need to know how the scores listed apply to real-world situations. The basic dynamic load rate (C) is given in newtons or kilonewtons and is the load that 90% of bearings can handle for one million rotations before they break from wear and tear. The basic static load number (C0) tells you the highest fixed load that will permanently deform the roller diameter by 0.0001 times its diameter. This is a level that balances the life of the part with the stresses that it will be under in real-world use. At ATLYC, our product specs include equivalent dynamic load (P) estimates that help you figure out if a bearing can handle the radial and axial loads you have. These numbers take into account application factors like shock loads, misalignment, and changes in operating temperature that are typical in industry settings. During the quote process, our technical team helps you with these figures to make sure you choose options that work with your equipment.

Comparing Load Capacities: Tapered Roller Bearing vs Other Bearings

To choose the best type of bearing, you need to know how the different styles handle load capacity needs. Each setup has its own benefits that make it better for a certain type of application.

Tapered Roller Bearings vs Ball Bearings

The main change is in the shape of the junction. Ball bearings use point contact between raceways and circular elements, which means that the load is spread out over a smaller area. This design works great for high-speed tasks with light loads, but it quickly hits its limits when big forces are applied. Line contact is used in Tapered Roller Bearing configurations to spread the same loads over much bigger areas, providing 30–50% more load capability in the same envelope measurements. In situations where both horizontal and axial loads are present, like in wheel hubs, transmissions, and machine tool frames, tapered rollers work better. Our 32-series's separable design lets you precisely change the preload, which makes the internal openings best suited for different load Tapered Roller Bearing patterns. Ball bearings can't be adjusted in this way, so you have to be very careful when choosing a set clearance class that might not work in real life.

Cylindrical and Spherical Roller Comparisons

Cylindrical roller bearings can handle a lot of radial load but not much axial load, so they are good for uses with only radial loads, like electric motors and conveyor systems. Because their wheels are shaped like barrels, spherical roller bearings can handle a lot of misalignment. However, they create rolling friction that lowers efficiency and raises heat production. Our tapered roller 32 series can handle some imbalance while still rolling efficiently and carrying a total load of up to 32 tons. Material and surface treatment have a big effect on the capacity of all types of bearings. ATLYC's precision grinding technology can get surface finishes as smooth as 0.2 μm Ra, which reduces stress concentrations and increases wear life. When combined with our own special heat treatment methods, these production methods give steady performance that meets the quality standards of OEM partnerships and aftermarket distributors that serve important industrial uses.

Procurement Considerations for Optimizing Load Capacity Use

To choose the right bearings, you need to match the technical Tapered Roller Bearing specs to the needs of the application and look at the skills of the seller to make sure consistent quality and on-time delivery.

Matching Load Requirements to Technical Specifications

Use the formula P = XFr + YFa to find the comparable loads. Here, Fr stands for the radial load, Fa for the axial load, and X and Y are factors that are based on the bearing's contact angle and load ratio. This estimate tells you if the forces in your application are within the stated capacity of a bearing with enough safety margins. For applications that need to last 10,000 hours or more, we suggest keeping real loads at 60 to 70% of maximum capacity. The 32 series versions, which include the 320xx, 322xx, 323xx, and 329xx models, can handle loads ranging from light to heavy. In our technical paperwork, you can find full load rating tables that make it easy to match exact specifications. During the quotation process, telling our engineering team about the real working conditions lets them suggest the best configurations, which could save you money by making the right size choices.

Conclusion

FAQ

1. What is the difference between dynamic and static load capacity?

The dynamic load capacity of a bearing tells you how much force it can handle while it is rotating, which helps you guess how long it will last in continuous use. The static load capacity tells you how much force can be applied when the object is still or very slowly moving without permanently deforming it. Dynamic rates are most important for applications that involve spinning, while equipment that starts and stops a lot or is subject to shock loads needs to have enough static capacity. Both grades can be found in bearing lists and need to be taken into account when matching parts to conditions of use.

2. How do I calculate the appropriate load capacity for my application?

Use the equivalent load formula, which is P = XFr + YFa. Here, Fr is the radial force, Fa is the axial force, and X and Y are bearing-specific factors taken from catalogs of manufacturers. Check the basic dynamic load rate (C) of the bearing against the estimated equivalent load (P). Using the ISO 281 life formula, the number C/P helps figure out how long a service is likely to last. For normal industrial uses, keeping loads at 60–70% of maximum capacity gives you safety gaps. During the quotation process, ATLYC's expert team helps with these figures.

3. Can I use tapered roller bearings from different manufacturers interchangeably?

ISO and DIN standards make sure that standard bearing types can be used with different brands because their dimensions are the same. But load rates, internal shapes, and material specs may be different between brands, which can affect how well they work and how long they last. When replacing bearings, make sure that the load capacities meet or go beyond the original specs and that they can be used with the same type of oil. It is not a good idea to mix parts (like cups and cones) from different makers because the shape might not match up correctly, which could change how the load is distributed.

Partner with ATLYC: Your Trusted Tapered Roller Bearing Manufacturer

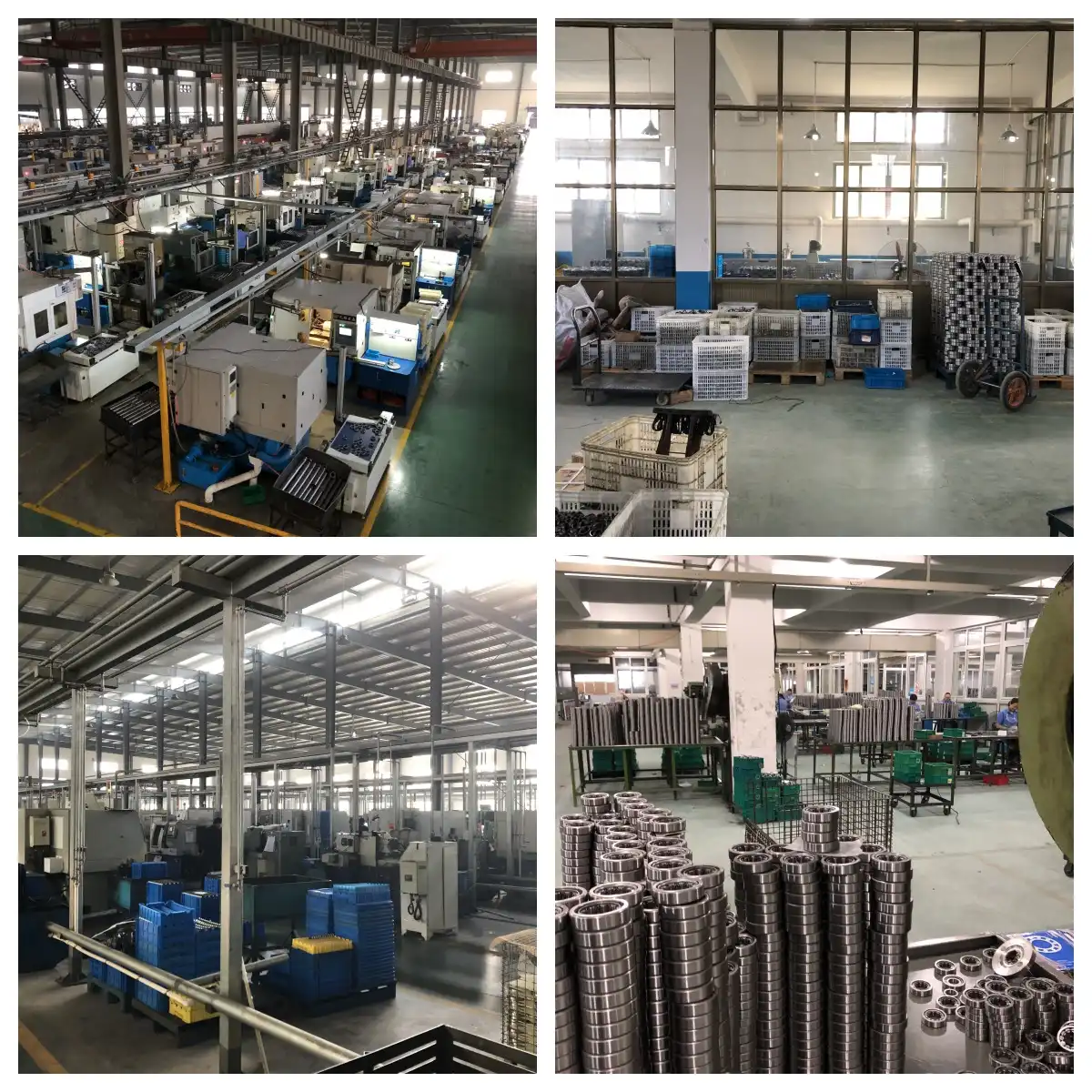

Choosing the right bearing source will have an effect on the efficiency of Tapered Roller Bearing production for many years to come. ATLYC has been making specialized parts for 15 years and has quality systems that are ISO 9001 and IATF 16949 certified. The precise parts they make meet world standards. Our 32 series tapered roller bearing configurations can handle combined loads in automation, industrial machinery, and automobile uses. You can get full expert help during the whole buying process. We work with OEMs, distributors, and makers who need flexible supply partnerships because we can make both standard catalog items and unique specs. Our dedication to consistent quality and reliable service is shown by the fact that we have customers in South Korea, the US, Germany, Russia, Iran, and Turkey, among other places. Get in touch with our engineering team at auto@lyautobearing.com to talk about your unique load capacity needs and find out how ATLYC's manufacturing skills can help you reach your operational goals.

References

1. Harris, T.A. & Kotzalas, M.N. (2006). Advanced Concepts of Bearing Technology: Rolling Bearing Analysis (5th ed.). CRC Press.

2. International Organization for Standardization (2007). ISO 281:2007 Rolling Bearings — Dynamic Load Ratings and Rating Life. Geneva: ISO.

3. Deutsches Institut für Normung (2011). DIN 720: Rolling Bearings — Tapered Roller Bearings — Boundary Dimensions. Berlin: DIN.

4. Eschmann, P., Hasbargen, L., & Weigand, K. (1985). Ball and Roller Bearings: Theory, Design and Application (2nd ed.). John Wiley & Sons.

5. American Bearing Manufacturers Association (2015). ANSI/ABMA 19.1: Tapered Roller Bearings - Radial - Metric Design. Washington: ABMA.

6. Tallian, T.E. (1992). Simplified Contact Fatigue Life Prediction Model — Part I: Review of Published Models. Journal of Tribology, 114(2), 207-213.
