Which Industries Use ZKLDF Rotary Table Bearing Most?

When high-speed rotation and heavy loads are combined in the same machine, the ZKLDF Rotary Table Bearing is the type of bearing that is used most often in precision manufacturing. Because it was designed to work with tough machine tools, this bearing has fixing holes built right into it, so it doesn't need the complicated housings that other bearing systems do. Because Luoyang Auto Bearing Co., Ltd. has sold this type of bearing to so many different makers over the years, it's easy to see where stiffness, accuracy, and speed are most important. We'll talk about the tech behind the ZKLDF, the businesses that count on it, and what buyers should think about before they order one for their own gear.

Understanding the ZKLDF Rotary Table Bearing Design and Working Principle

Before exploring industry applications, it helps to understand what sets this bearing apart structurally from more conventional combined-bearing arrangements.

Integrated Mounting and L-Shaped Outer Ring Structure

A ZKLDF Rotary Table Bearing has an outer ring that is made of a single piece and has an L-shaped cross-section. This design choice lets the bearing attach directly to other machine parts without the need for clamping rings or housings. This combined mounting method makes the building process a lot easier and lowers the number of accuracy stack-up mistakes that happen when installing multiple parts of a bearing. This means that machine builders have fewer parts to find, line, and check, which cuts down on both the time it takes to plan and the time it takes to put the machine together on the production floor.

Back-to-Back O-Configuration and 60° Contact Angle

A ZKLDF Rotary Table Bearing has a two-piece inner ring system with two ball-and-cage arrangements placed back-to-back in an O shape. This makes a 60° contact angle between the raceways. This shape was chosen so that it can handle loads coming from multiple directions at the same time, without favouring one direction over another. When compared to lower-angle options, the wider contact angle makes the bearing much more resistant to tilting moments. This is very important in situations where cutting forces or off-center loading happen often during operation.

Load Distribution and Combined Load Capacity

A ZKLDF Rotary Table Bearing is really useful in a lot of different fields because it can handle axial, radial, and turning moment loads all through a single part. The double-row precision contact arrangement spreads the load across many rolling elements rather than concentrating it on a few contact points. This keeps the structure strong even when cutting forces are applied dynamically. This type of bearing has a high combined load capacity, which is why many precision production industries use it for spinning axes that require several different types of bearings to work together.

Which Industries Rely on ZKLDF Rotary Table Bearing Most?

With the structural advantages established, it becomes easier to see why certain sectors have gravitated toward this bearing type more than others.

Machine Tool and CNC Manufacturing

People who use machine tools the most and most often are the ones who use the ZKLDF Rotary Table Bearing. The joint load capacity of the bearing is important for keeping the positioning accuracy of rotary tables, turning spindle heads, and multi-axis machine centers when cutting aggressively. Because CNC makers often run machines nonstop across multiple shifts, the bearing's high speed and temperature stability directly support the flow these tasks need. This makes it a perfect choice for situations where precision and continuous duty cycles meet.

Aerospace and Precision Instrument Manufacturing

Aerospace component manufacturing demands extremely tight tolerances, and the rotary tables used to machine turbine components, structural parts, and precision fixtures often rely on a ZKLDF Rotary Table Bearing to hold that accuracy under combined loading. Precision instrument manufacturers face similar requirements, where even minor deflection under load can compromise the accuracy of finished measuring or optical equipment. In both fields, the bearing's rigidity and dimensional stability under speed make it a dependable choice for equipment where tolerance failures carry a high cost.

Robotics, Automation, and Rotary Indexing Equipment

Automated production systems increasingly incorporate rotary indexing tables and robotic positioning platforms that benefit from the same combined load handling that machine tools require. A ZKLDF Rotary Table Bearing supports these applications well because it accommodates the axial, radial, and moment loads generated by rapid indexing cycles without the added footprint of a multi-bearing assembly. As factories continue automating assembly and inspection processes, this bearing type has become increasingly common in equipment designed for fast, repeatable rotational positioning.

Why Different Industries Choose ZKLDF Rotary Table Bearing Over Alternatives

Understanding why so many sectors converge on the same bearing type requires looking at the practical advantages it offers over more conventional combined-bearing setups.

Superior Speed Capability for High-Throughput Production

Precision-ground raceways and optimized ball geometry reduce friction and heat generation within a ZKLDF Rotary Table Bearing, enabling continuous high-speed operation while maintaining dimensional stability. This thermal behavior prevents the speed-related distortion that can compromise machining accuracy on equipment running long, uninterrupted production cycles. For industries where machine uptime directly affects output volume, this speed capability is often the deciding factor in bearing selection.

Simplified Installation Reduces Downtime

Direct mounting capability streamlines equipment assembly considerably, since the integrated mounting holes provide secure attachment without requiring extra components. This reduces installation time during initial equipment build and, just as importantly, shortens downtime during bearing replacement or maintenance later in the equipment's service life. Manufacturers running tight production schedules particularly value how a ZKLDF Rotary Table Bearing eliminates the alignment issues that traditionally accompany multi-component bearing installations.

Maintenance Accessibility for Continuous Operations

Built-in lubrication ports make ongoing maintenance considerably more accessible across a ZKLDF Rotary Table Bearing's service life. The outer ring features standardized lubrication points that allow precise grease delivery directly to critical contact zones, extending operational life without requiring disassembly. For industries running continuous or near-continuous operations, such as automotive production or high-volume machining, this maintenance accessibility directly supports the reliability these environments demand.

Selecting and Maintaining a ZKLDF Rotary Table Bearing for Industrial Use

Choosing the right configuration and caring for it properly determines whether the bearing delivers the performance these industries expect from it.

Matching Preload and Accuracy Grade to Application

Preload and accuracy grade should be selected based on actual operating conditions rather than defaulted to a generic mid-range specification. A ZKLDF Rotary Table Bearing intended for aerospace-grade precision work requires different preload characteristics than one destined for general automation equipment, since the balance between rigidity and rotational smoothness shifts depending on load profile and expected speed. Engineers should work from real application data — expected RPM, load direction, and duty cycle — to specify a configuration matched to the equipment rather than one that simply fits on paper.

Lubrication and Service Life Considerations

Consistent lubrication is essential to realizing the full service life a ZKLDF Rotary Table Bearing is designed to deliver. Taking advantage of the built-in lubrication ports with a regular relubrication schedule, rather than a single application at installation, helps preserve the low-friction performance engineered into the raceway and ball geometry. Industries running continuous production cycles in particular benefit from establishing a maintenance interval based on actual operating hours rather than a generic calendar schedule.

Installation Best Practices for Rigid Mounting

Even a well-specified ZKLDF Rotary Table Bearing underperforms without careful installation. Verifying squareness during mounting, following the manufacturer's torque specifications, and avoiding contamination during assembly all contribute directly to achieving the rated load capacity and rotational accuracy the bearing was engineered to provide. Because the integrated mounting design eliminates several traditional alignment steps, installers should still confirm mating surface flatness before final tightening to avoid introducing stress into the bearing structure.

Conclusion

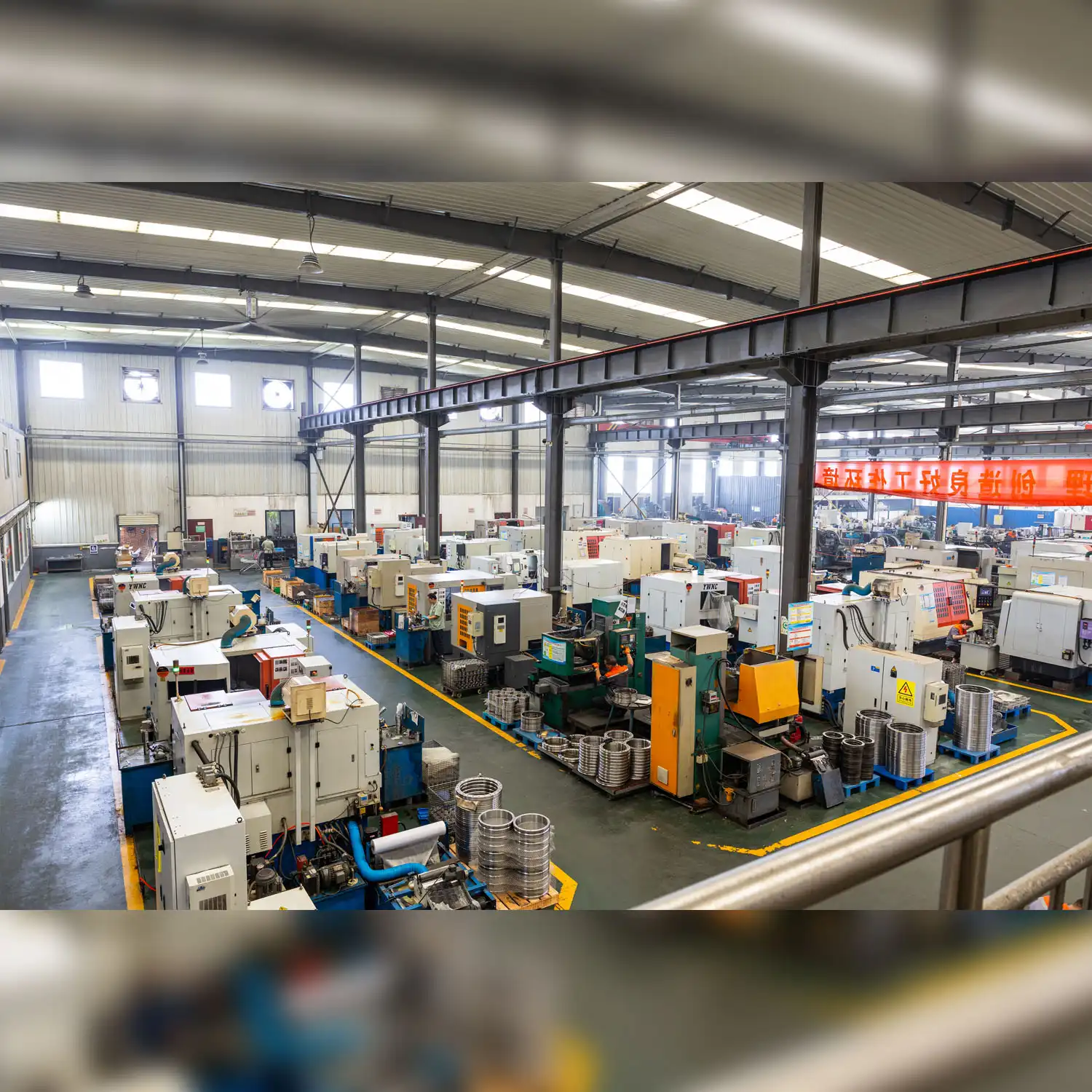

The ZKLDF Rotary Table Bearing is used in many fields, from CNC machine tools to robots and aircraft, because it can handle a lot of weight, keep its speed stable, and be easily installed. Luoyang Auto Bearing Co., Ltd. has been in business since 2010 and has become a reliable manufacturer that sells to South Korea, the US, Germany, Russia, Iran, and Turkey, among other places. They are certified by ISO 9001 and IATF 16949. Our team of 120 skilled workers in six specialised workshops is ready to help you choose the right rotary table bearing for your business.

FAQ

Q1: What industries use the ZKLDF Rotary Table Bearing most?

Machine tool and CNC manufacturing lead adoption, followed closely by aerospace, precision instruments, robotics, and automation equipment.

Q2: What makes the ZKLDF different from standard combined bearings?

Its L-shaped outer ring and back-to-back O-configuration integrate mounting capability directly into the bearing structure, eliminating separate housings.

Q3: Can a ZKLDF Rotary Table Bearing handle high-speed operation?

Yes, precision-ground raceways and optimized ball geometry reduce friction and heat, supporting continuous high-speed use.

Q4: How is a ZKLDF bearing maintained?

Built-in lubrication ports allow direct grease delivery to contact zones, simplifying maintenance without disassembly.

Q5: How do I choose the right ZKLDF configuration for my equipment?

Preload and accuracy grade should match your actual RPM, load direction, and duty cycle rather than a generic specification.

Contact Us

Ready to specify the right ZKLDF Rotary Table Bearing for your industry's equipment? Luoyang Auto Bearing Co., Ltd. combines 15 years of manufacturing experience with ISO 9001 and IATF 16949 certified quality systems to support your project from initial specification through delivery. Our engineering team can help you match preload, accuracy grade, and mounting configuration to your application's real operating conditions. Send your requirements to auto@lyautobearing.com, and let's discuss the right rotary table bearing solution for your production line together.
