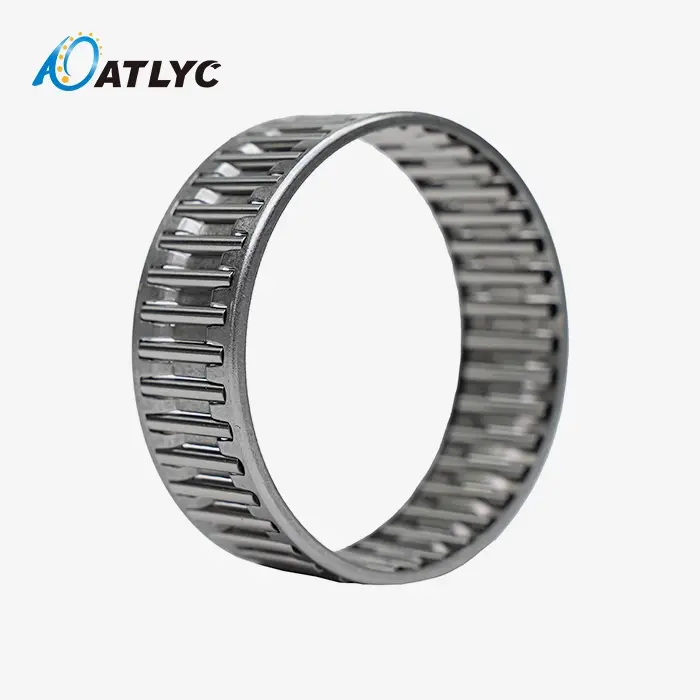

K Series Needle Roller Bearing

K Series Needle Roller Bearing - Professional Industrial Solution

When your apparatus requests greatest execution in negligible space, the K Series Needle Roller Bearing conveys remarkable designing esteem. These spiral needle roller and cage gatherings speak to the most space-efficient bearing arrangement for high-load applications. Our item kills internal and external rings, giving coordinate shaft-to-housing contact whereas keeping up predominant stack capacity. Designed for car transmissions, cruiser motors, and overwhelming apparatus applications, these orientation unravel basic space limitations without compromising execution. Believe our 30 a long time of bearing ability to optimize your gear productivity.

What is K Series Needle Roller Bearing?

The product is a specialized radial bearing assembly consisting only of high-precision needle rollers and a guiding cage. This design eliminates traditional inner and outer rings, creating the most compact bearing configuration possible.

Core Design Principles

The bearing operates on a simple yet effective principle. Needle rollers distribute loads directly between the shaft and housing bore surfaces. The cage maintains precise roller spacing and prevents contact between adjacent rollers during operation.

This configuration offers several mechanical advantages:

• Minimal radial space requirement: Overall height equals needle roller diameter
• Maximum load capacity per unit space: High roller-to-bearing ratio
• Direct load transmission: No ring deflection affects load distribution

Standard Compliance

Our K Series bearings meet DIN 5405-1 and ISO 3030 international standards. This ensures dimensional accuracy and interchangeability across global applications.

Construction and Working Principle

Needle Roller Design

Each needle roller undergoes precision grinding to achieve optimal surface finish. The length-to-diameter ratio typically ranges from 3:1 to 10:1, maximizing contact area while maintaining structural integrity.

The rollers feature:

• Crowned ends: Reduce edge stress concentration
• Through-hardened construction: Uniform hardness distribution
• Ground surface finish: Enhanced fatigue life

Cage Engineering

Steel stamped cages provide robust roller guidance under high loads. PA66 cages offer improved noise dampening and chemical resistance for specific applications.

Cage functions include:

• Maintaining roller spacing during operation
• Facilitating lubrication distribution
• Preventing roller skewing under load

Performance Advantages

Space Optimization

The K Series design achieves 40-60% space reduction compared to conventional bearings. This allows larger shaft diameters within existing housing constraints, improving overall system stiffness.

Load Distribution

Direct roller-to-raceway contact eliminates ring compliance effects. This results in more uniform load distribution and higher effective load capacity.

Reduced Friction

Point contact between cylindrical rollers and raceways minimizes rolling resistance. This translates to improved mechanical efficiency and reduced heat generation.

Primary Applications

Automotive Transmission Systems

In manual gearboxes and planetary gear sets, these bearings handle high centrifugal forces and shock loads. The compact design allows optimal gear tooth engagement while supporting transmission shafts.

Operating conditions include:

• High rotational speeds (up to 15,000 RPM)
• Limited lubrication environments
• Temperature cycling from ambient to 120°C

Motorcycle Engine Components

Connecting rod applications demand exceptional shock load resistance. The bearings withstand combustion forces while operating in boundary lubrication conditions.

Critical requirements:

• Oscillating motion capability
• High-temperature operation
• Contamination resistance

Industrial Machinery

Heavy construction equipment and hydraulic systems utilize these K Series Needle Roller Bearings for pump assemblies and gear drives. The open design facilitates continuous oil flow for cooling and contamination removal.

Installation Guidelines

Shaft and Housing Preparation

Surface hardness must reach minimum HRC 58-62 for adequate raceway durability. Surface roughness should not exceed Ra 0.4 μm to prevent premature wear.

Dimensional tolerances follow ISO 286 standards:

• Shaft tolerance: h6 to k6
• Housing tolerance: H6 to H7

Assembly Procedures

Proper installation prevents roller damage and ensures optimal performance:

1. Clean all components thoroughly before assembly
2. Apply thin lubricant film to shaft and housing surfaces
3. Insert bearing assembly carefully to avoid roller displacement
4. Verify proper cage clearance after installation

Quality Control and Testing

Our comprehensive quality system ensures consistent product performance through multiple inspection stages.

Material Verification

All bearing steel undergoes chemical composition analysis and hardness testing. Heat treatment processes achieve optimal core hardness and surface integrity.

Dimensional Inspection

Automated measurement systems verify:

• Needle roller diameter and length tolerance
• Cage pocket dimensions
• Overall assembly geometry

Performance Testing

Sample bearings undergo accelerated life testing under controlled conditions. This validates load capacity and fatigue life calculations.

Custom Engineering Solutions

Our engineering team provides custom K Series solutions for unique application requirements. This includes modified cage materials, special lubrication provisions, and non-standard dimensions.

Design Consultation

Working closely with your engineering team, we analyze operating conditions to optimize bearing selection. This ensures maximum performance and service life for your specific application.

Prototype Development

We offer rapid prototyping services to validate custom designs before full production. This reduces development time and ensures compatibility with your equipment.

Contact Information

For technical specifications, custom engineering solutions, or ordering information, contact our bearing specialists at auto@lyautobearing.com. Our team provides comprehensive support from initial design consultation through ongoing technical assistance.

Our commitment to engineering excellence and customer satisfaction drives continuous improvement in K Series Needle Roller Bearing technology, ensuring your equipment operates at peak performance.
