K Needle Roller Bearings - Complete Engineering Guide

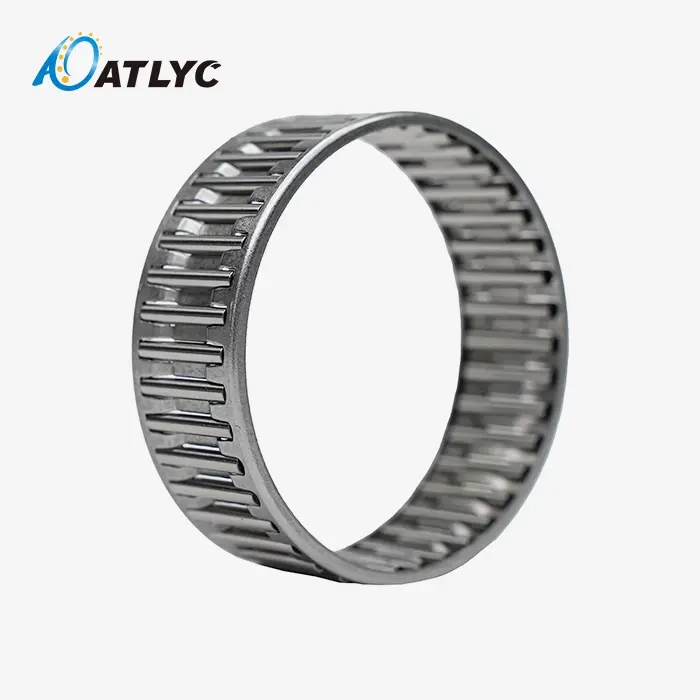

K Needle Roller Bearings are specialized outspread bearing congregations comprising a cage and needle rollers without inward or external rings. These compact bearing units utilize shaft and lodging bore specifically as raceways, accomplishing the most reduced conceivable spiral cross-section. This arrangement makes them basic for applications requiring extraordinary space imperatives whereas keeping up tall stack capacity. Their interesting plan addresses basic challenges in car transmissions, cruiser motors, and exactness gearboxes where ordinary heading cannot fit.

What are K Needle Roller Bearings?

Technically assigned as Spiral Needle Roller and Cage Congregations per Noise 5405-1 / ISO 3030, these bearing units speak to a specialized designing arrangement. The nonattendance of conventional internal and external rings permits coordinate mounting onto solidified shafts and into solidified lodgings.

The designation "K" follows international bearing nomenclature standards. Each bearing consists of:

• Needle rollers: High-precision cylindrical rolling elements
• Cage assembly: Steel or polymer material for roller guidance
• No rings: Shaft and housing act as raceways

This construction delivers maximum radial load capacity within minimal radial space, often limited only by needle roller diameter.

Design Features and Benefits

Minimal Radial Space Requirements

The ringless design achieves the smallest possible radial cross-section. This enables bearing integration in applications where space constraints prevent use of conventional bearings with solid rings.

High Load Capacity

Despite compact dimensions, the full-complement needle roller configuration provides exceptional radial load ratings. The direct roller-to-raceway contact maximizes load distribution across the bearing width.

Simplified Assembly

K series bearings function as self-contained units during assembly. This reduces installation complexity and prevents roller separation during handling, critical for automated production lines.

Superior Lubrication Access

The open cage design permits unrestricted lubricant flow. This feature proves essential in splash-lubricated gearboxes where oil circulation removes heat generated under high-load conditions.

Primary Applications

Automotive Transmission Systems

In gearbox idler gears, these bearings handle high centrifugal forces during rapid speed changes. The open cage design ensures adequate lubrication flow within the transmission's oil bath system.

Motorcycle and Small Engine Connecting Rods

K Needle Roller Bearings excel in oscillatory motion applications. Silver-plated cages often provide additional lubricity under boundary lubrication conditions typical in 2-stroke engines.

Planetary Gear Mechanisms

These bearings fit inside planet gears, running directly on carrier pins. This application demands high precision to maintain proper load distribution across gear mesh interfaces.

Installation Requirements

Shaft and Housing Preparation

Since K series bearings run directly on mating surfaces, proper raceway preparation is critical:

• Hardness: HRC 58-64 minimum
• Surface finish: Ra 0.2µm maximum
• Dimensional tolerance: IT6 or better
• Geometric tolerance: Cylindricity within 0.005mm

Clearance Considerations

Radial clearance depends on bearing tolerance combined with shaft and housing tolerances. Proper clearance ensures optimal load distribution while preventing binding during thermal expansion.

Lubrication Requirements

Adequate lubrication is essential since no integral sealing exists. Oil bath, grease, or forced circulation systems must supply lubricant to the roller-raceway contact zones.

Material and Cage Options

Steel Cages

Stamped steel cages provide maximum strength and universal oil compatibility. They withstand shock loads and high-temperature operation typical in heavy-duty applications.

Polymer Cages (PA66)

Polyamide cages offer reduced friction and improved roller guidance at high speeds. Temperature limitations (120°C maximum) restrict their use to moderate-temperature applications.

Quality Control and Standards

Our manufacturing follows strict quality protocols:

• Raw material inspection ensures bearing steel composition
• In-process dimensional verification maintains tolerance compliance
• Finished product testing validates load ratings and clearances
• 99.9% qualification rate demonstrates consistent quality

Each bearing batch undergoes verification of 12 core performance indicators including vibration testing and operational clearance measurement.

Why Choose Luoyang Auto Bearing?

With 30 a long time of bearing industry mastery, we combine free generation capabilities with comprehensive supply chain integration. Our dual-track framework conveys standard items inside 48 hours whereas customizing non-standard arrangements in 70% of normal industry timeframes.

Our coordinates R&D and fabricating capabilities cover the total range from standard catalog things to specialized custom plans. This adaptability guarantees ideal bearing choice for your particular application prerequisites.

For technical consultation or custom K Needle Roller Bearings solutions, contact our engineering team at auto@lyautobearing.com. We provide worldwide technical support including on-site installation guidance and maintenance planning services.
