Needle Roller Cage Assembly - High-Performance Precision Bearings

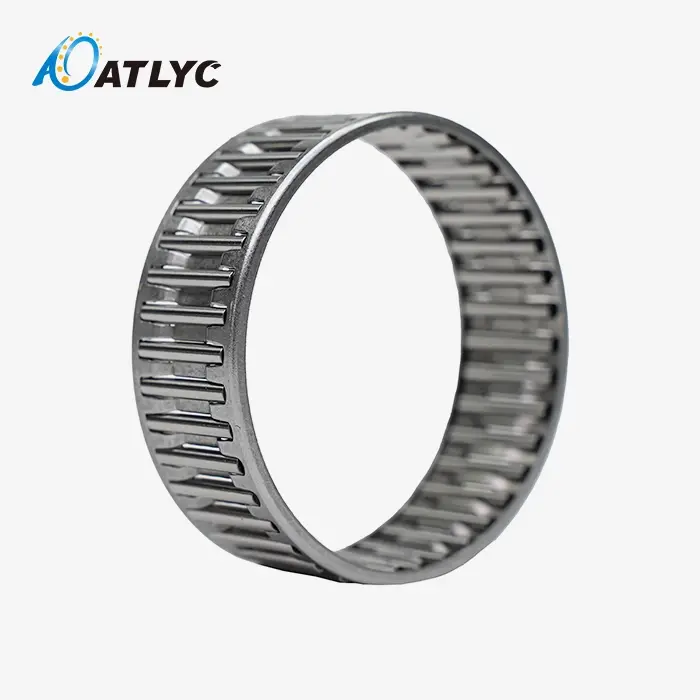

When you need maximum load capacity in minimal radial space, a needle roller cage assembly delivers the optimal solution. This precision-engineered bearing component combines a specially designed cage (retainer) with a complement of needle rollers to provide exceptional radial load support while maintaining the smallest possible footprint. Unlike full-complement bearings, the cage separates and guides each roller, preventing inter-roller friction and enabling higher speed operations for your critical applications.

Understanding Needle Roller Cage Assembly Construction

Core Components and Design

The gathering comprises of three essential components: accuracy needle rollers, an designed cage structure, and optimized geometry. The needle rollers include a length-to-diameter proportion regularly extending from 3:1 to 10:1, giving greatest contact region for stack distribution.

The cage serves numerous capacities past roller division. It keeps up exact roller dividing, avoids skewing beneath high-speed operation, and guides the rollers through the stack zone. This plan dispenses with the metal-to-metal contact between adjoining rollers that happens in full-complement courses of action.

Working Principle

During operation, the cage rotates at approximately half the speed of the shaft, ensuring even load distribution across all rollers. This speed differential creates optimal lubrication conditions and prevents excessive heat generation. The assembly typically operates directly on hardened shaft surfaces and housing bores, which function as the inner and outer raceways respectively.

Performance Advantages

The cage-guided configuration offers three key benefits. First, it enables higher rotational speeds compared to full-complement designs due to reduced friction and improved lubrication flow. Second, it provides better roller alignment under varying load conditions. Third, it extends operational life by preventing roller-to-roller wear.

Primary Applications

Automotive Transmissions

In manual and dual-clutch transmissions, these assemblies support planetary gear sets and idler gears. They handle high rotational speeds while managing torque spikes in confined spaces. The compact design enables smaller gearbox housings without sacrificing performance.

Engine Connecting Rods

Small engines, motorcycles, and compressors utilize needle roller cage assembly units in connecting rod applications. These components endure extreme acceleration forces and centrifugal loads at speeds exceeding 8,000 RPM. The precise roller guidance prevents skewing under these demanding conditions.

Hydraulic Systems

Gear pumps and hydraulic motors benefit from the space-saving design when supporting drive shafts. The assemblies maintain shaft alignment under high hydraulic pressures while operating submerged in hydraulic fluid.

Industrial Gearboxes

Power transmission applications require the high load density these assemblies provide. They enable compact gearbox designs while handling heavy radial loads from gear meshing forces.

Key Performance Benefits

Maximum Load in Minimum Space

The high number of line contacts between rollers and raceways provides exceptional load-carrying capacity. This design delivers the highest load rating per unit of radial space among all rolling bearing types.

Superior Speed Capability

Cage-guided operation reduces friction and heat generation compared to full-complement designs. This enables higher operating speeds while maintaining stable performance and extending service life.

Operational Flexibility

The assembly accommodates misalignment and shaft deflection better than rigid bearing designs. This flexibility reduces stress concentrations and improves overall system reliability.

Cost-Effective Installation

Coordinate mounting on shaft and lodging surfaces kills the require for isolated inward and external rings. This diminishes both component costs and establishment complexity whereas sparing important space.

Quality Assurance and Manufacturing Excellence

Our fabricating handle utilizes high-purity bearing steel and exactness warm treatment to guarantee steady fabric properties. Each item experiences comprehensive testing counting dimensional confirmation, surface wrap up assessment, and operational testing.

The three-level quality control framework includes crude fabric assessment, in-process checking, and total wrapped up item confirmation. This thorough approach accomplishes an ex-factory capability rate surpassing 99.9%.

Custom Solutions and Technical Support

We give comprehensive building back for non-standard applications requiring particular measurements, materials, or execution characteristics. Our specialized group can help with bearing determination, establishment methods, and operational optimization.

For applications with interesting prerequisites, we offer customized cage materials, uncommon coatings, and altered geometry to meet your correct determinations. Our measured generation approach decreases custom bearing conveyance times to 70% of industry midpoints.

Contact Information

For technical specifications, custom solutions, or application assistance with needle roller cage assembly products, contact our engineering team at auto@lyautobearing.com. We provide worldwide technical support and can assist with bearing selection for your specific application requirements.

Our experienced engineers offer on-site mapping services, installation guidance, and comprehensive technical consultation to ensure optimal bearing performance in your equipment. With 30 years of industry experience, we deliver reliable bearing solutions that meet the demanding requirements of modern industrial applications.
