Caged Needle Bearings K25X30X17 - High-Performance Radial Load Solutions

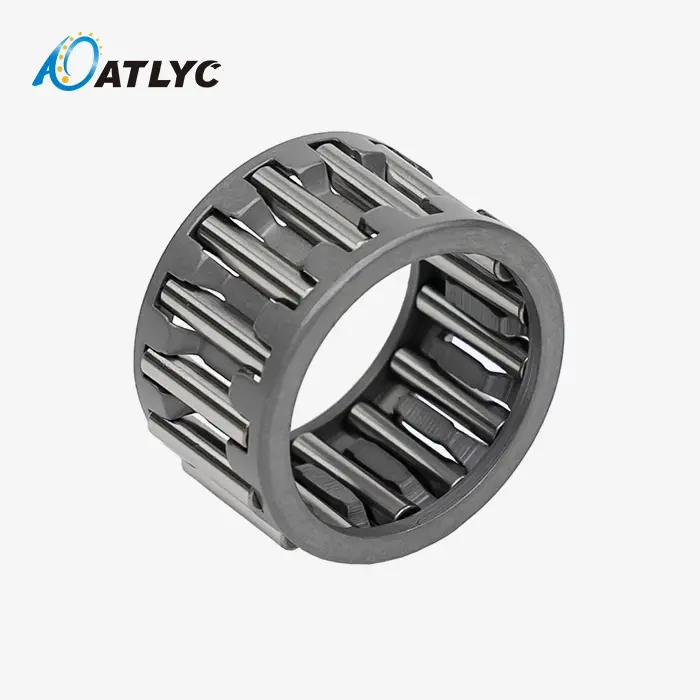

When you need maximum radial load capacity in minimal space, caged needle bearings K25X30X17 deliver the precision engineering your applications demand. These specialized radial needle roller and cage assemblies feature compact dimensions of 25mm inner diameter, 30mm outer diameter, and 17mm width. The K-series design eliminates integral rings, allowing your shaft and housing bore to serve as direct raceways. This innovative approach solves space constraints in high-precision machinery while maintaining superior load-carrying performance.

Design Structure and Working Principle

The K25X30X17 incorporates a sophisticated cage retention system that guides needle rollers with precision. Steel cages provide exceptional durability for demanding environments, while PA66 polymer cages reduce inertia and operating noise.

The working principle centers on direct roller-to-raceway contact. Needle rollers distribute loads evenly across the shaft surface and housing bore. The cage prevents roller-to-roller contact, minimizing friction and heat generation during operation.

This design delivers superior rigidity per unit volume compared to conventional ball bearings. The sorted needle rollers maintain diameter tolerances within 2µm, ensuring uniform load distribution and reduced Hertzian stress on mating surfaces.

Performance Advantages

Space Optimization: The ringless design maximizes load capacity within the smallest possible radial envelope. You achieve higher shaft stiffness without increasing housing dimensions.

High Load Capacity: Despite compact dimensions, these bearings handle substantial radial loads through optimal roller geometry and contact stress distribution.

Speed Capability: Low-inertia needle rollers enable stable high-speed operation. Oil lubrication systems support continuous operation at maximum rated speeds.

Versatile Installation: Direct shaft mounting simplifies housing design and reduces manufacturing costs. The bearing adapts to various shaft and housing tolerance combinations.

Primary Applications

Automotive Transmission Systems

Caged needle bearings K25X30X17 excel in idler gears and planetary gear sets. They withstand intermittent high-impact loads during gear shifting while maintaining precise positioning between hardened shafts and gear bores.

Motorcycle Engines

In connecting rod small-ends, these bearings handle rapid acceleration and oscillation under splash lubrication conditions. Their minimal radial clearance requirements support engine timing precision and noise reduction.

Industrial Hydraulic Equipment

Gear pumps and compressors utilize these bearings for continuous high radial load applications. The compact design permits smaller pump housings without compromising shaft diameter or stiffness against hydraulic pressure.

Gearbox Applications

Diminishment gearboxes advantage from the bearing's capacity to back tall torque transmission in constrained outspread space. The plan obliges warm extension whereas keeping up operational clearances.

Installation Requirements

Shaft Arrangement: Your shaft surface requires HRC 58-64 hardness with Ra ≤ 0.2µm surface wrap up. ISO h6 resistance gives ideal fit characteristics.

Housing Determinations: Machine lodging bores to H7 resilience for standard C0 outspread clearance. Guarantee satisfactory grease pathways for oil circulation.

Lubrication Frameworks: Oil fog or sprinkle oil empowers full speed rating utilization. Oil oil decreases speed limits by 30-40% due to warm retention.

Quality Control and Manufacturing

Our fabricating handle takes after strict quality benchmarks. Each bearing experiences comprehensive testing counting vibration examination and stack confirmation. The three-level quality control framework guarantees over 99.9% capability rates.

High-purity bearing steel development gives great wear resistance and weariness life. Extraordinary warm treatment forms optimize fabric properties for requesting applications.

Precision pounding innovation keeps up dimensional precision inside indicated resiliences. This consideration to detail guarantees steady execution over generation bunches.

Ordering and Support

Standard delivery time is 7 working days for stock items. We support OEM customization for special requirements and provide sample services for application testing.

For technical assistance with caged needle bearings K25X30X17 selection or installation guidance, contact our engineering team at auto@lyautobearing.com. Our experienced engineers provide comprehensive support from initial specification through operational maintenance.

Choose these precision-engineered bearings when your applications demand maximum performance in minimum space. The combination of high load capacity, speed capability, and compact design makes them essential components for modern machinery solutions.
