K Series Needle Bearings - High-Performance Radial Load Solutions

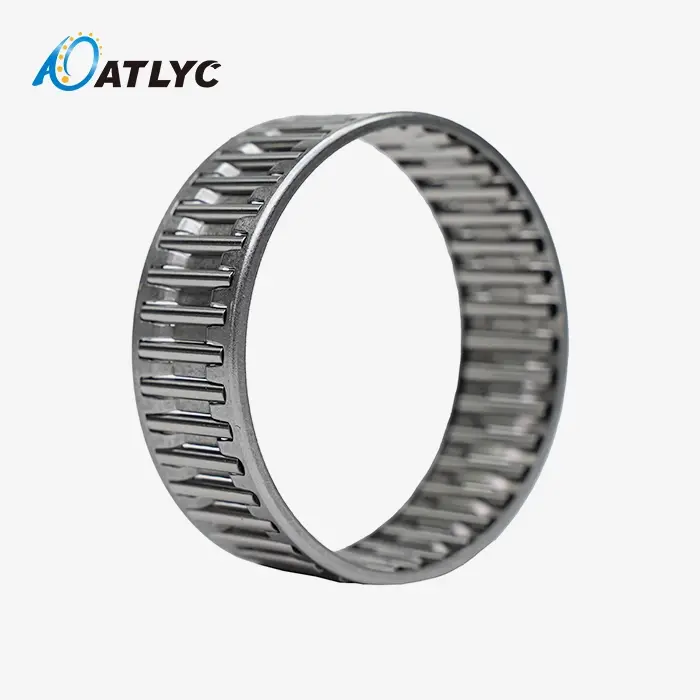

When you require greatest stack capacity in negligible spiral space, K Series Needle Bearings deliver unmatched execution for your basic applications. These specialized spiral needle roller and cage congregations work without inward or external rings, running specifically on solidified shaft and lodging surfaces. This one of a kind plan makes the items perfect for gearboxes, cruiser motors, and pressure driven frameworks where space limitations request imaginative building solutions.

Product Overview

The items comprise of accuracy needle rollers guided by a cage gathering. The rolling components contact the shaft and lodging bore specifically, making an coordinates raceway framework. This arrangement dispenses with the thickness of bearing rings, permitting bigger shaft breadths or diminished generally gathering dimensions.

The bearing plan addresses particular mechanical challenges where engineers require tall outspread stack capacity inside amazingly limited spaces. Your gear benefits from expanded control thickness whereas keeping up unwavering quality beneath requesting working conditions.

Key Performance Advantages

Space-Saving Design

The ringless construction reduces radial height by 40-60% compared to conventional needle bearings. You can increase shaft diameter for enhanced stiffness or minimize housing size for weight reduction in mobile applications.

High Load Capacity

Direct contact between needle rollers and raceways provides superior load distribution. The design handles radial loads up to 30% higher than equivalent ringed bearings due to optimized stress distribution across the raceway length.

Operational Precision

Precision-manufactured needle rollers ensure uniform load distribution and minimal runout. Your equipment achieves consistent performance with reduced vibration and noise levels during operation.

Cost-Effective Integration

The simplified design reduces component count and assembly complexity. Manufacturing costs decrease through elimination of separate rings while maintaining performance standards required for industrial applications.

Primary Applications

Automotive Transmission Systems

K Series bearings support planetary gear assemblies in automatic transmissions. They withstand centrifugal forces exceeding 1000g while maintaining lubrication films under shock loading conditions during gear changes.

Motorcycle Engine Components

Located in connecting rod assemblies and crankshaft supports, these bearings handle rapid RPM variations and combustion forces. The high rigidity ensures precise piston movement while minimizing engine vibration.

Heavy-Duty Hydraulic Equipment

Gear pumps and piston pumps in construction machinery rely on these bearings for drive shaft support. They maintain dimensional stability under continuous high-pressure operation in contaminated fluid environments.

Industrial Gearbox Applications

Transmission systems use these bearings where gear bores serve as outer raceways. The design accommodates high-speed operation while providing reliable guidance under varying load conditions.

Installation and Design Considerations

Raceway Surface Requirements

Your shaft and housing surfaces must achieve HRC 58-64 hardness for rated load life. Surface roughness should not exceed Ra 0.4 μm to prevent premature wear and ensure proper lubrication film formation.

Tolerance Recommendations

Shaft tolerances typically follow h5 or j5 specifications, while housing bores require H6 or G6 tolerance classes. Proper tolerance selection ensures appropriate radial internal clearance for your specific application.

Lubrication Management

These K Series Needle Bearings require continuous lubrication through oil bath, circulation systems, or grease application. Lubrication intervals depend on operating conditions, with typical relubrication cycles ranging from 500-2000 operating hours.

Quality Assurance and Manufacturing

Our 30-year bearing manufacturing experience ensures consistent product quality through comprehensive testing procedures. Each bearing assembly undergoes vibration testing, dimensional verification, and load capacity validation before delivery.

The three-level quality control system includes raw material inspection, in-process monitoring, and finished product verification. This approach achieves over 99.9% qualification rates, making our products suitable for demanding industrial applications.

Technical Support Services

Our building group gives application investigation and bearing determination direction for your particular necessities. We offer on-site estimation administrations for non-standard applications and custom bearing advancement for one of a kind working conditions.

Installation bolster incorporates appropriate mounting methods, resilience confirmation, and grease proposals. Our specialized meeting benefit addresses operational concerns and investigating all through your equipment's benefit life.

Ordering and Customization

Standard K Series Needle Bearings ship within 7 working days from our production facility. Custom configurations accommodate special dimensional requirements, cage materials, or performance specifications with typical lead times of 15-20 days.

Sample bearings are available for evaluation and testing in your application. Our technical team assists with bearing selection and provides application engineering support throughout your development process.

For technical specifications, application guidance, or custom bearing requirements, contact our engineering team at auto@lyautobearing.com. We provide comprehensive bearing solutions that meet your specific performance and reliability requirements.
