How to Find a Top Deep Groove Ball Bearing 60 Series Factory?

For a dependable deep groove ball bearing 60 series manufacturer, you need to look for ISO 9001 and IATF 16949 certifications, evaluate the precision machining capabilities of the supplier (CNC grinding, heat treatment to HRC 60-64), and check the export experience of the supplier. Ask for sample bearings — verify dimensions against ISO tolerance classes (P0-P5), verify manufacturing capacity statistics Check references from current OEM clients. You will want to partner with a manufacturer that has certified quality processes, verified failure rates under .1 percent, and flexible MOQ terms to ensure your supply chain has the consistency it requires for long-term, high-volume procurement.

Understanding the Deep Groove Ball Bearing 60 Series Fundamentals

I always make sure that my team knows what we are really purchasing before sourcing. The Deep Groove Ball Bearing 60 series is officially “Extra Light”, since it falls under the ISO Dimension Series 10 – a single-row radial ball bearing. It has a smaller outer diameter and narrower breadth than the 62 (medium) or 63 (heavy) series for any given bore size, which immediately reduces rotational inertia and permits greater limiting speeds.

Core Technical Specifications

Material Choices: Steel vs. Ceramic

The standard material for rings and balls is vacuum-degassed and heat-treated high-carbon chrome steel GCr15 to an HRC 60–64 level. This is the equivalent of SAE 52100. Places where it will corrode. AISI 440C stainless steel is utilized. Hybrid ceramics are made using steel rings and silicon nitride (Si₃N₄) balls. We lower the ball mass by around 60%. Increase speed by approximately 15-20%. Generate less heat. For severe chemical conditions, ceramic full complement alternatives are available.

Seal and Cage Options

Sealed versions may be separated into two common sets. The 2RS type is the most popular for industrial automation and robotics joints, since the rubber contact seals keep dust and moisture out. The ZZ type features pressed-metal shields that produce less friction and are appropriate for motors that operate at greater speeds. Standard cages are in pressed steel; heavy-duty cages in brass and polyamide (nylon) are used for low-noise, high-speed motors. Many premature bearing failures in the field are caused by the improper cage-and-seal combination.

Key Criteria to Identify a Top 60 Series Bearing Factory

It is not sufficient to know the products. When procurement managers assess the manufacturing plant for a Deep Groove Ball Bearing 60 series, they may identify long-term partners vs. short-term threats. Verification of the recorded Cpk data and manufacturing accuracy is critical to long term dependability.

Certifications That Actually Matter

ISO 9001 is good for general quality control, but IATF 16949 is a must for the automobile and OEM industry supply chains. This standard involves Advanced Product Quality Planning (APQP), the Production Part Approval Process (PPAP), and statistical process control (SPC). All these work together to reduce the possibility that dimensionally nonconforming items make it to the manufacturing line. The ABEC precision levels (ABEC-1 to ABEC-9) and the DIN/GB national standards provide a clear, quantifiable starting point to measure accuracy and runout limitations for consumers.

Manufacturing Capabilities to Verify

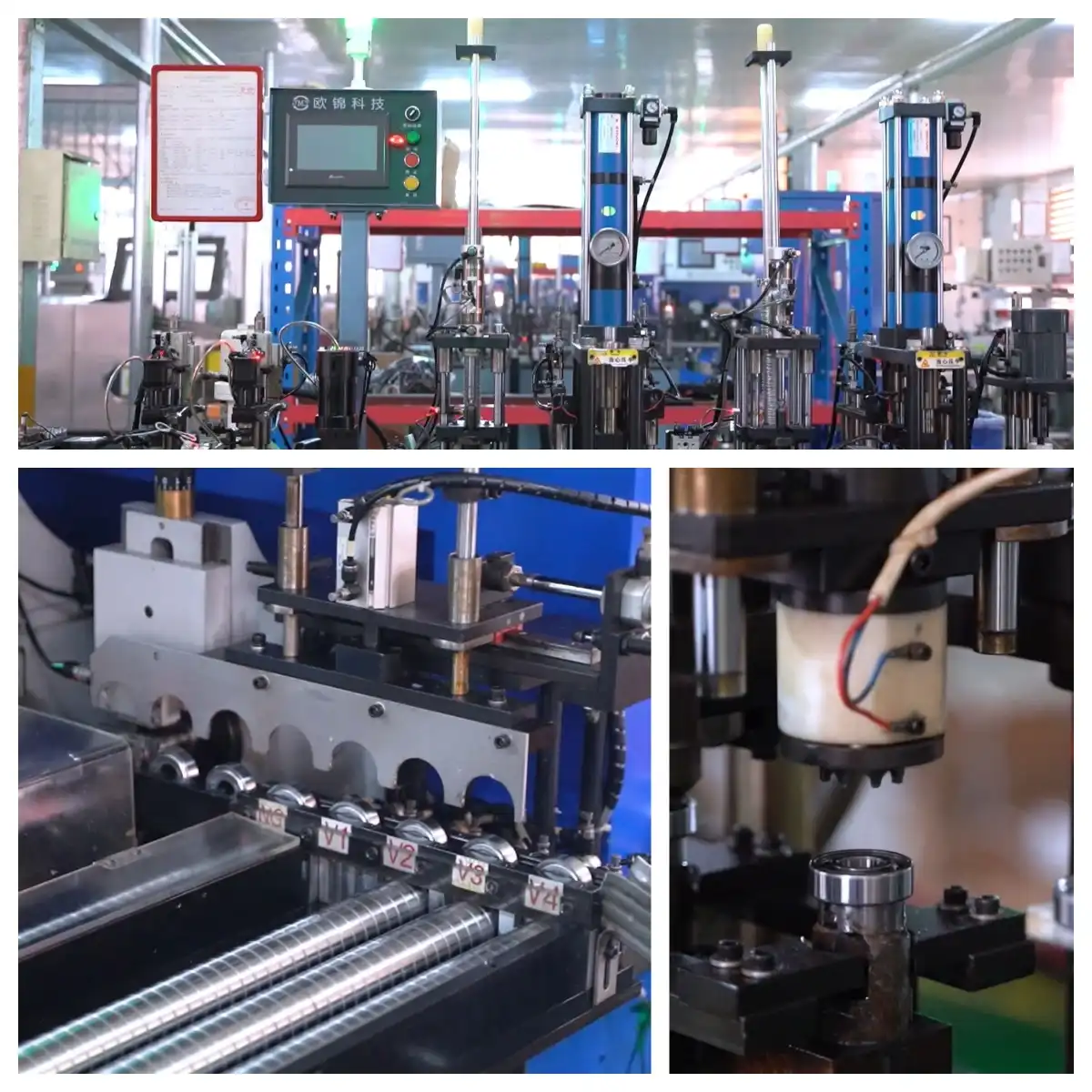

A decent manufacturer should have CNC grinding centers that can maintain the bore specifications within +/- 0.005 mm and heat treatment ovens installed within the facility to make sure that all the batches have the same HRC 60-64 hardness. The automated racetrack superfinishing lines immediately provide the Z3 / V3 or Z4 / V4 noise levels needed by electric motor OEMs. Ask for their Cpk (Process Capability Index) statistics. For key dimensions, a Cpk of more than 1.67 suggests that the process is mature and well managed.

R&D Strength and Customization

A true manufacturing partner is not a catalog vendor. The factory may adjust the form of the cage, apply specific coatings (for example, VCI anti-corrosion treatment), or change the internal clearance for non-standard needs. Look for organizations that have their own measurement laboratories, CMM (Coordinate Measuring Machine) tools, and defined engineering change procedures.

Comparing Leading 60 Series Deep Groove Ball Bearing Manufacturers

Understanding how major global and Chinese manufacturers differ helps buyers position their sourcing strategy accurately.

European and Japanese names cost more because people trust those brands more. A verified Chinese manufacturer with IATF 16949 certification and a history of exporting to markets like the US, Germany, and South Korea is a truly competitive option for procurement teams that want to balance cost-performance ratio and certified quality. When picking between the Deep Groove Ball Bearing 60 series and the 62 series for a certain job, speed vs. load is usually what makes the difference.

Steps to Evaluate and Select Your 60 Series Supplier

My team follows an organized process that has regularly cut down on qualification risk. When we bring on a new Deep Groove Ball Bearing 60 series provider, we do things in this order:

• Define application requirements first. Before you call any suppliers, write down the bore size, load type (radial vs. axial), operating speed, temperature range, sealing needs, and precision class that you need. Quotes are hard to understand when specs aren't clear.
• Verify certifications independently. Check both the ISO 9001 and IATF 16949 certificate numbers against the register of the certification body that issued them, such as BSI, TÜV, or Bureau Veritas.
• Request a sample batch with a full inspection report. A trustworthy plant will give you noise test results and details on the dimensions of the parts (bore, OD, width, and radial runout) according to ISO 15242.
• Conduct a factory audit or request a third-party audit report. On-site audits check the actual amount of work being done, the condition of the equipment, and the quality control methods used. If you can't travel, agencies like SGS or Intertek offer remote audits.
• Negotiate MOQ, lead time, and OEM terms in writing. Make sure you agree on the minimum order quantity, standard lead times (15–30 days for stock sizes), and OEM marking rights before signing the supply contract.





Conclusion

You can't just look through brochures to find a top-notch Deep Groove Ball Bearing 60 series plant. The process needs to check the validity of certifications, evaluate the ability to manufacture, confirm samples, and set up a structured supplier qualification process. Quality standards are set by global brands like SKF and NSK. However, certified Chinese manufacturers with IATF 16949 accreditation and a history of exports now offer a reliable, cost-effective way for OEMs and distributors who need both accuracy and low prices.

FAQ

How does the 60 series differ from the 62 and 63 series?

The outer diameter and width of the Deep Groove Ball Bearing 60 series are smaller than those of the 62 (medium) or 63 (heavy) series for any given hole diameter. This reduces weight and raises top speeds by 15–20%, but it also lowers dynamic load capacity. Choose the 60 series for space and speed; choose the 62 or 63 series for load priority.

When should I specify C3 internal clearance?

For applications that run at speeds above 3,000 RPM or at high temperatures, a C3 clearance is suggested. The extra room inside makes up for the steel rings' thermal growth and keeps them from seizure. Standard CN clearance works well for most uses that run at normal temperatures and speeds.

What is the difference between 2RS and ZZ sealing?

The 2RS designation means rubber contact seals — strong protection against dust and moisture, but slightly higher friction. ZZ means pressed metal non-contact shields — lower friction and higher speed capability, but less protection against fine particulates and liquids. Select 2RS for dirty environments; select ZZ for clean, fast conditions.

How do I verify a factory's product quality before placing a large order?

As per ISO 15242, ask for a sample batch with a report on the dimensions and data from a noise test. Check the factory's IATF 16949 or ISO 9001 certificate number against the public registry of the issuing organization. A third-party audit by SGS or Bureau Veritas adds another level of independent checking.

What lubrication do pre-sealed 60 series bearings use?

Most pre-sealed units (2RS or ZZ) are filled with NLGI Grade 2 lithium-based grease, which takes up 30–40% of the internal free space. Under normal conditions, this fill-for-life system means that there is no need to re-oil in the field.

Source Your Deep Groove Ball Bearing 60 Series Supplier With ATLYC

Since 2010, ATLYC — Luoyang Auto Bearing Co., Ltd. — has been making precision bearings. The company has six production workshops with 120 specialists and is certified by both ISO 9001 and IATF 16949. Our Deep Groove Ball Bearing 60 series maker skills include precision classes P0 through P5, as well as custom sealing and OEM marking for wholesalers and OEMs in the US, Germany, South Korea, and beyond. Contact us today at auto@lyautobearing.com for a sample request or bulk quotation.

References

1. ISO 15243:2017 — Rolling Bearings: Damage and Failures — Terms, Characteristics and Causes. International Organization for Standardization, 2017.

2. SKF Group — SKF Rolling Bearings Catalogue. SKF, 2023.

3. Schaeffler Group — FAG Rolling Bearing Catalogue: Deep Groove Ball Bearings. Schaeffler Technologies AG & Co. KG, 2022.

4. Harris, T. A., & Kotzalas, M. N. — Rolling Bearing Analysis: Essential Concepts of Bearing Technology (5th ed.). CRC Press / Taylor & Francis, 2006.

5. IATF 16949:2016 — Quality Management System Requirements for Automotive Production and Relevant Service Parts Organizations. International Automotive Task Force, 2016.

6. Hamrock, B. J., Schmid, S. R., & Jacobson, B. O. — Fundamentals of Machine Elements (3rd ed.). CRC Press, 2014.
