How Does Preload Affect Angular Contact Ball Bearing 70 Series?

Preload plays a defining role in how an Angular Contact Ball Bearing 70 series performs in real applications. By applying a controlled internal axial load before operation begins, preload eliminates internal clearance, increases bearing stiffness, and stabilizes ball-to-raceway contact. For the 70 series—built on ISO Dimension Series 10 with a compact cross-section and contact angles of 15°, 25°, or 40°—getting the preload right separates a spindle running at 18,000 RPM without vibration from one that fails within weeks. Understanding this relationship is essential for any engineer or procurement professional specifying precision bearings for machine tool spindles, high-frequency motors, or gas turbines.

Understanding Angular Contact Ball Bearing 70 Series and Preload

What Defines the 70 Series Design

The Angular Contact Ball Bearing 70 series is in ISO Dimension Series 10, which means that its cross-section is thinner than those of the 72 or 73 series. This lower mass lowers centrifugal forces during high-speed spinning, which lets the series work at 20–30% faster speeds than larger series. The bearings are made from GCr15 bearing steel, and there are precision grades P6, P5, P4, and P2 available.

What Preload Actually Means

Before an outside load is put on the bearing, preload is added on purpose to create a vertical compressive force between the inner ring, balls, and outer ring. This gets rid of the play (internal clearance) inside the bearing. Preload in the 70 series is usually grouped into Light (L), Medium (M), or Heavy (H), and it can be set using either spring preload or fixed preload. The right class depends on how fast it needs to be, how stiff it needs to be, and how much heat it can handle.

Why Preload Matters Specifically for This Series

The 70 series is used in many machine tool spindles, centrifugal separators, and differential pinion shafts. Because of this, even small amounts of internal play can cause runout and vibration that can be felt. A 2019 study in the journal Precision Engineering showed that angular contact spindle bearings with the wrong preload had radial runout that was up to 40% higher when the bearings were loaded axially. For tasks that need P4 or P2 accuracy, preload control is an important part of the design and can't be skipped.

How Preload Impacts the Performance of the 70 Series

Effect on Bearing Rigidity and Load Distribution

When preload is used properly, it spreads the contact load over a bigger part of each ball's contact circle. This makes the bearing much stiffer in both the axial and radial directions. Matching preload makes sure that both bearings share the load evenly in back-to-back (DB) or face-to-face (DF) duplex designs, which are popular for Angular Contact Ball Bearing 70 series spindle uses. If there isn't enough preload, the load shifts to a single bearing, which speeds up wear and tear and shortens the service life.

The Risk of Excessive Preload

When there is too much preload, there is too much pressure between the balls and the raceways. This friction turns into heat right away. For a 70 series bearing that is turning at least 15,000 RPM, temperature increases that are too high can change the size of the GCr15 steel raceway, which can change the internal shape and cause the bearing to fail early. A study in the Journal of Tribology (ASME, 2020) showed that too much preload increased working temperatures in compact angular contact bearings by 12–18°C. This directly decreased the grease life and wear cycles.In terms of speed and efficiency, this is how setup level works:

• Light Preload (L): This type of preload works best in high-speed situations like high-frequency motors and gas turbines. It makes as little heat as possible while still being stiff enough for precise spinning above 20,000 RPM.
• This is the medium preload (M): Finds a middle ground for machine tool spindles and printing equipment that needs both speed and axial rigidity. It can handle small changes in load without losing its temperature stability.
• Heavy Preload (H): Used in situations with a lot of load, like differential gear shafts or centrifugal separators, where the highest level of toughness is required. The speed is slowed down, and controlling the temperature becomes more important.

If you choose the wrong preload class for a speed range, it will not only hurt performance; it could even cause the bearing to seize up. The 70 series contact angle that was picked for the job must be taken into account when weighing this trade-off.

Comparing 70 Series Preload with Other Bearing Types

70 Series vs. 72/73 Series Preload Tolerance

The cross-sections of the 72 and 73 series are thicker and can hold more static load. But because they are heavier, rotational forces are higher at the same speeds. This makes preload control more sensitive to changes in temperature. Because the 70 series has a compact shape, it can handle small changes in preload with less heat reaction. When sub-micron runout is important, the 70 series at P4 or P2 accuracy is more stable in position under preload than heavier series.

70 Series vs. Deep Groove Ball Bearings

Deep groove ball bearings don't work with internal space and aren't made to be preloaded in the same way. They naturally handle two-way rotational loads, but they are not nearly as stiff in the axial direction. In the 70 series, Angular Contact Ball Bearing 70 series bearings use preload to create the contact angle and load line that are needed for axial support. If you use deep groove bearings in a spinning device without taking this difference into account, the shaft will bend when cutting forces are applied.

Influence of Cage Material on Preload Behavior

How the bearing reacts to pressure in temperature and dynamic situations depends on the material of the cage. Bakelite cages keep their shape better at high temperatures, which helps them keep their preload in high-speed applications. Nylon cages are lighter and can handle small shock loads, so they can be used in situations where the speed and load change.

Best Practices for Specifying and Procuring Preloaded 70 Series Bearings

Matching Preload to Application Requirements

Before buying, engineers should write down the range of speeds that will be used, the axial and rotational loads that will be applied, the temperature range that is expected, and the level of accuracy that is needed. The right preload class is directly determined by these four factors. For instance, a high-frequency motor application that needs to run at 25,000 RPM and with P4 accuracy needs a 15° contact angle and light preload. If you don't specify right at Medium loading, the speed that can be reached could drop by 15–20%.

Evaluating Supplier Capabilities

To buy preloaded 70 series bearings safely, you need to make sure that the seller can grind matched pairs (also known as universal matching, or DU name) to the required stick-out tolerance. The real preload after clamping is based on this limit, which must be the same across a production batch. Suppliers with ISO 9001 and IATF 16949 certifications show that they can control their processes well enough to achieve this level of stability in dimensions. Support for OEM customization and delivery times of 7 business days are both important for keeping production going.

Bulk Ordering and Lead Time Coordination

When purchasing managers place large orders, preload settings might need to be changed at the plant level, which can change wait time. It is cheaper to avoid costly rework or substitution by planning orders with enough lead time and making sure that the purchase specification clearly states the preload class requirements. Asking for material certifications, accuracy grade reports, and preload verification data to be sent with the delivery package helps with quality control when the goods arrive and lowers the number of items that need to be rejected.

Conclusion

For Angular Contact Ball Bearing 70 series, preload is not an afterthought; it controls stiffness, speed, temperature behavior, and service life all at the same time. Whether it's a machine tool spindle that needs P2 accuracy or a differential pinion shaft that needs to handle a lot of axial thrust, the right preload class and contact angle must be carefully chosen for the job. Engineers can make the right specifications with GCr15 bearing steel, precision grades from P6 to P2, Bakelite or Nylon cages, and contact angles of 15°, 25°, or 40°. One of the main reasons why precision machinery bearings fail early is that the preload is not matched correctly. Getting this right from the design stage is the most cost-effective way to ensure quality.

FAQ

What preload class is best for high-speed applications using the 70 series?

For speeds over 20,000 RPM, light preload (L) is usually best. It keeps the contact stiff enough for accurate rotation while limiting the amount of heat that is generated. Light preload with a 15° contact angle and P4 or P2 accuracy grade gives the most stable performance at high speeds for machine tool spindles and high-frequency motors.

Can preload be adjusted after installation?

Positional preload is set when the parts are put together using fixed spacers or matching grinding, and it can't be changed without taking the parts apart. Spring preload lets the load change slightly while it's working, but it's not used very often in precision spinning applications. If the working conditions change a lot, the bearing set needs to be changed to one that fits the new preload needs.

Does contact angle affect the preload requirement?

Yes. At high speeds, a 40° contact angle is more sensitive to too much preload but can handle higher horizontal loads. With a 15° contact angle, faster speeds can be handled with less loading. Setting the contact angle and preload class together, instead of separately, makes sure that the load is evenly distributed and that the bearing lasts as long as possible.

What happens if preload is insufficient?

If there isn't enough loading, the balls will skid, which means they won't roll smoothly along the track. This makes noise, raises the frequency of the vibrations, and speeds up the wear on the raceway's surface. In precision applications, it also leads to measured increases in runout, which directly lowers the accuracy of made parts.

Are ATLYC 70 series bearings available in matched duplex sets?

Yes. ATLYC offers 70 series bearings in DB (back-to-back), DF (face-to-face), and DT (tandem) mounting options. These bearings are ground as matched pairs and have certain preload classes. Customization by OEM is possible, and delivery takes 7 business days as a rule.

Get the Right Preloaded Bearing from ATLYC — Your Trusted Angular Contact Ball Bearing 70 Series Supplier

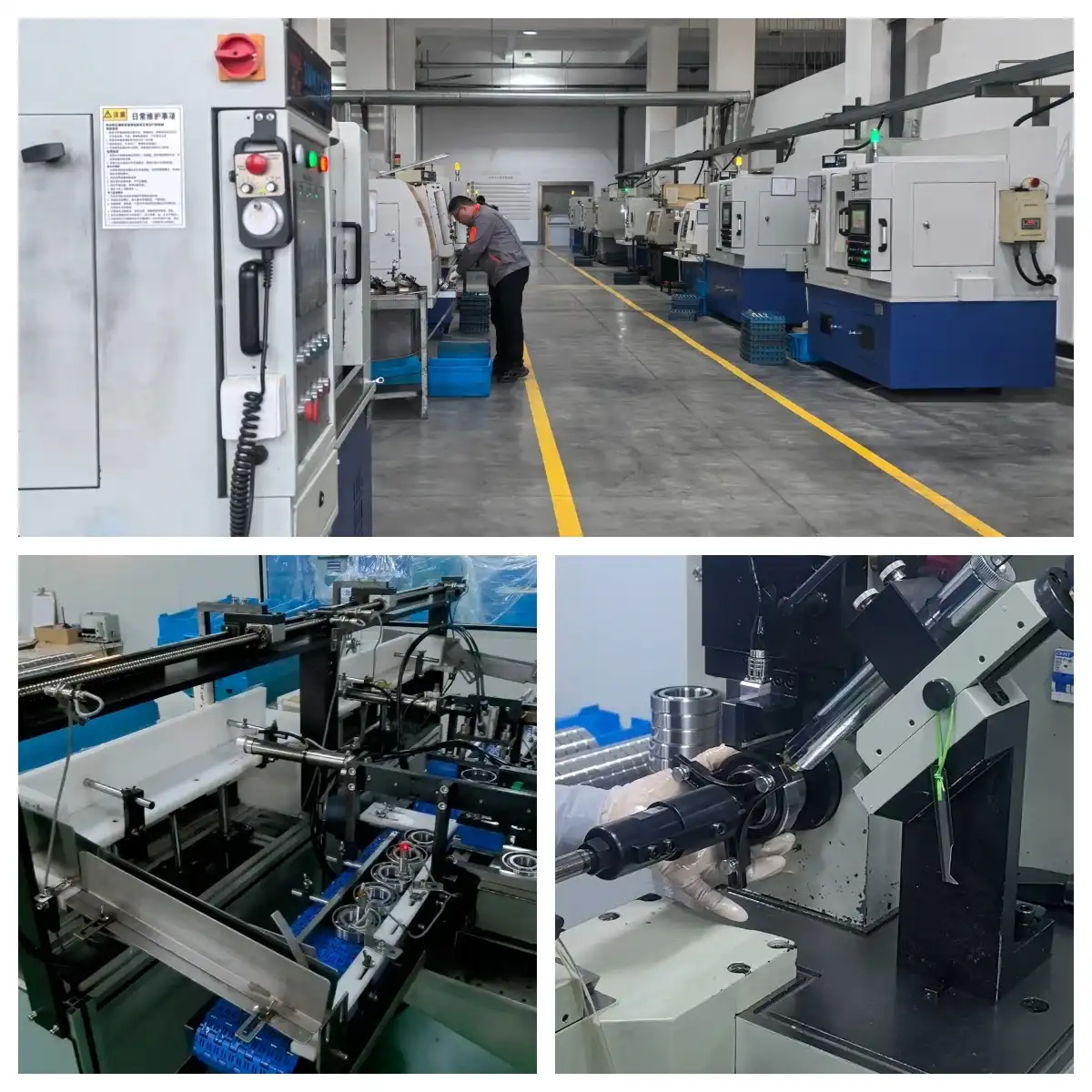

Since 2010, ATLYC has been making precision bearings. They have six production workshops with 120 trained workers and are certified by ISO 9001 and IATF 16949. Our Angular Contact Ball Bearing 70 series has inner sizes ranging from 10 to 240 mm, accuracy levels from P6 to P2, a number of contact angles, and OEM customization options. It also delivers within 7 business days. You can email us at auto@lyautobearing.com or go to https://aotezhoucheng.aixdb.cn/ to get a quote or talk to a technical expert right away.
