RA15008UUCC0 Precision Cross Roller Bearing Factory Direct Supply

When you're sourcing precision components for high-stakes industrial applications, the difference between operational excellence and costly downtime often hinges on one critical decision: choosing the right bearing supplier. The RA15008UUCC0 Precision Cross Roller Bearing exemplifies compact tribological engineering, featuring cylindrical rollers arranged orthogonally at 90° intervals between V-grooved rolling surfaces. Factory direct supply eliminates intermediary markups while guaranteeing authentic product specifications, consistent quality control, and responsive technical support—advantages that matter deeply to purchasing managers and OEM partners navigating today's competitive global supply chains.

Understanding RA15008UUCC0 Precision Cross Roller Bearing Specifications

To be precise, you must first know what makes this bearing special. Through its innovative design architecture and material science, the RA15008UUCC0 Precision Cross Roller Bearing performs better than most bearing solutions.

Core Dimensional Parameters

With an inner diameter of 150mm, an outer diameter of 166mm, and an amazingly small width of only 8mm, the bearing has an extremely thin profile. This geometry is used to deal with limited room in robots and automation equipment, where every millimetre saved means better system integration. The outer ring can be taken apart, and the inner ring can rotate at the same time. This makes installation easier while keeping the structure strong.

Material Composition and Heat Treatment

The bearing is made from vacuum-degassed GCr15 bearing steel, or sometimes GCr15SiMn for better hardenability. It then goes through a precise heat treatment process to reach an HRC of 60–64. This metalworking process makes sure that the material doesn't wear down after millions of rotations, which is very important for parts of cars and machines that work nonstop.

Load Capacity and Accuracy Grades

Standard deep groove ball bearings need to be paired up, but this crossed roller design can handle radial, axial, and moment loads all at the same time in a single unit. Line-contact geometry between the rollers and the raceways is three to four times more rigid than point-contact geometry. There are different levels of accuracy, from normal industrial P6 to ultra-precise P2. These levels cover a wide range of applications, from general machining centers to semiconductor chip alignment stages. The two rubber seals (UU designation) keep out contaminants while keeping the lubrication in, which means that service intervals are longer. The CC0 clearance standard means negative internal clearance, which is a preset state that eliminates backlash and is necessary for precision rotary tables that need to be able to repeat positions down to the micron level.

These specs show why procurement teams like buying directly from factories: every measurement follows strict ISO tolerances that are checked by our own quality checking procedures.

Comparing RA15008UUCC0 with Other Precision Cross Roller Bearings

Knowing how competitors are positioned helps buyers make decisions that are both cost-effective and meet the needs of the application.

RA15008UUCC0 versus RA15008UUCC1

The RA15008UUCC1 version usually has different clearance requirements or seal setups. Both types have the same size footprint, but our RA15008UUCC0 Precision Cross Roller Bearing is stiffer because it has a CC0 preload, which is better for uses that are sensitive to elastic displacement events. When building collaborative robot joints, engineers like CC0 versions because they require consistent positional accuracy without mechanical jitter when the moment load changes.

Cross Roller Bearings versus Angular Contact Ball Bearings

To handle combined loads, traditional angular contact ball bearings need to be mounted back-to-back or face-to-face, which takes up valuable axial space. These complicated assemblies are replaced by a single cross roller bearing, which cuts down on the number of parts and the difficulty of installation. The cylinder-shaped roller contact area spreads loads more evenly, reducing stress build-ups that cause ball bearings to wear out too quickly when they are under heavy moment loads.

Brand Authenticity and Certification Importance

There are fake goods in the bearing aftermarket that haven't been properly heated or measured. When you buy directly from ISO 9001 and IATF 16949 qualified makers like Luoyang Auto Bearing, you can be sure that the materials you buy are certified and that the sizes are correct. Auto OEMs in South Korea, the US, and Germany have been working with us for more than ten years. We've built our name by consistently delivering high-quality products, not by making big marketing claims.

These comparative advantages make it clear why picky buyers prefer certified sellers who offer technical openness along with low prices.

Procurement Guide: Buying RA15008UUCC0 Precision Cross Roller Bearings

Strategic procurement is more than just comparing prices; it also includes making sure the supply chain is stable and finding valuable long-term partners.

Benefits of Factory Direct Purchasing

When you get rid of distributor markups, unit costs usually go down by 15–30%, based on how many you buy. More importantly, direct maker relationships give you access to technical advice when choosing a product, the ability to customise it to meet OEM requirements, and the ability to be given priority when there are problems in the supply chain. Our six workshops that are only used for making bearings make sure that you can increase your production capacity as your business grows.

Identifying Verified Suppliers

Genuine manufacturers keep a lot of quality records, such as certifications for materials, reports on dimensional inspections, and studies on how well the process works. We are certified to both the ISO 9001 quality management system and the IATF 16949 vehicle quality standard. These qualifications show that we are dedicated to preventing defects rather than finding them. Asking for sample bearings with batch numbers that can be tracked lets you check them on your own before committing to large orders.

Logistics and Minimum Order Quantities

For global B2B purchasing, you need to know about shipping rules and wait times. Standard production runs for the RA15008UUCC0 Precision Cross Roller Bearing usually take three to four weeks from the time an order is confirmed until the bearings are ready to be shipped, taking into account the time needed for final grinding and heat treatment processes. Minimum order numbers depend on how complicated the specification is. Standard setups like the RA15008UUCC0 can handle smaller initial orders, but custom preload values or specialised seal materials may need large orders to justify the cost of the tools. We've improved the export documentation processes for markets in Russia, Iran, and Turkey. This makes sure that customs clearance goes smoothly by correctly classifying the goods by HS code and issuing the certificate of origin.

Warranty Coverage and After-Sales Support

Our normal guarantee covers flaws in the materials and problems with the way they were made for 18 months from the date of shipment or 12 months from the date of installation, whichever comes first. We offer bearing reconditioning services and application troubleshooting support after the warranty period is over. If you have a technical question, you can email our engineering team directly at auto@lyautobearing.com instead of going through the hassle of a call center. Purchasing managers like this because it makes it easier to quickly figure out problems in the field.These things about buying show why ATLYC has built long-term ties with medium to large companies that make industrial tools instead of just buying things from them.

Maintenance and Longevity of RA15008UUCC0 Bearings

Maintenance that is done correctly can extend the life of something and lower its total cost of ownership.

Routine Inspection Protocols

Instead of following a calendar, the times between visual inspections should match the hours that the equipment is being used. We suggest checking the quality of the seal every 500 hours of use. Look for grease leaks or worn-out rubber that could mean the seal is broken. Using dial markers to measure runout can find deformations in the mounting surface before they become worn patterns on the rollers. For P5 grade bearings, acceptable runout usually stays below 0.01mm. Deviations mean the bearings are out of alignment and need to be fixed right away.

Lubrication Best Practices

The sealed UU configuration comes with lithium-based grease that can work in temperatures from -30°C to +120°C already applied. Due to the sealed design, re-greasing is not possible. Instead, the RA15008UUCC0 Precision Cross Roller Bearing needs to be replaced when the seal integrity breaks. When something is continuously rotating at more than 600 RPM, frictional heat is created. This heat needs to be managed by designing the housing with cooling fins or forcing air to flow through it. Going over the temperature limits lowers the thickness of grease, which speeds up wear rates by a huge amount.

Common Pitfalls to Avoid

Most premature bearing problems are caused by bad fitting methods. The design of the separate outer ring needs precise clamping with star-pattern bolt tightening sequences. If the torque isn't even, the thin 8mm cross-section will be distorted, causing roller edge loading and stress concentrations in certain areas. To keep fretting rust from happening because of tiny moves between mating surfaces, mounting surfaces must meet N7 tolerance for shaft fits and H7 tolerance for housing bores. Another way something can fail is by getting sharp bits on it. Even though seals keep things safe, machining near bearing installations can produce metal fines that can get through seal lips during thermal expansion cycles. Using extra labyrinth seals or positive pressure chambers can make bearings last longer in harsh conditions.

Case Study: Robotic Arm Joint Application

An automotive tier-one supplier had elbow joints for collaborative robots that were designed to use angular contact ball bearing pairs wear out too quickly. The operational analysis showed that changes in moment load during fast braking were higher than the preload capacity of the paired bearings. This led to small movements that damaged the raceway surfaces. Putting in a single RA15008UUCC0 cross roller bearing got rid of the backlash and cut the weight of the joint by 40%. During 18 months of continual production, the redesigned joint had no failures linked to the bearings in any of the 47 units that were fitted. This meant that servicing costs were cut by a lot and production uptime went up.

These maintenance procedures keep bearings working at their best during their recommended service times, which protects your investments in capital equipment.

Why Choose Our RA15008UUCC0 Precision Cross Roller Bearing Factory Direct Supply

Since its start in 2010, Luoyang Auto Bearing Co., Ltd. has changed a lot. What started as a single automated workshop has grown into a full-fledged manufacturing company with six specialised production facilities and 120 skilled workers whose sole job is to make precision bearings, ensure quality, and develop new technologies.

Manufacturing Capability and Certifications

Our quality management system follows the strict rules of ISO 9001, and our methods for the car industry follow the strict rules of IATF 16949. These certifications show that we take a systematic approach to preventing defects, improving all the time, and making sure customers are happy. Coordinate measuring tools with a precision of 0.001 mm check the dimensions of each bearing to make sure they meet the specifications before they are shipped. Material certifications can be traced back to steel mill heat numbers, which makes the whole supply chain clear.

Competitive Cost-Performance Advantage

With factory direct prices, there are no dealer markups, and because we make so much, we can take advantage of economies of scale to lower unit costs. When you buy the RA15008UUCC0 Precision Cross Roller Bearing directly from ATLYC instead of an aftermarket dealer, you usually save 20 to 35 percent without sacrificing quality or service speed. Volume price levels can handle both small amounts for prototypes and large production runs of thousands of pieces per year.

Technical Consultation and OEM Customization

Our engineering team works with clients to help them choose the right products by looking at application loads, speeds, and environmental factors to come up with the best bearing specs. Custom changes, like changing the setup values, using special seal materials for vacuum environments, or upgrading to a higher precision grade, go through organised design review processes that make sure they can be made and that they work well. This consultative approach stops specification mistakes that cost a lot of money and show up only after the production tools have been bought.

Global Export Experience and Delivery Reliability

Over the past 15 years, we've become very good at understanding the rules and requirements for foreign shipping and export paperwork. Regular exports go to South Korea, the US, Germany, Russia, Iran, and Turkey through established logistics relationships that make sure packages arrive on time and without damage. Our export department is in charge of customs paperwork, making certificates of origin, and making sure that commercial invoices are correct. These are all administrative tasks that can trip up suppliers who aren't used to them.

Client Testimonials and Partnership Longevity

Our dedication to quality and service excellence is backed by our long-term partnerships with global bearing distributors and original equipment manufacturers (OEMs). Customers like how quickly we respond—when they ask about technology issues, we get back to them with engineering answers within 24 hours instead of general customer service answers. When problems happen in the field, we don't automatically reject warranty claims. Instead, we send applications engineers or set up sample analysis to help everyone figure out what's going on. Choosing ATLYC as your provider for precision cross roller bearings means working with a company that cares about your success and isn't just there to fill orders.

Conclusion

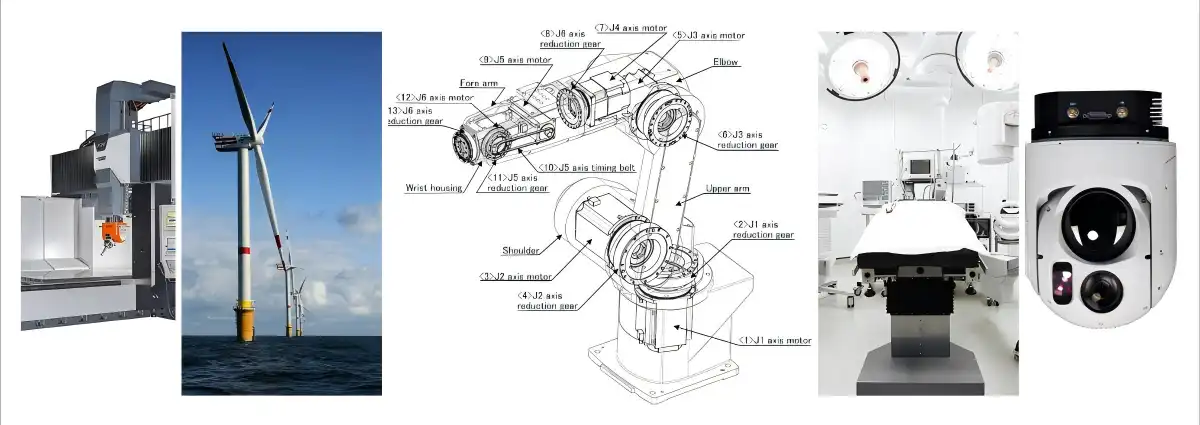

In industrial robots, machining centers, medical imaging equipment, and semiconductor production, the RA15008UUCC0 Precision Cross Roller Bearing is an example of high-tech engineering that meets the needs of difficult uses. Its very thin profile, ability to carry loads in multiple directions, and accuracy down to the micron level make it a must-have in situations where space efficiency and accuracy are needed. When you buy from an authorised maker directly, you get real goods at low prices and with technical help that you can't get from a commodity distributor. Understanding the specifications, checking the suppliers, and following the upkeep procedures will help your bearings work better and last longer. This will protect your equipment investments and keep your operations running at full capacity, which is important for manufacturing competitiveness.

FAQ

What distinguishes the RA15008UUCC0 from standard ball bearings?

Cross roller bearings put cylindrical rollers on V-grooved raceways so they can handle radial, axial, and moment loads all at the same time in a single, small unit. Because they are point-contact, standard ball bearings are less rigid and need to be mounted in pairs for combined load uses. The line-contact design of the RA15008UUCC0 Precision Cross Roller Bearing makes it 3–4 times stiffer and gets rid of backlash through CC0 preload.

How can buyers verify bearing authenticity when purchasing online?

Genuine companies give material certificates that link steel to specific mill heat numbers, dimensional inspection reports from calibrated measuring tools, and batch tracking codes that are laser-etched on the bearing surfaces. Before placing an order for production units, you should ask for sample units and do your own measurements and hardness tests. Certifications like ISO 9001 and IATF 16949 show that quality management is organised, not just making claims about quality when it suits the company.

What maintenance extends cross roller bearing service life?

Keep the mounting surface clean during installation so that the shaft and case meet the required specs. This will stop fretting rust. Make sure that the operating temperatures stay below the thermal limits of the lubricant, which are usually 120°C for standard greases. Check the integrity of the seals regularly and replace the bearings if grease leakage shows that the seals are broken, since regreasing sealed designs is not possible. Avoid contact loading and make sure the parts are perfectly aligned to get rid of edge loading situations that make wear happen faster.

Partner with ATLYC for Your Precision Bearing Needs

ATLYC wants procurement managers, design engineers, and OEM partners to see what it's like to work directly with a well-known company that makes precision cross roller bearings. For competitive quotes on the RA15008UUCC0 Precision Cross Roller Bearing, help with custom specifications, or application engineering advice, please email our technical sales team at auto@lyautobearing.com. We are an ISO 9001 and IATF 16949 qualified provider, so we can give you the consistent quality, production scalability, and technical know-how that your important applications need. We have also been serving global industrial markets for 15 years.

References

1. Harris, T.A., and Kotzalas, M.N. (2006). Advanced Concepts of Bearing Technology: Rolling Bearing Analysis. CRC Press, Boca Raton.

2. Eschmann, P., Hasbargen, L., and Weigand, K. (1985). Ball and Roller Bearings: Theory, Design and Application. John Wiley & Sons, Chichester.

3. ISO 492:2014. Rolling bearings - Radial bearings - Geometrical product specifications (GPS) and tolerance values. International Organization for Standardization, Geneva.

4. IATF 16949:2016. Quality management system requirements for automotive production and relevant service parts organizations. International Automotive Task Force.

5. Budynas, R.G., and Nisbett, J.K. (2020). Shigley's Mechanical Engineering Design, 11th Edition. McGraw-Hill Education, New York.

6. Khonsari, M.M., and Booser, E.R. (2017). Applied Tribology: Bearing Design and Lubrication, 3rd Edition. John Wiley & Sons, Hoboken.
