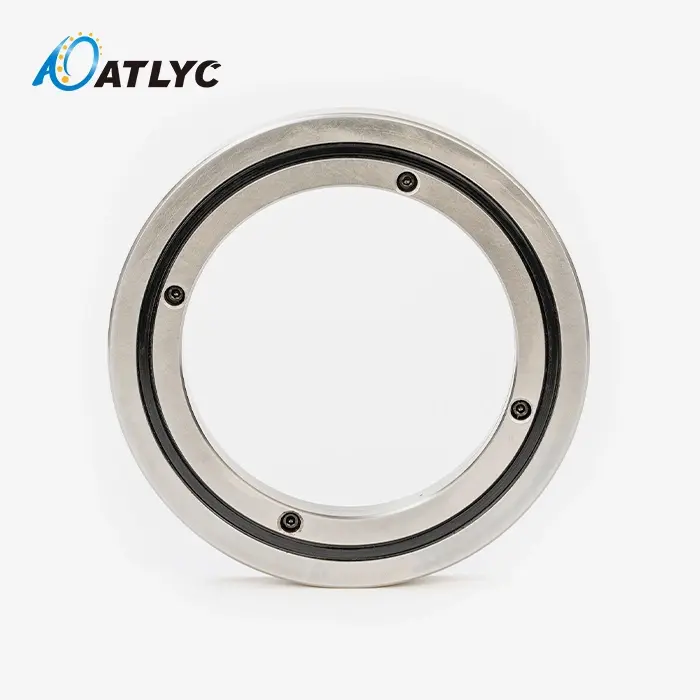

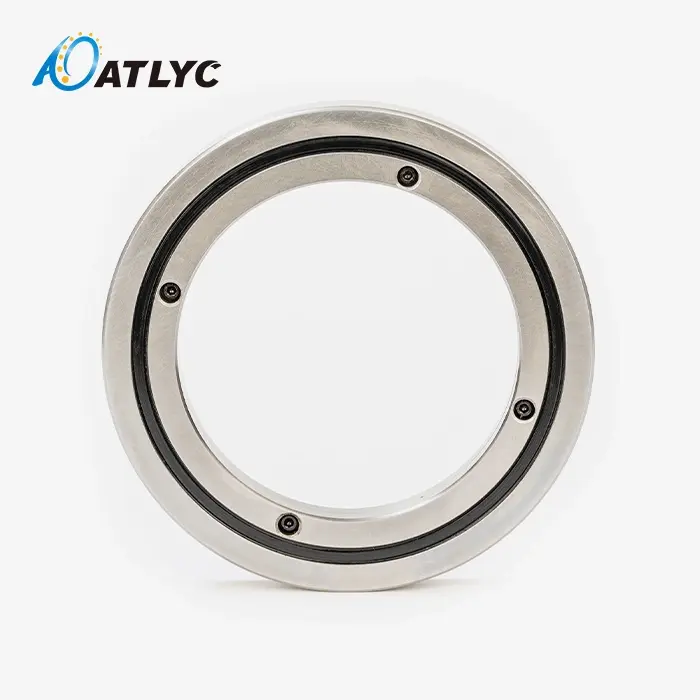

RE Series Crossed Roller Bearings for Automation Solutions

The RE Series Crossed Roller Bearing gives you the performance you need when you're making industrial equipment that needs to rotate very accurately and hold a lot of weight. This special bearing has an integral outer ring design and a split inner ring structure. This makes it ideal for uses where the accuracy of the inner ring spinning is very important. In contrast to traditional bearing arrangements, this single-unit system handles radial, axial, and moment loads all in one small assembly. This makes your design easier while improving performance reliability in harsh automation settings.

Understanding RE Series Crossed Roller Bearings

The RE Series Crossed Roller Bearing is a big step forward in precision bearing technology. It was made for uses that need very accurate spinning and support for loads moving in multiple directions. This high-tech bearing design uses a unique crossed-roller setup in which cylinder-shaped rollers are placed orthogonally within precision-ground V-groove raceways. This creates 90-degree contact points that allow for simultaneous support of loads moving in multiple directions.

Structural Design and Configuration

The structure of the bearing has an outer ring that is continuous and an inner ring unit that can be taken apart. This arrangement lets you precisely place the rollers while keeping the outer ring's structural integrity. The split inner ring design makes it easier to put together and lets you change the preload perfectly during installation, so the system works the same way in all kinds of operational situations. Precision-molded cage dividers separate each cylinder roller from the others. This keeps the rollers from touching and makes sure that the load is spread evenly. This setup gets rid of the skewing issues that normally happen with roller bearings, so the spinning is smooth and constant, with little change in friction.

Technical Specifications and Materials

The inner diameters of RE series crossing roller bearings run from 20 to 1100 mm, the outer diameters from 70 to 1500 mm, and the widths from 12 to 110 mm. These bearings are made of high-quality materials, like Gcr15 and Gcr15SiMn steel, which makes them very durable and able to hold a lot of weight in tough circumstances. The process for making precision products gets accuracy grades of P6, P0, P5, P4, and P3. These grades meet the strict international standards needed for precision automation uses. Temperature stability stays the same across all industrial working ranges, so the product will work with the RE Series Crossed Roller Bearing in a wide range of circumstances.

Advantages and Performance of RE Series Crossed Roller Bearings in Automation

The crossed-roller design makes it possible to carry a lot of weight in all directions. You can get radial load ratings that are up to 85% higher than ball bearings of the same size, and axial load ratings that are up to 70% higher than radial ratings. The ability to handle moment loads is especially useful in elevated situations, where regular bearings would need extra support structures.

Superior Load Handling Capabilities

Modern robotic systems need bearings that can handle a lot of different loading situations at the same time. These crossed roller bearings are great for uses with loads that come from more than one direction. They can handle radial forces, axial thrust loads, and overturning moments all in one bearing unit. This all-around load control gets rid of the need for various bearing arrangements, which makes the system simpler and less likely to break. The special roller design spreads the loads out evenly across the track surface, which reduces stress points and increases the life of the machine. This even spread of load is very important in robotic applications where changing forces are always testing the performance of bearings.

Precision and Accuracy Benefits

A big strength of this type of bearing is that it can rotate very accurately. When you mix the rigid raceway shape with the best preload settings, you get running accuracy within 5–10 micrometers, which is what precision positioning systems need. The low contact coefficient, which is usually between 0.002 and 0.004, makes sure that motion starts smoothly and greatly lowers the amount of power that the drive motor needs. If you compare the compact design shape to dual-bearing setups, you can save up to 60% of room. This spatial efficiency is very important in industrial robots, where limitations on weight and space directly affect how well the system works and how flexible it can be used.

Applications of RE Series Crossed Roller Bearings in Industrial Automation

The special features of the RE series bearings make them very useful for industrial control uses. These precise parts are used a lot in robots, CNC machine centers, the production of medical equipment, and the production of semiconductors, all of which require high levels of accuracy and dependability.

Robotics and Robotic Systems

In industrial robots, these bearings are very important for articulating joints, especially in the waist and arm parts, where the inner ring turns to move things. Because they can handle high moment loads, they can keep the same exact position even when big loads are being carried on their sides. These bearings are very important for six-axis industrial robots to stay accurate during complex motion patterns. Because the bearing has low friction, it makes motion patterns smoother, the RE Series Crossed Roller Bearing, and uses less energy in robotic manipulators. Because it is small, the design lets robot makers make joint combinations that work better without lowering performance or dependability.

CNC Machining and Precision Equipment

These bearings are used in rotary indexing tables and precision rotary tables on CNC machining centers, where extra strength is needed to handle changing cutting forces and noise. While holding heavy workpieces and tool systems, the bearings keep the axis straight in complicated, coolant-filled machining environments. Ultra-precise motion control is needed for measuring tools and devices used to make integrated circuits (ICs). The small amount of runout makes sure that measurements are correct and parts are placed correctly during the production process.

Medical and Optical Applications

The bearing's ability to provide smooth, slip-free motion in important medical devices is shown by its use in medical tools. These bearings are used to support moving parts in CT scanner gantries while keeping the process quiet, which is important for patient comfort and accurate diagnosis. Optical alignment systems need these bearings' high level of steadiness so that sensitive optical components can be placed precisely. Because they don't vibrate much, they are important for keeping the optics aligned in difficult measurement and checking tasks.

Maintenance, Installation, and Operational Guidelines

Installing and maintaining bearings correctly has a big effect on how well they work and how long they last. Knowing the right steps will make sure that the bearing works at its best for as long as it lasts and will keep you from having to pay for unnecessary repairs and downtime.

Installation Best Practices

Before you start installing, make sure that all of the mounting areas are clean, flat, and meet the right standards. The combined outer ring design makes fitting easier than split outer ring designs, but it is still important to handle things correctly to keep precision-ground surfaces from getting damaged. Follow the manufacturer's instructions for setting the preload correctly, taking into account the needs of the product and the expected loading circumstances. The right preload makes sure that the wheels and raceways make good contact while also avoiding too much stress that could shorten the life of the bearing. The choice of lubricant and how it is used are very important for long-term performance. Make sure you use high-quality bearing greases that are made for crossed roller uses and that the right amount of grease is spread out evenly throughout the bearing system.

Routine Maintenance and Monitoring

Set up regular inspection plans to keep an eye on the state and performance of the bearings. Visual checks should look for the right amount of grease, strange wear patterns, and signs of damage or contamination. Temperature tracking tells you a lot about the state of a bearing. For example, sudden temperature rises could mean that the bearing isn't properly oiled, has too much preload, or is starting to have wear problems. Vibration analysis can find early signs of damage to the track or rollers before they break in a big way. When to re-oil depends on how the machine is being used, how much load it is carrying, the RE Series Crossed Roller Bearing, and the surroundings. Intervals are usually longer in clean rooms than in heavy industrial settings, but regular tracking makes sure that the right amount of lubrication is used throughout the service time.

Procurement Guide for RE Series Crossed Roller Bearings

To buy RE Series Crossed Roller Bearing parts successfully, you need to know what the seller can do, what the quality standards are, and when you can expect the parts to arrive. Building ties with reputable manufacturers will guarantee a steady supply of precision bearings that meet the needs of your particular application.

Supplier Selection and Qualification

Check out possible providers' quality certifications, manufacturing skills, and history of making precision bearings before choosing one. Getting ISO 9001 and IATF 16949 certifications shows that you are dedicated to quality management systems, which are necessary for consistent bearing performance. When planning for production growth or changing demand levels, manufacturing capacity and scalability become very important. Suppliers who already have production systems in place can handle both small orders for prototypes and large orders for mass production. Premium suppliers are different from basic suppliers because they offer technical help. Having access to application engineering knowledge, the ability to make unique designs, and ongoing technical support is very helpful throughout the duration of a product.

Pricing and Lead Time Considerations

Volume pricing systems usually save you a lot of money when you buy more, but the minimum order requirements need to work with how you handle your goods. Set clear price deals that take into account changes in the cost of materials and the value of different currencies when buying things from other countries. Lead times are very different depending on the size of the bearing, the level of accuracy needed, and the level of customization. Standard configurations might be ready to ship in a few weeks, but special specs might take months to create, make the tools, and finish production. When planning logistics, things to think about include how to package precision parts, how to ship things in a way that protects the bearing surfaces, and how to fill out customs forms for foreign orders. Planning operations well keeps things from getting damaged during transport and makes sure they get delivered on time to meet production plans.

Conclusion

The RE Series Crossed Roller Bearing is one of the most important technologies in current robotic systems. It works perfectly in situations that need accuracy, dependability, and a small size. These advanced bearing solutions solve important problems in the industry by mixing radial, axial, and moment load powers into a single assembly. This makes designing equipment easier while also improving its performance. As automation technology keeps getting better, these precision bearings will still be necessary for the next wave of robots, CNC machines, and precision industrial solutions.

FAQ

1. What makes the RE Series different from other crossed roller bearings?

The RE Series Crossed Roller Bearing features an integral outer ring with a separable inner ring design, optimizing it for applications requiring high inner ring rotational precision. This configuration differs from RB series bearings, which utilize integral inner and outer rings with outer ring plugs.

2. What size ranges are available for RE Series bearings?

RE Series bearings accommodate inner diameters from 20-1100mm, outer diameters ranging 70 to 1500mm, and widths spanning 12-110mm. This extensive size range covers applications from compact robotics to large-scale industrial machines.

3. What accuracy grades can be achieved with RE Series bearings?

These precision bearings achieve accuracy grades of P6, P0, P5, P4, and P3, which means they meet the strict needs of precision automation systems. For important positioning uses, higher accuracy grades offer tighter tolerances.

4. How do load capacities compare to conventional ball bearings?

RE Series bearings can handle up to 85% more radial load than ball bearings of the same size, and they can handle up to 70% more axial load. The ability to handle moment loads is especially useful in extended situations.

5. What maintenance requirements should be expected?

Regular checks for lubrication, temperature, and eye inspections make sure that everything works at its best. When to re-oil depends on how the machine is being used, but good care habits make bearings last a lot longer.

6. Which industries benefit most from RE Series bearings?

Industrial robots, CNC machining centers, medical equipment, semiconductor manufacturing, and precise measuring systems are some of the main areas where accuracy and dependability are still very important for business success.

Partner with ATLYC for Your RE Series Crossed Roller Bearing Requirements

ATLYC has been making high-quality precision bearings for fifteen years and has ISO 9001 and IATF 16949-approved quality systems that serve the world's top robotics companies. Our six specialized workshops, RE Series Crossed Roller Bearing, allow us to make a wide range of products. This means that we can always offer high-precision bearings for difficult automation applications. As a well-known company that makes RE Series Crossed Roller Bearing, we use cutting-edge production technology and strict quality control to make sure that the bearings we sell meet the strictest performance standards.

Email our technical team at auto@lyautobearing.com to talk about your unique bearing needs and look into choices for customization that will work with your automation systems. Our experienced engineering staff offers full application support, from original design advice to ongoing technical support, ensuring that the right bearings are chosen and that your equipment works well for as long as it does.
