RE2508UUCC0 Cross Roller Bearing for Semiconductor Equipment

The RE2508UUCC0 cross roller bearing represents a specialised precision component engineered specifically for semiconductor manufacturing equipment where contamination control, dimensional compactness, and zero-backlash operation are non-negotiable. Featuring a split inner ring and integrated outer ring design optimised for outer race rotation, this bearing delivers simultaneous radial, axial, and moment load capacity within a footprint of just a 25 mm inner diameter, 41 mm outer diameter, and 8 mm width—critical attributes for cleanroom-compatible automation systems.

Introduction

Semiconductor fabrication environments demand components that combine micron-level precision with absolute reliability. Within wafer handling robots, die bonders, and inspection equipment, even slight rotational inaccuracies or particulate contamination can result in costly production defects. The RE2508UUCC0 cross roller bearing addresses these challenges through its orthogonal roller arrangement and dual-sealed (UU) configuration, which prevents particulate intrusion while maintaining the low friction essential for smooth, repeatable motion.

Procurement professionals sourcing components for semiconductor equipment face unique pressures: supply chain stability, adherence to international quality standards like ISO 9001 and IATF 16949, and demonstrated manufacturing scalability. We understand these requirements deeply. Since our establishment in 2010, Luoyang Auto Bearing Co., Ltd. has evolved from a single workshop operation into a comprehensive bearing manufacturer with six specialised production facilities and 120 dedicated personnel. Our ISO 9001 and IATF 16949 certifications reflect our commitment to consistent quality, while our export experience across South Korea, the United States, Germany, Russia, Iran, and Turkey demonstrates our capability to meet diverse international specifications.

Selecting the correct bearing supplier impacts more than component cost—it influences equipment uptime, product yield, and long-term maintenance expenses. This guide provides procurement managers and design engineers with the technical clarity and sourcing intelligence needed to make confident decisions regarding RE series cross roller bearings for semiconductor applications.

Understanding the Specifications and Features of RE2508UUCC0 Cross Roller Bearing

Dimensional Specifications and Compatibility

Precision semiconductor equipment requires exact dimensional matching to ensure proper load distribution and rotational accuracy. The RE2508UUCC0 delivers these specifications: 25mm bore diameter, 41mm outer diameter, and 8mm width. This compact profile makes it ideal for robotic joint assemblies and rotary indexing tables where installation space is severely constrained. Engineers can verify compatibility by cross-referencing these dimensions against mounting bore tolerances, typically h6 for the shaft and H7 for the housing in precision applications.

Material Composition and Manufacturing Quality

High-carbon chromium bearing steel serves as the foundation for this bearing's performance. Manufactured from GCr15 or GCr15SiMn (equivalent to AISI 52100), the components undergo precision heat treatment to achieve 58-64 HRC hardness. This metallurgical approach ensures resistance to contact fatigue under continuous cyclic loading—a critical factor in semiconductor equipment operating in extended production runs. The material's uniform grain structure, achieved through controlled forging and annealing processes, contributes to consistent performance characteristics across production batches. We maintain strict incoming material inspection protocols and statistical process control throughout machining operations. Our quality management system, certified under ISO 9001 and IATF 16949 standards, includes dimensional verification using coordinate measuring machines (CMM) and surface finish analysis to guarantee compliance with specified tolerances. This attention to manufacturing quality translates directly to reduced defect rates and extended service life in your equipment.

Cross Roller Design Principle for Semiconductor Applications

The fundamental advantage of cross roller bearings lies in their orthogonal roller arrangement. Cylindrical rollers are positioned at 90-degree intervals within precision-ground V-groove raceways, creating a configuration where alternating rollers handle perpendicular load vectors. This design enables a single compact bearing to replace multiple conventional bearing arrangements, significantly reducing assembly complexity and potential error accumulation in semiconductor automation systems. The split inner ring construction facilitates installation while maintaining structural integrity during operation. The integrated outer ring ensures superior rotational accuracy when the outer race serves as the rotating element—a common configuration in semiconductor wafer handling systems. The CC0 clearance specification creates a controlled preload condition through negative clearance (typically -0.002 to -0.008 mm), eliminating internal play and maximising system rigidity. This preload remains stable across operational temperature ranges, maintaining positioning accuracy essential for photolithography and inspection processes.

Dual sealing (UU designation) provides effective contamination barriers without significantly increasing rotational torque. The synthetic rubber seals prevent particulate intrusion while accommodating the thermal expansion differentials common in semiconductor cleanroom environments. This sealing approach maintains bearing integrity without requiring external protective enclosures that would complicate equipment design.

Precision Classes and Performance Tolerances

Available in multiple accuracy grades—P6, P0, P5, P4, and P2—the RE2508 model accommodates varying precision requirements. Semiconductor equipment typically specifies P5 or higher grades, which limit radial runout to 2.5 microns or less. Our manufacturing processes include specialised grinding and superfinishing operations that consistently achieve these tolerances. The integrated outer ring design inherently provides better runout precision compared to split outer ring configurations, making RE series bearings particularly suitable for outer ring rotation applications.

Maintenance Considerations for Extended Service Life

Proper installation and lubrication management directly influence bearing lifespan. Pre-lubricated with specialised low-outgassing grease compatible with cleanroom environments, the RE2508UUCC0 requires no immediate maintenance upon installation. Monitoring rotational torque during equipment operation provides early indication of seal degradation or contamination ingress. We recommend establishing baseline torque measurements during commissioning and implementing periodic monitoring as part of preventive maintenance protocols.

Temperature management proves equally important. While cross roller bearings tolerate moderate thermal conditions, maintaining ambient temperatures between 0°C and 40°C optimises lubricant performance and dimensional stability. Semiconductor fabrication environments typically provide controlled thermal conditions that align well with these parameters.

RE2508UUCC0 vs. Other Bearing Types: Making the Right Choice for Semiconductor Equipment

Performance Comparison with Cylindrical Roller Bearings

Standard cylindrical roller bearings excel at radial loads but require separate thrust bearings for axial load capacity. The RE2508UUCC0 cross roller bearing eliminates this dual-bearing requirement through its crossed roller configuration, which simultaneously handles radial, axial, and moment loads. This consolidation reduces assembly height by approximately 40% compared to stacked bearing arrangements—a significant advantage in compact semiconductor robots where every millimetre impacts range of motion and payload capacity. Rotational accuracy represents another differentiator. Cylindrical roller bearings typically achieve ISO Class 6 or Class 5 precision in standard configurations. Cross roller bearings like the RE2508 consistently deliver Class 5 or better performance due to their integrated structure and preloaded design. This enhanced accuracy translates to improved wafer positioning repeatability and reduced vibration transmission—factors directly affecting semiconductor manufacturing yield.

Comparison with Alternative Cross Roller Models

Within the cross roller bearing category, RE series models differ from RB series counterparts through their ring configuration. RE bearings feature split inner rings and integrated outer rings, optimising them for applications in which the outer ring rotates. RB series bearings employ the opposite configuration—split outer rings—making them preferable when the inner ring rotates. Semiconductor wafer handling systems commonly require outer ring rotation to simplify electrical connections and minimise rotating mass, making RE series bearings the natural specification. Larger slewing bearings offer higher load capacities but introduce unnecessary weight and cost for compact semiconductor equipment. The RE2508UUCC0's thin-section design provides exceptional load capacity relative to its size—handling 3 to 4 times the load of equivalently sized ball bearings—without the installation complexity of slewing rings. This efficiency makes it ideal for robot wrist joints and small rotary tables where weight minimisation directly improves dynamic performance.

Cost-Benefit Analysis for Procurement Decisions

The initial purchase price represents only one component of the total ownership cost. Cross-roller bearings command premium pricing compared to standard ball or cylindrical roller bearings, yet deliver substantial lifecycle value through extended service intervals and reduced maintenance downtime. A semiconductor die bonder operating 20 hours daily may experience bearing replacement intervals of 18-24 months with standard bearings. RE series cross roller bearings routinely exceed 36-month service life under similar conditions, reducing unplanned downtime and cumulative replacement costs. The elimination of multiple bearing arrangements also reduces inventory complexity. Rather than stocking separate radial and thrust bearings plus associated hardware, procurement teams maintain a single part number, simplifying supply chain management and reducing obsolescence risk. Our experience serving OEMs across multiple continents has demonstrated that customers who transition to integrated cross roller bearing solutions typically achieve 15-20% reductions in bearing-related inventory carrying costs within two years.

Application-Specific Selection Guidance

When should procurement professionals specify the RE2508UUCC0 over alternative solutions? Several factors guide this decision:

• Equipment envelope constraints: Applications with severe space limitations benefit most from the bearing's compact profile and consolidated load-handling capability. Robotic joints and compact rotary stages represent ideal use cases.
• Load characteristics: Equipment experiencing simultaneous radial and moment loads—common in cantilever-mounted wafer handlers—gains maximum advantage from cross roller designs. Pure radial load applications may achieve adequate performance with simpler cylindrical roller bearings at lower cost.
• Precision requirements: When rotational accuracy directly impacts product quality, as in semiconductor inspection systems, the RE2508's inherent precision justifies its premium pricing. Less critical positioning applications might accept reduced accuracy in exchange for cost savings.
• Operating environment: Cleanroom compatibility requires sealed bearing configurations. The RE2508UUCC0's UU seals provide this protection without requiring external shields that complicate mechanical design.

Our applications engineering team assists customers in evaluating these factors against specific equipment requirements. We provide detailed load calculations and life expectancy projections based on your operational profiles, enabling data-driven procurement decisions rather than specifications based solely on dimensional fit.

Procurement Guide: How to Buy RE2508UUCC0 Cross Roller Bearing

Identifying Authorised Distributors and Genuine OEM Components

Counterfeit bearings represent a significant risk in industrial procurement, particularly for high-value precision components. Genuine RE2508UUCC0 bearings exhibit specific manufacturing marks, packaging characteristics, and documentation that verify authenticity. Authorised distributors give certificates of conformance that link to production batches, quality inspection reports, and warranty coverage that protect against premature failure. We maintain direct relationships with OEMs and authorised distributors throughout our key markets in North America, Europe, and Asia. Our ISO 9001 and IATF 16949 certifications provide procurement professionals with independent verification of our quality management systems. When evaluating potential suppliers, request documentation confirming certification status and enquire about inspection protocols for incoming materials and finished products.

Pricing Factors and Negotiation Strategies

Multiple variables influence cross roller bearing pricing beyond basic dimensional specifications. Material selection impacts cost—GCr15SiMn bearings command slight premiums over standard GCr15 due to enhanced hardenability and impact resistance. Precision grade significantly affects pricing, with P2 class bearings costing approximately 40-60% more than P5 equivalents due to additional grinding operations and tighter process controls. Order volume presents the most significant pricing lever available to procurement teams. Our production planning accommodates both small-batch orders for prototype development and large-volume contracts for series production. Volume commitments enable us to optimise manufacturing schedules and raw material procurement, and we pass the savings on to customers through tiered pricing structures. Annual blanket purchase orders with scheduled releases provide price stability while maintaining inventory flexibility.

Lead time requirements also influence pricing. Standard RE2508UUCC0 configurations in P5 precision typically ship within 3-4 weeks from our facility. Expedited production incurs premium charges but enables project schedule recovery when equipment delays threaten production ramp timelines. We maintain safety stock of common configurations to support customers' urgent requirements.

OEM versus Aftermarket Solutions

OEM bearings manufactured to original equipment specifications ensure dimensional interchangeability and performance equivalence with initially installed components. Aftermarket alternatives may offer cost savings but introduce risks regarding material quality, dimensional accuracy, and long-term reliability. Semiconductor equipment, given its precision requirements and operational value, typically justifies OEM component specifications to minimise performance variability. We manufacture both OEM components under private label arrangements and direct-sale products under our own branding. Both categories undergo identical quality control processes and material verification. The distinction lies primarily in packaging and documentation rather than fundamental product quality. Procurement teams can achieve cost optimisation by specifying manufacturer-direct products for maintenance spares while reserving OEM-branded components for warranty-critical applications.

Documentation and Compliance Requirements

International trade regulations and industry standards mandate specific documentation for bearing procurement. Our shipments include commercial invoices, packing lists, certificates of origin, and material certifications as standard practice. Customers requiring additional documentation—such as REACH compliance declarations, RoHS certifications, or conflict minerals reporting—should specify these requirements during quotation. We maintain compliance databases and can provide supplementary documentation without extended lead times. Our experience serving customers across South Korea, the United States, Germany, Russia, Iran, and Turkey has developed our capabilities in navigating diverse regulatory environments. We proactively monitor regulatory changes affecting bearing materials and manufacturing processes, ensuring continued compliance without requiring customers to track evolving requirements independently.

Enhancing Semiconductor Equipment Performance with RE2508UUCC0 Cross Roller Bearings

Precision Improvement and Vibration Reduction

Semiconductor manufacturing equipment operates at the intersection of mechanical precision and electronic control systems. Even minor mechanical vibrations introduce positioning errors that degrade product quality. The RE2508UUCC0's preloaded configuration eliminates internal clearance that would otherwise generate micro-movements during load reversals. This zero-backlash operation enables tighter servo control loop gains, improving dynamic positioning accuracy by 20-30% compared to clearance-fit bearing arrangements. The bearing's high contact ratio—achieved through the crossed roller design's line contact geometry—distributes loads across larger surface areas than point-contact ball bearings. This distribution reduces contact stress and the resulting elastic deformation, maintaining consistent positioning accuracy across varying load conditions. Wafer inspection systems benefit particularly from this characteristic, as optical measurement accuracy depends directly on stage positioning stability.

Load Capacity Enhancement for Equipment Uptime

Modern semiconductor equipment trends toward larger wafer sizes and increased throughput, both factors that intensify bearing loads. The RE2508UUCC0 handles combined radial, axial, and moment loads that would require multiple conventional bearings. A typical robot wrist joint experiences moment loads as manipulated payloads shift positions. Cross roller bearings accommodate these complex load vectors without the binding or premature wear common in inadequately specified bearing arrangements. Enhanced load capacity translates directly to equipment reliability. Bearings operating below their rated capacity experience exponentially extended service life according to bearing life calculation standards (ISO 281). By providing substantial load capacity within a compact envelope, the RE2508UUCC0 enables conservative loading that maximises uptime—a critical factor in semiconductor fabrication where production interruptions carry severe economic penalties.

Case Study: Efficiency Gains in Semiconductor Manufacturing

A North American semiconductor equipment manufacturer recently integrated RE2508-series cross roller bearings into their wafer inspection platform redesign. Previously employing paired angular contact ball bearings, their system required periodic preload adjustment and experienced positioning drift as bearings wore. After transitioning to RE2508UUCC0 bearings with controlled negative clearance, the manufacturer documented several measurable improvements:

Positioning repeatability improved from ±8 microns to ±3 microns across the stage's operational range. Maintenance intervals extended from 18 months to 32 months under continuous operation. Most significantly, the simplified bearing arrangement reduced assembly time by 35%, lowering manufacturing costs for the equipment platform. These results demonstrated the cross roller bearing's value proposition beyond component cost—delivering system-level benefits that justified the initial premium pricing.

Emerging Technologies and Smart Monitoring Integration

The bearing industry continues advancing toward condition monitoring integration. While the RE2508UUCC0 employs proven mechanical design principles, emerging sensor technologies enable real-time health monitoring without compromising the bearing's compact profile. Temperature sensors embedded in mounting hardware detect thermal anomalies indicating lubrication degradation or seal failure. Vibration monitoring systems identify characteristic frequencies associated with roller defects before they progress to catastrophic failure. We actively collaborate with automation suppliers to develop mounting solutions that accommodate sensor integration without requiring bearing redesign. These partnerships reflect our commitment to supporting Industry 4.0 initiatives within semiconductor manufacturing. Predictive maintenance strategies enabled by condition monitoring reduce unplanned downtime while optimising bearing life—customers replace components based on actual condition rather than conservative time-based schedules.

Advanced lubrication technologies also enhance performance in demanding semiconductor applications. Low-outgassing synthetic lubricants minimise contamination risk in vacuum processes common in advanced packaging equipment. We continuously evaluate new lubricant formulations and can recommend application-specific solutions based on your equipment's operational envelope.

Conclusion

The RE2508UUCC0 cross roller bearing delivers the precision, contamination resistance, and compact load capacity essential for semiconductor manufacturing equipment. Its split inner ring design, integrated outer ring, and controlled preload configuration provide measurable advantages over conventional bearing arrangements—advantages that translate directly to improved equipment performance and reduced lifecycle costs. Procurement professionals sourcing components for semiconductor applications benefit from partnering with manufacturers demonstrating both production scalability and unwavering commitment to international quality standards. Our fifteen-year evolution from a single workshop to a comprehensive bearing manufacturer with ISO 9001 and IATF 16949 certifications reflects exactly this combination of growth capability and quality focus. The semiconductor industry's precision demands align perfectly with our manufacturing philosophy and continuous improvement culture.

FAQ

What operational temperature range suits semiconductor manufacturing applications?

The RE2508UUCC0 cross roller bearing operates effectively within -10°C to +80°C temperature ranges, though optimal performance occurs between 0°C and 40°C—conditions typical of semiconductor cleanroom environments. Standard grease lubrication maintains its properties throughout this range. Applications approaching temperature extremes may require specialised lubricants to ensure consistent performance.

How does bearing lifespan vary under different load conditions?

Bearing life follows ISO 281 calculation standards, where life expectancy varies inversely with load intensity. Operating at 50% of rated load capacity typically extends service life by a factor of eight compared to full-rated operation. Semiconductor equipment generally operates conservatively, and customers commonly achieve 30,000-40,000 operational hours before replacement becomes necessary, assuming proper installation and contamination control.

Which sourcing channels provide genuine warrantied products?

Authorised distributors and direct manufacturer relationships provide the most reliable sourcing channels. Verify supplier credentials through certification documentation and request material certifications with each shipment. ATLYC maintains direct customer relationships and provides warranty coverage backed by our quality management systems. Contact auto@lyautobearing.com to establish verified sourcing for RE series cross roller bearings.

Partner with ATLYC for Reliable RE2508UUCC0 Cross Roller Bearing Supply

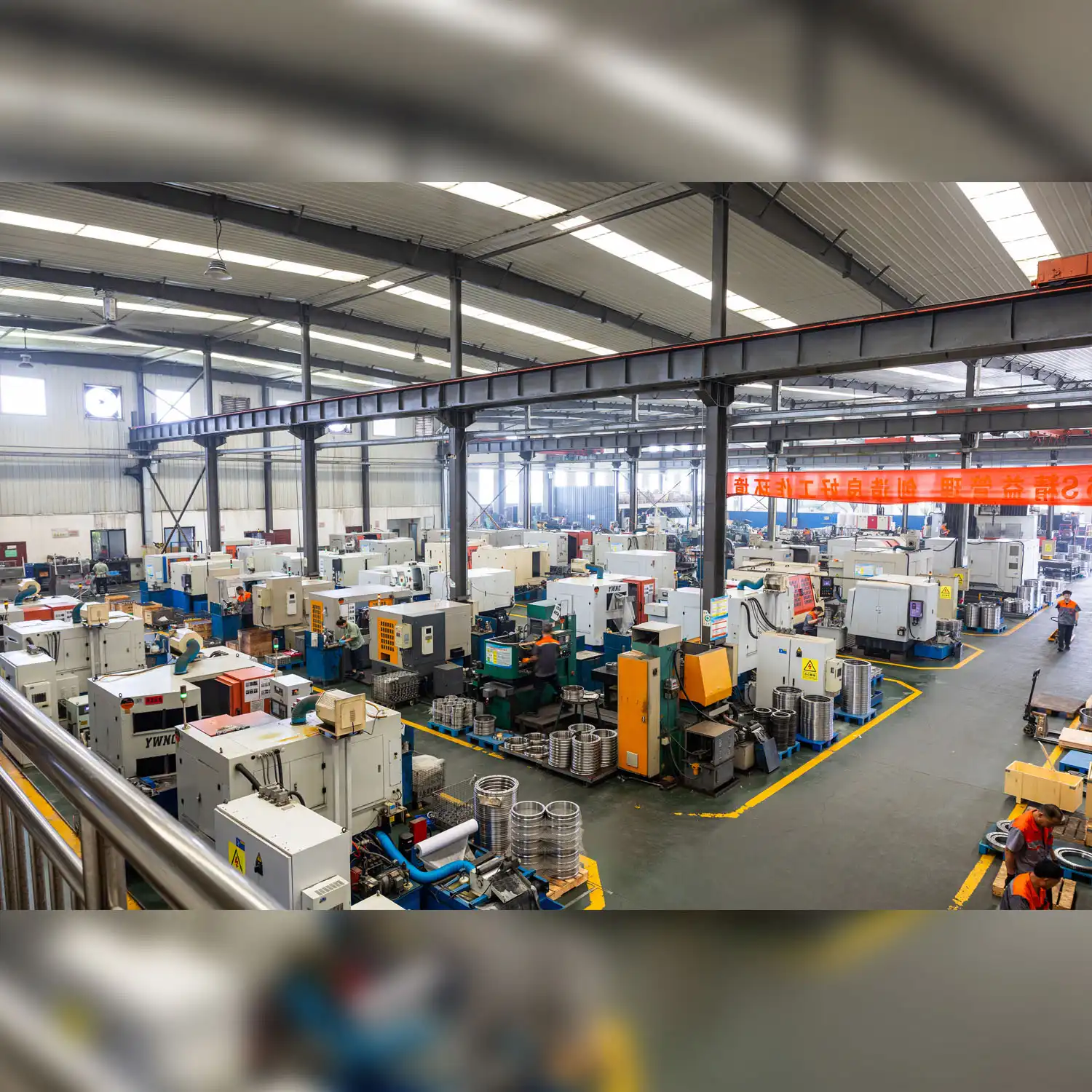

ATLYC brings fifteen years of manufacturing expertise and ISO 9001/IATF 16949-certified quality systems to your semiconductor equipment component needs. Our six specialised workshops and 120 skilled personnel deliver consistent production capacity for RE2508UUCC0 cross roller bearing supply, supporting both prototype development and volume production requirements. We serve mid-to-large OEMs and global distributors across South Korea, the United States, Germany, and emerging markets, providing reliable lead times and competitive pricing structures that recognise the value of long-term partnerships. Our engineering team provides application-specific guidance, load calculations, and customisation capabilities that extend beyond standard catalogue specifications. Contact us at auto@lyautobearing.com to discuss your precision bearing requirements with an experienced RE2508UUCC0 cross roller bearing manufacturer committed to supporting your semiconductor manufacturing success through technical expertise and supply chain reliability.
