Why Choose a YRT 150 High Precision Rotary table bearing?

With micron-level precision under enormous combined loads required on your manufacturing line, the bearing you choose is not a little detail, but the basis of your output quality. The YRT 150 High Precision Rotary table bearing is an axial-radial combined unit designed for applications where tilting stiffness, zero-backlash placement, and extended service life are non-negotiable requirements. This rotary table bearing is 150mm (ID) x 240mm (OD) x 40mm breadth and meets the P4/P2 ISO accuracy standards, giving considerable performance benefits for CNC machining machines, indexing heads, and automation systems.

Understanding the YRT 150 Rotary Table Bearing: Specifications & Features

Before evaluating any bearing for procurement, understanding its dimensional and mechanical baseline is essential. The table below summarizes the core technical parameters of the YRT 150 High Precision Rotary Table Bearing:

These specifications position the YRT 150 rotary table bearing as a reliable core component for fourth- and fifth-axis CNC rotary tables, precision indexing heads, and medical metrology equipment.

Integrated Three-in-One Structural Design

The package is small and includes a thrust YRT 150 high-precision rotary table bearing, radial bearing, and indexing mechanism. The assembly comprises an outer ring (fixed ring), inner ring (spinning ring), precise steel balls and a cage. This approach removes the complication of having to assemble many components, decreases the total volume of the mechanical structure, and simplifies the installation process – a direct advantage for both equipment designers and maintenance engineers.

Double-Row Angular Contact Ball Arrangement

Two rows of steel balls are placed with 45° or 60° contact angles. The YRT 150 axial-radial bearing can take axial loads, radial loads, and tilting moments at the same time due to its shape. The double row design increases the overall stiffness and eliminates the positional drift under dynamic machining forces, an important feature in high torque rotary table applications.

Precision-Ground Raceway System
The inner and outer raceways are ground to accuracy and then super-finished. The generated surface roughness decreases friction, heat production, and increases the bearing’s service life. At assembly, factory preload removes internal clearance, resulting in zero-backlash placement right out of the box.

Comparing YRT 150 with Other Rotary Table Bearings

Selecting the right rotary table bearing requires understanding where each model excels. The table below provides a direct comparison across key models and bearing types:

In practice, the YRT 150 rotary table bearing is a compromise. It has a far larger tipping moment capability than the YRT 130 and is thus suited for heavy milling. It has a more compact footprint than the YRT 200, but still gives the stiffness that is necessary in most mid-sized machining centers.

Cross roller bearings are competent in lighter precision applications, but need more sophisticated housing arrangements and often have lower tilting moment resistance. The YRT 150 axial-radial bearing has a structural advantage over cross roller bearings of the same size, especially in CNC machining applications where the cutting forces usually form multi-directional load patterns.

Good YRT-series replacements are made by brands like as SKF, NSK, and THK, but they have a price premium that may be prohibitive for OEMs with large-volume procurement needs. A qualified Chinese manufacturer, with ISO 9001 & IATF 16949 certification, may achieve similar P4/P2 accuracy, with a pricing structure that accommodates both prototype builds and bulk production orders.

Advantages of Choosing YRT 150 High Precision Rotary Table Bearings

Procurement teams evaluating this YRT 150 High Precision Rotary Table Bearing category consistently cite the same operational requirements: consistent accuracy, long service intervals, and manageable acquisition costs. Here are the core advantages that make the YRT 150 High Precision Rotary Table Bearing a compelling choice:

• Multi-directional load tolerance: The double-row angular contact design allows the bearing to manage radial loads, bidirectional axial loads, and tilting moments within a single unit — eliminating the need for supplementary support structures in most rotary table configurations.
• Zero-backlash precision: Factory-applied preload removes internal clearance, delivering consistent angular positioning accuracy. In gear and turbine component manufacturing, this characteristic directly reduces dimensional variation across production batches.
• Simplified installation with integrated mounting holes: Both the inner and outer rings include pre-machined mounting holes, which reduce assembly time and ensure repeatable alignment without specialized housing retainers.
• Extended wear resistance: Heat-treated GCr15 steel achieving 58–62 HRC hardness resists fretting corrosion and surface fatigue under high-frequency oscillating conditions common in indexing head applications.

These advantages translate directly into reduced machine downtime, lower scrap rates, and longer intervals between scheduled bearing replacement — factors that materially affect cost-per-part calculations in high-volume manufacturing environments.

Practical Guide: Maintaining and Installing YRT 150 Bearings

Proper installation is the single most important aspect in attaining the specified service life of any precision rotary bearing. When installing the YRT 150 rotary table bearing, verify that the mating surfaces are clean, checked dimensionally, and free of burrs. Apply a cross-pattern sequence of torque to the mounting bolts to provide homogeneous contact pressure of the ring face.

Lubrication and Inspection Schedules

Lithium-complex or polyurea-based grease is suitable for most rotary table applications. Relubrication periods vary with running speed and load cycle, but a rule of thumb is every 500-1,000 operating hours. Scheduled maintenance windows should include inspection of raceway surfaces and cage condition, with replacement of the bearing if the axial runout exceeds the stipulated P4 tolerance level.

Common Installation Errors to Avoid

The two most typical causes of premature failure are forcing the bearing onto an undersized shaft bore and applying uneven bolt torque. Both faults cause factory preload and add clearance that affects positioning precision. If the starting torque measured during commissioning is beyond the prescribed frictional moment range, it is usually due to an incorrect roller size or a flaw in the raceway surface. This must be reviewed by the supplier.

Procurement Insights: How to Buy YRT 150 Rotary Table Bearings with Confidence

For procurement experts who source the YRT 150 High Precision Rotary Table Bearing in large quantities, the most important step is to verify the supplier. Request ISO 9001 and IATF 16949 certifications, CMM inspection reports confirming inner/outer ring runout within P4/P2 tolerances, and ensure that hardness testing (HRC 58 to 62) is part of the usual outgoing quality procedure.

True OEM quality rotary table bearings should have a paper trail that includes dimensional inspection, material certificates, and traceable heat treatment. You will also want to verify lead time commitments, packing requirements for foreign shipment, and capacity to provide unique bore or mounting configurations before making large purchases. Exporting suppliers with expertise established in markets such as the US, Germany, and South Korea are more likely to have better documentation processes and logistical capabilities.

Conclusion

The YRT 150 High Precision Rotary table bearing provides a quantifiable combination of structural integrity, positional precision and installation efficiency that cannot be achieved with traditional bearing arrangements. Its all-in-one integrated design, double-row angular contact geometry, and precision-ground raceways make it the chosen axial-radial bearing for mid-size CNC rotary tables, indexing heads, and high-accuracy automation systems. This bearing has a cost-performance ratio that can be compared with any other product in its class. It is a boon for procurement teams balancing performance criteria with budgetary restraints.

FAQ

1. How long does a YRT 150 rotary table bearing typically last?

Under normal operating conditions with proper lubrication and within the rated load envelope, a well-manufactured YRT 150 axial-radial bearing achieves service lives exceeding 20,000 operating hours. Actual lifespan depends on load intensity, lubrication consistency, and mounting accuracy. Hardness levels of 58–62 HRC in the raceway material provide strong resistance to surface fatigue, which is the primary failure mode in oscillating applications.

2. How does the YRT 150 compare to cross roller bearings in CNC machining?

Cross roller bearings offer adequate precision for lighter-duty rotary applications but lack the tilting moment capacity of the YRT 150 rotary table bearing. In fourth- and fifth-axis machining centers where cutting forces generate complex multi-directional loads, the YRT 150's integrated design maintains positioning accuracy under conditions that would cause measurable runout degradation in a cross roller arrangement.

3. Are custom specifications available for the YRT 150 rotary table bearing?

Qualified manufacturers can accommodate non-standard bore dimensions, modified mounting hole patterns, and alternate preload levels. Customization requests should include detailed engineering drawings and load specifications to allow the manufacturer to verify feasibility and quote accurately.

Partner with ATLYC for Reliable YRT 150 High Precision Rotary Table Bearing Supply

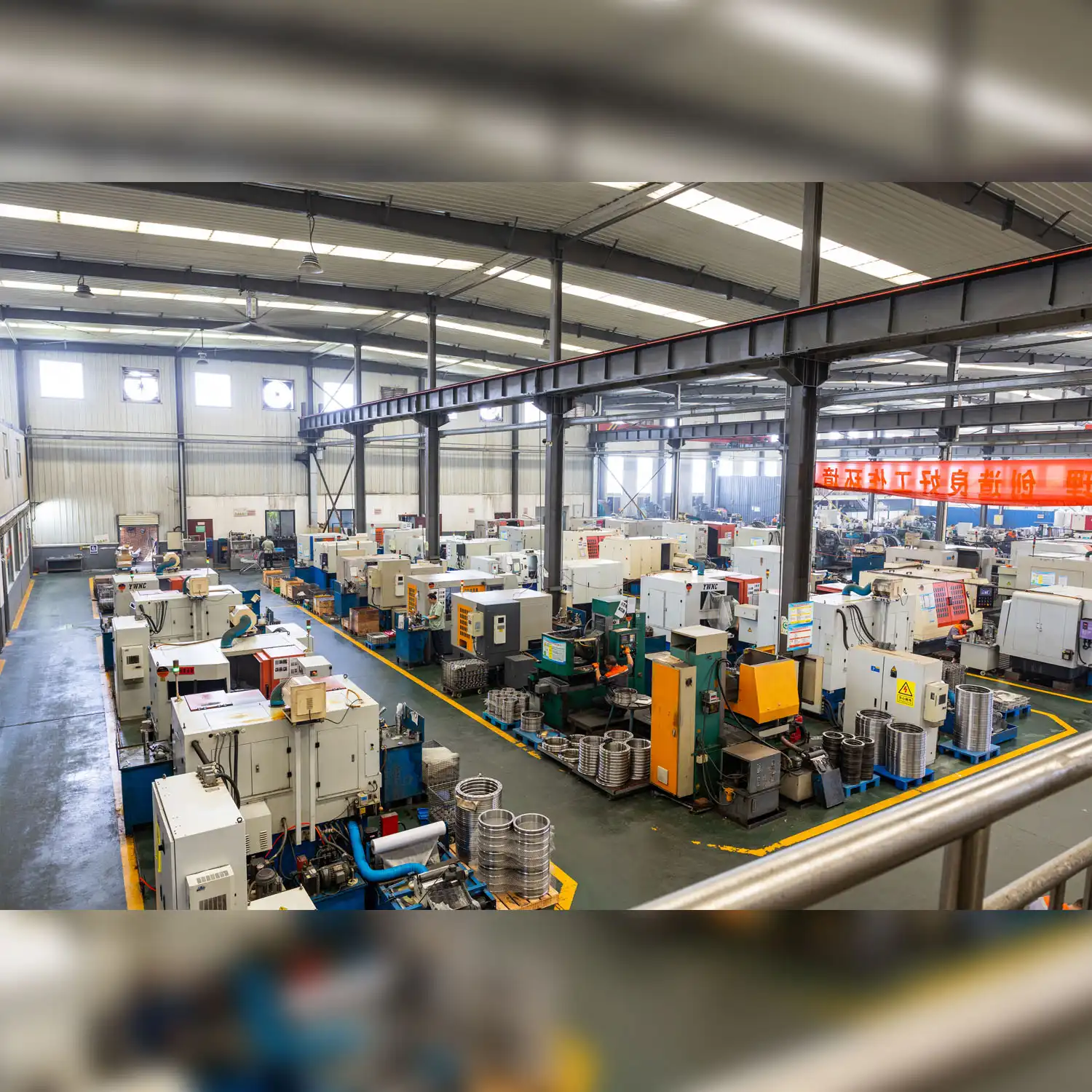

ATLYC — Luoyang Auto Bearing Co., Ltd. — has manufactured precision bearings since 2010, holding both ISO 9001 and IATF 16949 certifications across six production workshops. As a trusted YRT 150 High Precision Rotary table bearing supplier with active export partnerships in the US, Germany, South Korea, and beyond, we offer bulk order flexibility, P4/P2 inspection documentation, and dedicated technical support. Contact our engineering team today at auto@lyautobearing.com for product specifications and a tailored quotation.
