Why Source Tapered Roller Bearing 32 series from China?

If you manage procurement for automotive or industrial equipment, you already know how much a single bearing specification can affect your entire production line. The tapered roller bearing 32 series — defined under ISO 355 and DIN 720 — is one of the most widely specified metric single-row bearing formats in heavy-duty applications worldwide. China has become the primary sourcing destination for this product category, and for good reason. Chinese manufacturers now offer ISO 9001 and IATF 16949-certified 32 series tapered roller bearings at scale, with verified dimensional accuracy, competitive cost structures, and export experience across the US, Germany, South Korea, and beyond.

Understanding the 32 Series Tapered Roller Bearings

What Defines the 32 Series?

The 32 series tapered roller bearing is a type of metric single-row tapered roller bearing. It includes the 320xx, 322xx, 323xx, and 329xx sub-series. All of the raceway surfaces and rollers meet at a single point on the bearing axis thanks to the design layout. This makes for real rolling action with little friction. Because of this, it can handle both horizontal and vertical loads much better than a regular ball bearing.

Material and Construction Standards

These bearings are usually made from high-carbon chromium steel (GCr15/52100) or case-carburized steel that has been heated until it is HRC 60–64 hard. The more expensive ones have logarithmic roller crowning that spreads the Hertzian contact stress equally across the track. This stops the edge-loading failures that happen when shafts bend a little under load. The roughness of the raceway surface is kept at Ra < 0.2µm so that a stable lubrication film can form.

Where Are They Used?

The 32 series tapered roller bearing is used in automotive differentials and pinion shaft supports, as well as in industrial gear reducers for mining and conveyor systems and on tractors and harvesters' wheel hubs. Each time, the separate cone-and-cup design makes maintenance easier, and the ability to change the preload on the bearing gives engineers precise shaft guidance that fixed-clearance bearings can't provide.

This section lists the sub-series, cross-section, load capacity, and typical application for each. The 320xx series is thin and compact, and its load capacity is moderate. The 322xx series is wide and high, and its load capacity is high. The 323xx series is medium-wide and high, and its load capacity is moderate to high. The 329xx series is narrow, while the Tapered Roller Bearing 32 series offers moderate to high load capacity.

Comparison & Quality Analysis: China-Made 32 Series vs International Brands

Closing the Performance Gap

Ten years ago, tapered roller bearings made in China were often seen as not very good. The picture is different now. A lot of Chinese companies now make 32 series tapered roller bearings that meet ISO 492 tolerance classes. Normal to P5 sizes meet the same standards for interchangeability in dimensions that global OEMs demand. Independent test data from industrial buying reports shows that the L10 fatigue life of top Chinese providers is about the same as that of mid-level European names.

Quality Control That Procurement Teams Can Verify

Every batch of 32 series tapered roller bearings made in a serious Chinese bearing factory goes through several stages of quality control. This includes checking the layout's dimensions against ISO 355 standards for bore (d), outer diameter (D), and assembly width (T); using an Andersometer to measure noise and vibration to find waviness in the raceway; and checking the metal for retained austenite levels to make sure the dimensions stay the same when the temperature changes. These are not just marketing claims; they are steps that have been written down and are linked to IATF 16949 certification standards.

The Cost-Performance Reality

The unit cost of Chinese 32 series tapered roller bearings is usually 30–50% less than that of SKF, NSK, or Timken equivalents in standard metric sizes. For OEMs that buy in bulk—tens of thousands of units a year—this difference means they can make more money. As a trade-off, strictness in choosing suppliers is important. This is why experienced procurement managers still check certifications and samples before placing large orders.

Procurement Advantages of Sourcing 32 Series Tapered Roller Bearings from China

Pricing Transparency and Order Flexibility

There are clear minimum order quantities (MOQs) for both OEM-specification and aftermarket 32 series tapered roller bearings from Chinese bearing makers. Prices are usually tier-based based on the number of orders they receive. This makes it possible for buying teams to correctly model landed costs without any extra fees. A lot of companies will also take mixed-SKU orders, which is helpful when you need to ship more than one sub-series at the same time. Tapered Roller Bearing 32 series products offer flexible sourcing options for buyers. Here are the main benefits of buying that buyers always point out:

• Certification alignment: Factories holding ISO 9001 and IATF 16949 certifications can supply documentation packages required for automotive Tier-1 supply chains, reducing audit burden on the buyer's side.

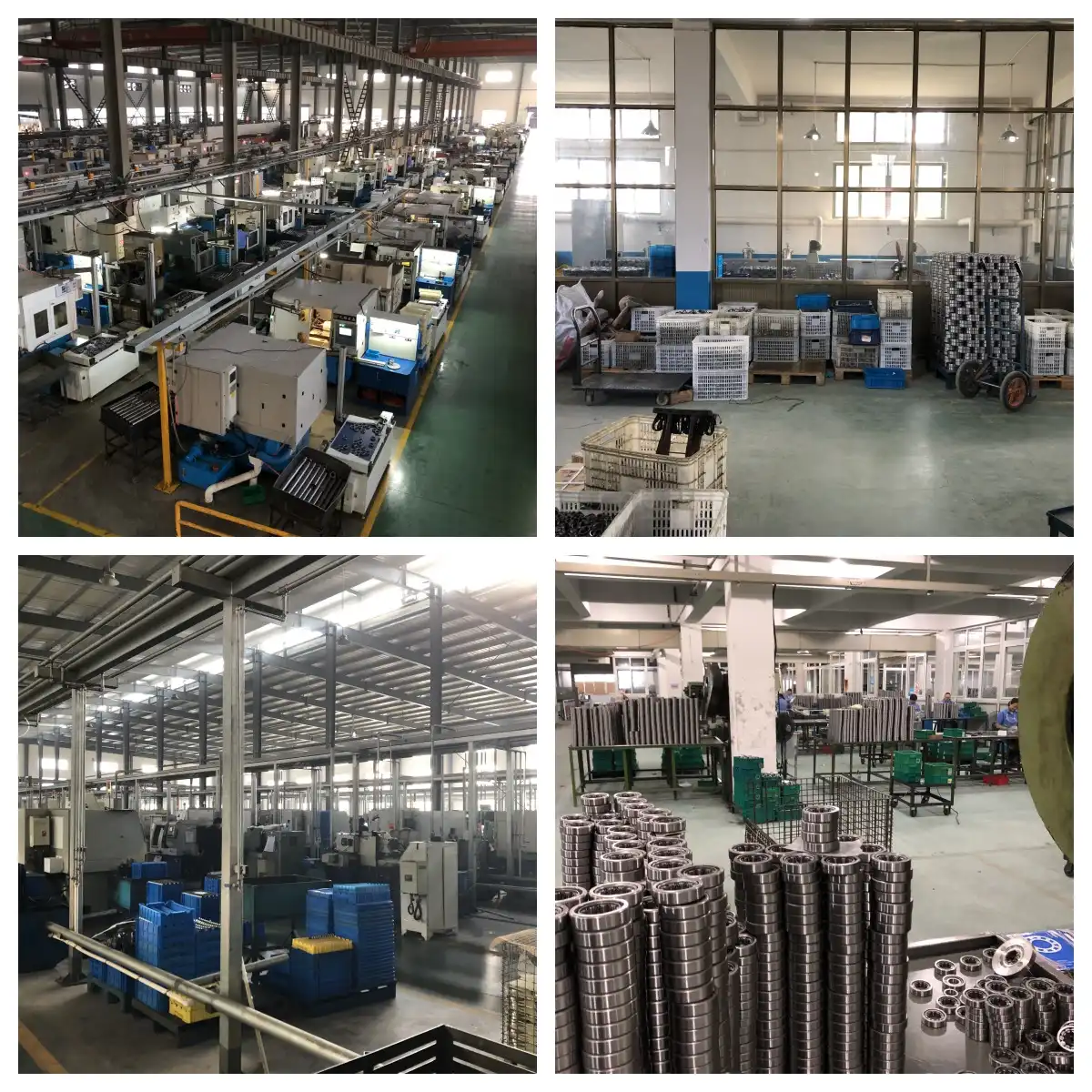

• Production capacity: Established Chinese bearing manufacturers operate multiple production workshops. Luoyang Auto Bearing Co., Ltd., for example, operates six workshops with 120 skilled employees, covering production, R&D, quality inspection, and assembly — supporting both standard and custom 32 series tapered roller bearing specifications.
• Export logistics experience: Manufacturers with established export channels to South Korea, Germany, the US, Russia, Iran, and Turkey understand packaging standards, container loading optimization, and customs documentation — factors that directly affect on-time delivery performance.

All of these benefits mean that a good Chinese 32 series tapered roller bearing seller can be more like a long-term strategic partner than a one-time provider.

Table 2: Standard QC Checkpoints for Making 32 Series Tapered Roller Bearings

Practical Guidance: Selecting and Installing 32 Series Tapered Roller Bearings

Matching Bearing Spec to Application

Load analysis is the first step in selection. The 32 series tapered roller bearing can handle both radial and axial loads at the same time. The right sub-series to use depends on the size of the load and the amount of space in the housing. The 322xx sub-series is best for high-load industrial gearboxes, while the 320xx is better for small automotive transmission assemblies. Before deciding on a part number, you should always compare the dynamic load rating (C) and steady load rating (C0) to how the system will actually be used.

Installation Best Practices

The internal clearance of a 32 series tapered roller bearing is not set at the factory. It is set during installation by using shims or adjusting nuts to change the axial spacing between the cone and cup. Incorrect preload is one of the main reasons why bearings fail too soon, either because they get too hot or because they wear out too quickly. Do not forget to use a measured torque wrench and carefully follow the preload specifications given by the maker.

Lubrication and Maintenance

Industrial speeds that are normal work well with lithium-complex grease. When used at high speeds, like in car pinion shafts, flowing oil or oil mist is best because it gets rid of the heat from the moving contact at the cone rib flange. Not just the date, but also the working temperature and speed factor (ndm) should determine how often to re-oil Tapered Roller Bearing 32 series. Raceway spalling (visible pitting) and scoring on the ends of the rollers are early signs of failure. They both mean that the lubrication has failed or there is too much preload.

Future Outlook: Why China Will Continue to Lead in 32 Series Bearing Supply

Investment in Manufacturing Precision

China's bearing industry keeps putting money into CNC grinding, automated manufacturing lines, and quality checking software. With these investments, the repeatability of dimensions is getting closer to the P5 and P4 tolerance levels, which were once only found in Japanese or European production. This means that people who buy 32 series tapered roller bearings can get goods with tighter tolerances without having to pay more than they would from a Western provider.

Certification Growth and Supplier Maturity

As a result of pressure from the auto industry on supply chains to standardize quality management, the number of Chinese bearing manufacturers with IATF 16949 certification has steadily grown. Luoyang Auto Bearing Co., Ltd. has been in business since 2010 and has been making products for 15 years. It has both ISO 9001 and IATF 16949 certifications. When you are looking at a seller for a multi-year supply deal, this kind of track record is important.

Long-Term Partnership Value

Over the past ten years, buyers who built relationships with trustworthy Chinese 32 series tapered roller bearing makers have said that prices have stayed stable, quality has stayed high, and expert support has been quick to respond. As Chinese factories increase their R&D capabilities, it becomes easier to get custom specifications like changed cage materials, special coatings, and non-standard bore sizes. These can be ordered without the usual long lead times in Europe.

Conclusion

Sourcing the tapered roller bearing 32 series from China makes clear commercial sense when the supplier is properly vetted. The combination of certified quality management, documented QC processes, competitive pricing at volume, and proven export logistics gives Chinese manufacturers a real structural advantage for global OEMs and distributors. The key is selecting a manufacturer with demonstrated production scale, relevant certifications, and the technical capability to support your specific application requirements. China's bearing industry has earned its position in global supply chains through consistent performance — and that position is only growing stronger.

FAQ

Does a Chinese 32 series tapered roller bearing meet ISO standards?

Yes, trustworthy Chinese companies make 32 series tapered roller bearings that meet ISO 355 and ISO 492 standards and can be used interchangeably in terms of size. Before placing large orders, buyers should ask for dimensional inspection reports and proof of certification.

What is the typical lead time for 32 series tapered roller bearings from China?

Most sizes are in stock, so lead times are between one and three weeks. Custom orders or orders for a lot of items may take four to six weeks, based on the sub-series and the production schedule.

How do I verify supplier quality before committing to a large order?

Check the supplier's ISO 9001 or IATF 16949 certificates and ask for QC inspection reports that include hardness, noise, and dimensional layout test results. Also, ask for sample bearings to make sure the dimensions and performance are correct. Another level of trust is built by a factory audit, which can be done in person or by a third-party inspection agency.

What is the difference between the 320xx and 322xx sub-series?

The 320xx sub-series has a smaller cross-section that works well in small areas with light loads. Because it has a bigger cross-section and a higher dynamic load limit, the 322xx sub-series is the best choice for heavy industrial gearboxes and conveyor drives.

Can I order mixed sub-series in a single shipment?

Most well-known Chinese bearing makers will take orders for a variety of SKUs. To avoid shipping delays, make sure you and your provider agree on the MOQ per SKU and the packing needs ahead of time.

Partner with ATLYC for Your Tapered Roller Bearing 32 Series Supply

ATLYC, which is backed by Luoyang Auto Bearing Co., Ltd., a company that has been making bearings for 15 years and has ISO 9001/IATF 16949 certification, has a full line of Tapered Roller Bearing 32 series goods for use in cars, factories, and replacement parts. Our team is ready to give you details, prices, and samples whether you need a reliable, long-term Tapered Roller Bearing 32 series supplier or are looking for new places to get OEM-approved parts. To start your question right away, email us at auto@lyautobearing.com.
