HK Style Standard Needle Roller Bearings - Compact Design for Maximum Load Capacity

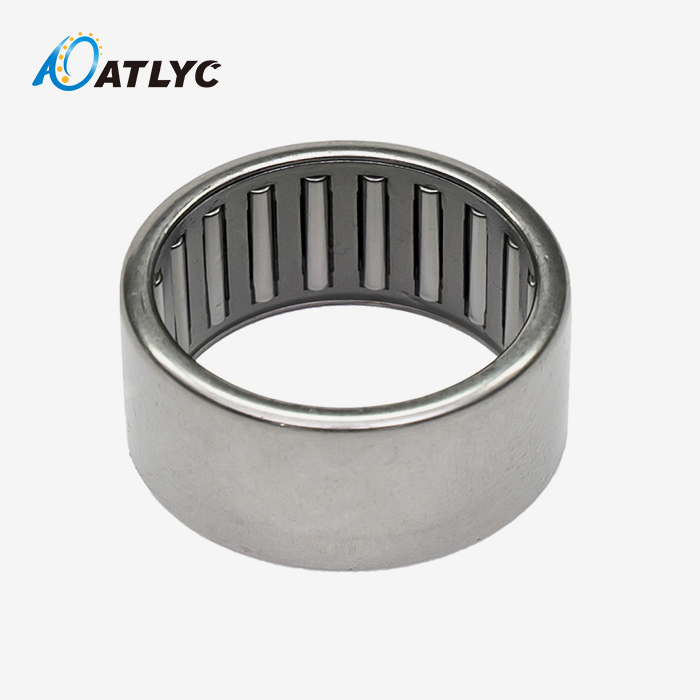

HK Style Standard Needle Roller Bearings represent a specialized category of drawn cup bearings engineered for applications demanding high radial load capacity within minimal radial space. These bearings feature a precision-formed outer ring with thin walls and open ends on both sides, allowing shafts to pass through completely. The unique design eliminates the need for an inner ring, as the hardened shaft surface serves directly as the raceway for the needle rollers. This configuration makes the products ideal for automotive transmissions, industrial machinery, and hydraulic systems where space constraints and weight reduction are critical design factors.

Technical Structure and Working Principle

Core Design Elements

The HK fashion setup comprises of three essential components working in exact coordination. The external ring, fabricated from deep-drawing steel (regularly ST14 or ST12), experiences carbonitriding surface treatment to accomplish ideal wear resistance. This thin-walled container highlights turned-in lips that mechanically hold the inner components amid operation.

The needle rollers, manufactured from high-carbon chromium steel (GCr15/SAE 52100), are solidified to HRC 60-64 for greatest strength. These rollers keep up uniform dividing through a accuracy cage get together, accessible in both steel stamped and PA66 arrangements depending on application necessities.

Operating Principle

The bearing operates on the principle of distributing radial loads across multiple contact points through the needle rollers. When radial forces are applied, the load transfers from the outer ring through the rollers to the hardened shaft surface. This distribution mechanism enables the bearing to support loads significantly higher than conventional ball bearings of similar size.

The absence of an inner ring reduces the overall radial height to approximately the diameter of the needle rollers themselves, achieving the most compact cross-section among all rolling bearing types. This design requires the shaft to be hardened (HRC 58-64) and ground to Ra 0.2µm surface finish to function effectively as the inner raceway.

Performance Advantages

Superior Load-to-Size Ratio

The primary advantage lies in delivering exceptional radial load capacity within the smallest possible envelope. The needle roller design provides contact stress distribution superior to point contact bearings, enabling higher load ratings while maintaining compact dimensions.

Weight Optimization

The drawn cup construction significantly reduces bearing weight compared to machined outer rings. This weight reduction directly translates to improved power-to-weight ratios in automotive and aerospace applications.

Cost Effectiveness

The deep-drawing manufacturing process enables economical mass production, making HK Style Standard Needle Roller Bearings cost-effective for high-volume applications. The elimination of machined inner rings further reduces material costs and manufacturing complexity.

Installation Simplicity

The press-fit installation method simplifies assembly procedures. The thin-walled outer ring adapts to the housing bore geometry, ensuring proper fit and alignment without requiring complex mounting arrangements.

Primary Applications

Automotive Industry

Automotive transmissions utilize these bearings extensively in manual and automatic gearboxes. The compact design allows for more gear ratios within existing transmission cases while handling the high torque loads and temperature variations typical in powertrain applications.

Industrial Machinery

Machine tools employ HK bearings in spindle assemblies and linear actuators where space limitations demand maximum load capacity. The low-inertia design supports high-speed operation while maintaining positional accuracy.

Hydraulic Systems

Water powered adapt pumps advantage from the bearing's capacity to keep up shaft arrangement beneath high-pressure conditions. The strong plan guarantees seal astuteness and pump proficiency in requesting mechanical environments.

Quality Assurance and Manufacturing

Our fabricating prepare consolidates exactness deep-drawing innovation combined with progressed warm treatment methods. Each bearing experiences comprehensive quality testing counting vibration investigation, dimensional confirmation, and stack testing to guarantee steady performance.

The three-level quality control framework envelops crude fabric assessment, in-process observing, and wrapped up item confirmation. This orderly approach keeps up an ex-factory capability rate surpassing 99.9%, guaranteeing solid execution in basic applications.

Installation and Maintenance Guidelines

Proper establishment requires uniform squeezing constrain connected to the stamped confront of the external ring. Never strike the bearing straightforwardly, as this can misshape the thin-walled structure. Utilize fitting squeezing devices to guarantee indeed drive conveyance amid installation.

Regular oil upkeep amplifies bearing life essentially. Take after producer details for grease sort and relubrication interims based on working conditions and stack prerequisites.
