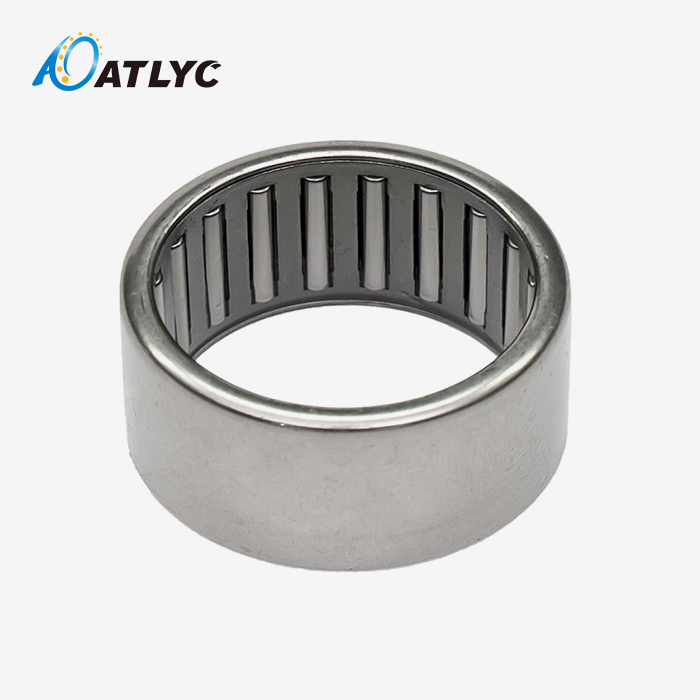

HK2012 Drawn cup needle roller bearing open end

HK2012 Drawn Cup Needle Roller Bearing Open End

The HK2012 Drawn cup needle roller bearing open end speaks to a precision-engineered arrangement for high-performance mechanical applications. This specialized bearing highlights a 20mm bore distance across, 26mm external distance across, and 12mm width setup. The open-end plan kills fixing caps on both faces, empowering nonstop shaft entry and optimized grease stream. Mechanical engineers depend on this bearing sort for compact establishments where most extreme spiral stack capacity must be accomplished inside negligible space imperatives.

Product Overview

The HK2012 bearing utilizes a thin-walled, deep-drawn external ring made from exactness sheet steel. This development strategy makes a cost-effective arrangement whereas keeping up the basic astuteness required for requesting applications. The open-end setup permits for flexible mounting alternatives and improved oil accessibility.

Key Design Features

The bearing joins a few basic designing elements:

Drawn Container Development: The external ring is shaped through accuracy deep-drawing forms, making a lightweight however strong lodging that requires negligible outspread space.

Needle Roller Gathering: High-quality GCr15 bearing steel rollers give uncommon stack dissemination over the raceway surfaces, maximizing contact zone for predominant performance.

Cage Plan: Accessible with steel stamped or PA66 polymer cages that keep up legitimate roller dividing and anticipate skewing amid operation.

Open-End Arrangement: Both faces stay open, permitting shaft section and encouraging oil fog oil frameworks commonly found in mechanical applications.

Primary Applications

Automotive Systems

The HK2012 Drawn cup needle roller bearing open end excels in transmission components where space limitations are critical. Manual and automatic gearboxes utilize these bearings in selector shafts and shift mechanisms. The open-end design accommodates continuous shaft movement while maintaining precise radial support.

Industrial Machinery

Small hydraulic pumps benefit from the bearing's ability to handle pulsating loads and maintain seal integrity. The open configuration allows hydraulic fluid circulation, contributing to thermal management and component longevity.

Machine Tool Applications

Milling and drilling machine spindles require bearings that can withstand varying load directions and speeds. The HK2012 provides stable support for intermediate shafts in gear reduction systems, ensuring consistent cutting performance and surface finish quality.

Power Tools

Heavy-duty rotary equipment relies on these bearings for gear reduction mechanisms. The design handles high-frequency vibration and impact loads generated during drilling operations while occupying minimal housing space.

Performance Advantages

Space Efficiency

The thin-wall construction achieves maximum load capacity within constrained radial dimensions. This characteristic enables more compact machinery designs without compromising performance requirements.

Load Handling Capability

Despite its compact size, the bearing delivers impressive radial load capacity through optimized roller geometry and contact stress distribution. The needle roller configuration maximizes the number of load-carrying elements within the available space.

Cost Effectiveness

The deep-drawing manufacturing process reduces material waste and machining requirements compared to solid-ring alternatives. This production method delivers consistent quality while maintaining competitive pricing.

Lubrication Versatility

Open-end design facilitates various lubrication methods, including oil bath, oil mist, and circulation systems. This flexibility allows engineers to select optimal lubrication strategies for specific operating conditions.

Installation Considerations

Housing Requirements

The thin outer ring requires proper interference fit with a rigid housing to achieve specified tolerances. The housing bore must provide adequate support to prevent ring distortion under load.

Shaft Preparation

The shaft serves as the inner raceway and must be hardened to 58-64 HRC with Ra 0.2µm surface finish. Recommended shaft tolerance classes are h5 or h6 for optimal performance.

Assembly Procedures

Press-fitting requires specialized tooling to anticipate harm to the thin-wall development. Legitimate mandrels guarantee uniform stack dissemination amid establishment, anticipating nearby deformation.

Quality Assurance

Our fabricating prepare executes comprehensive quality controls all through generation. Crude fabric review guarantees bearing steel composition meets determination prerequisites. In-process checking keeps up dimensional exactness and surface wrap up measures. Last review confirms execution parameters counting vibration levels and stack ratings.

The three-level quality control framework conveys over 99.9% capability rates, guaranteeing dependable execution in requesting applications. Each group experiences confirmation of twelve center markers, counting vibration testing and life cycle validation.

Service and Support

Luoyang Auto Bearing gives comprehensive specialized back for bearing choice and application building. Our experienced group helps with establishment methods, investigating, and execution optimization.

Standard conveyance time is seven working days for stock arrangements. Custom alterations and OEM determinations are accessible to meet particular application prerequisites. Test administrations empower application testing and approval some time recently full-scale execution.

For technical inquiries and application support, contact our engineering team at auto@lyautobearing.com. Our specialists provide detailed guidance on proper installation, lubrication selection, and maintenance procedures to ensure optimal HK2012 Drawn cup needle roller bearing open end performance in your specific application.
