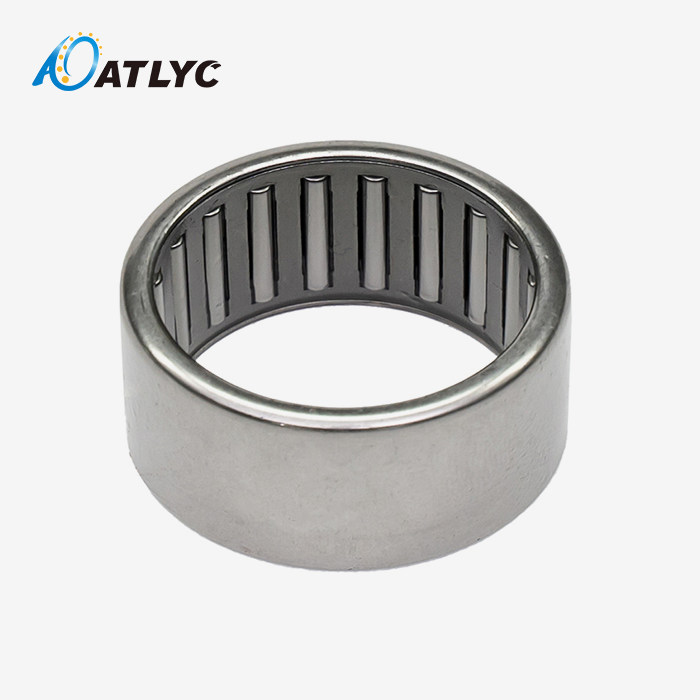

Needle Roller Bearing HK series

Needle Roller Bearing HK Series: Comprehensive Technical Guide

The Needle Roller Bearing HK series delivers exceptional radial load capacity within minimal space constraints, making them essential components for modern machinery design. These drawn cup needle roller bearings feature an open-ended configuration with thin-walled outer rings manufactured from precision strip steel. The HK series utilizes the shaft directly as the inner raceway, eliminating the need for separate inner rings while maximizing load-carrying capacity. This space-efficient design addresses critical engineering challenges in compact drivetrain applications.

Understanding HK Series Structure and Design

The HK arrangement speaks to a specialized lesson of drawn glass needle roller orientation designed for applications requiring greatest spiral stack bolster in limited spaces. The bearing structure comprises of a thin-walled, deep-drawn external ring lodging a accuracy needle roller and cage assembly.

Unlike machined needle orientation, the HK arrangement depends on outspread impedances fits inside the lodging bore for legitimate hub maintenance. This plan disposes of the complexity of snap rings or machined shoulders, decreasing both fabricating costs and establishment time. The external ring fabric utilizes high-quality Gcr15 bearing steel, giving amazing wear resistance and dimensional stability.

Working Principle and Performance Benefits

The item works on the guideline of coordinate shaft contact, where the solidified and ground shaft surface serves as the inward raceway. This setup gives a few building advantages:

Load Dissemination: The numerous needle rollers convey outspread loads over a bigger contact zone compared to ball heading of comparable estimate. This comes about in higher stack appraisals and amplified benefit life beneath requesting conditions.

Space Optimization: By disposing of the inward ring, the HK arrangement maximizes the successful bearing cross-section. This permits for bigger shaft distances across or diminished lodging measurements whereas keeping up required stack capacity.

Cost Effectiveness: The drawn container fabricating handle empowers high-volume generation at competitive costs. The disentangled establishment handle encourage decreases gathering time and labor costs in mass generation situations.

Primary Application Areas

The HK series excels in applications where radial space limitations and high load requirements converge:

Automotive Transmissions: These bearings support pilot shafts, shift linkages, and starter motor assemblies. They withstand rapid acceleration changes and high-speed operation while fitting into the compact housing bores required by modern transmission designs.

Machine Tool Spindles: In CNC machinery and precision equipment, HK bearings provide accurate radial support for rotating shafts. Their low cross-section height enables compact spindle designs without compromising rigidity or precision.

Textile Machinery: The bearings support high-speed rollers and spindles in spinning and weaving equipment. Their ability to operate under continuous high-speed conditions makes them suitable for industrial textile production environments.

Installation and Technical Considerations

Proper installation of the Needle Roller Bearing HK series requires attention to several critical factors:

Shaft Planning: The shaft surface must be solidified to HRC 58-62 and ground to Ra 0.4μm or way better. Legitimate shaft arrangement guarantees ideal stack dissemination and avoids untimely wear.

Press-Fit Necessities: The lodging bore ought to give 0.01-0.03mm impedances for steel lodgings. Aluminum lodgings may require marginally higher impedances due to warm development differences.

Lubrication: Introductory oil with high-quality oil is basic. Relubrication interims depend on working conditions, ordinarily extending from 1000-5000 working hours.

Quality Standards and Manufacturing Excellence

Our fabricating prepare consolidates rigid quality control measures to guarantee steady execution. Each bearing experiences comprehensive testing counting vibration investigation, dimensional confirmation, and stack testing. The generation office keeps up ISO quality benchmarks with a three-level assessment framework covering crude materials, in-process checking, and last item validation.

The warm treatment prepare optimizes fabric properties for greatest strength. Accuracy pounding operations accomplish tight dimensional resistances basic for appropriate fit and work in requesting applications.

Supply Chain and Delivery Capabilities

We keep up broad stock of standard HK arrangement orientation to back quick conveyance necessities. Standard arrangements dispatch inside 48 hours from our territorial dispersion centers. For custom details, our streamlined generation prepare conveys adjusted heading in 70% of ordinary industry lead times.

Our designing group gives comprehensive specialized bolster counting application examination, establishment direction, and execution optimization proposals. This guarantees appropriate bearing choice and execution for your particular requirements.

Contact Information for Technical Support

For point by point specialized determinations, custom bearing improvement, or application designing back, our experienced group stands prepared to help. We give around the world specialized discussion administrations sponsored by over 30 a long time of bearing industry mastery.

Whether you need standard configurations or specialized versions of the Needle Roller Bearing HK series, our technical team can develop solutions tailored to your exact requirements. Contact us at auto@lyautobearing.com to discuss your bearing needs with our engineering specialists.
