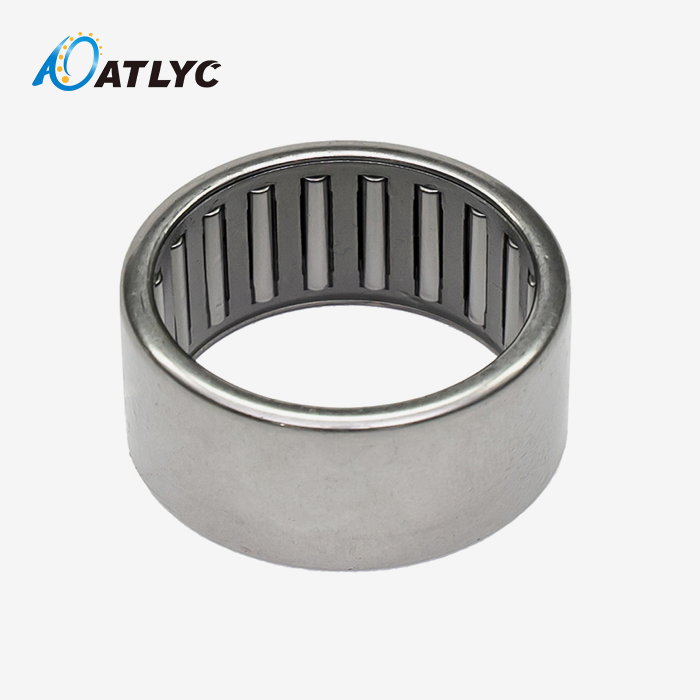

HK drawn cup needle bearings

HK Drawn Cup Needle Bearings - Compact Radial Load Solutions

When space constraints limit your bearing options, HK drawn cup needle bearings provide the optimal solution for high radial load capacity within minimal cross-sectional dimensions. These specialized radial needle roller bearings feature thin-walled, deep-drawn outer rings with open ends on both sides. Unlike solid machined bearings, the outer ring is cold-formed from precision strip steel, delivering the smallest realistic radial cross-section height among all rolling bearing types. This unique construction makes them essential for applications where traditional bearings simply cannot fit.

What Are HK Drawn Cup Needle Bearings?

The products represent a specific class of radial needle roller bearings characterized by their deep-drawn outer shell construction. Technically defined under ISO 3245 and DIN 618 standards, these bearings operate without an inner ring. The shaft serves as the raceway, requiring proper hardening and surface finish.

The manufacturing process involves cold-forming precision strip steel into thin-walled cups. This deep-drawing technique creates bearings with exceptional space efficiency. The "HK" designation indicates open ends on both sides, allowing shaft pass-through applications.

Key Design Features

Thin-Walled Construction: The outer ring thickness ranges from 0.5mm to 1.5mm depending on bearing size. This minimal wall thickness maximizes internal space for needle rollers while reducing overall bearing weight.

Open-End Configuration: Both ends remain open, enabling through-shaft mounting and simplified assembly processes. The open design also facilitates lubrication access and contamination drainage.

Needle Roller Assembly: High-carbon chromium bearing steel needles (GCr15/SAE52100) provide excellent load distribution. The needle-to-cup ratio is optimized for maximum radial load capacity.

Working Principle and Performance

The bearing operates through direct contact between hardened needle rollers and the shaft surface. Load transmission occurs through line contact, distributing forces across multiple rollers simultaneously.

Load Distribution Mechanism: Each needle roller carries a portion of the total radial load. The thin-walled outer ring flexes slightly to accommodate load variations and shaft deflections.

Lubrication System: The drawn cup design creates an internal reservoir for grease retention. Proper lubrication ensures optimal performance and extends bearing life.

Mounting Characteristics: The outer ring requires press-fitting into the housing bore. The interference fit provides axial location and prevents bearing creep during operation.

Primary Applications

Automotive Systems

HK drawn cup needle bearings excel in automotive transmissions and compressor applications. Manual and automatic gearboxes utilize these bearings in clutch pilots and gear reduction stages. The compact design enables transmission downsizing while maintaining load capacity. AC compressor pumps benefit from the bearings' ability to withstand thermal cycling and oscillating loads.

Industrial Power Tools

Cordless drills and chainsaws incorporate these bearings in planetary gear reduction systems. The low friction torque extends battery life while managing high rotational speeds. Start-stop operations create shock loads that these bearings handle effectively.

Machine Tools and Textile Equipment

CNC machines and textile machinery require precise motion control in limited spaces. These bearings provide the necessary radial support while minimizing machine footprint. The steel or PA66 cages ensure stable high-speed operation.

Installation Requirements

Shaft Preparation

The shaft must be hardened and ground to HRC 58-64 with surface roughness Ra ≤ 0.2µm. Since no inner ring exists, shaft quality directly affects bearing performance and life.

Housing Specifications

Housing bore accuracy should meet N6/N7 tolerance for proper interference fit. The housing must be rigid enough to support the thin-walled outer ring without deformation.

Assembly Process

Utilize appropriate get together mandrels to avoid bearing harm amid establishment. Apply drive consistently to the stamped side confront utilizing a press. Never strike the bearing specifically or apply drive through the rollers.

Quality Control and Manufacturing

Our fabricating handle joins accuracy deep-drawing innovation for reliable divider thickness and dimensional precision. Each bearing experiences comprehensive testing counting vibration investigation and stack verification.

Material Determination: High-purity bearing steel guarantees steady hardness and microstructure. The external rings get specialized warm treatment for ideal surface properties.

Quality Confirmation: Our three-level quality control framework keeps up over 99.9% capability rates. Testing incorporates dimensional confirmation, hardness checks, and operational execution validation.

Production Adaptability: Standard generation covers orientation up to φ5000mm external breadth. Custom arrangements address non-standard estimate and execution necessities.

Technical Support and Services

We provide comprehensive technical support including HK drawn cup needle bearings selection guidance and application analysis. Our engineering team assists with shaft and housing design recommendations.

Installation Support: On-site installation guidance ensures proper assembly techniques. We provide specialized tooling recommendations for different mounting scenarios.

Maintenance Programs: Regular inspection schedules help optimize bearing performance. Our monitoring systems track operational parameters for predictive maintenance.

For technical assistance or custom bearing solutions, contact our engineering team at auto@lyautobearing.com. We support global customers with local expertise and rapid response capabilities.
