Hk1512 Needle Bearing

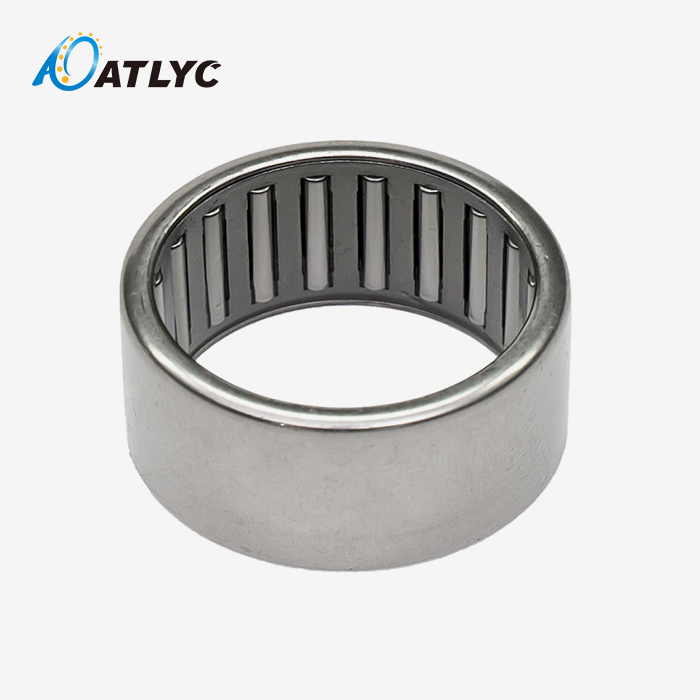

Hk1512 Needle Bearing: Precision Drawn Cup Solution for Compact Applications

The Hk1512 Needle Bearing represents a precision-engineered drawn glass needle roller bearing planned for requesting mechanical applications. With its particular dimensional profile of 15mm bore, 21mm external breadth, and 12mm width, this bearing conveys extraordinary outspread stack capacity inside negligible space imperatives. The thin-walled, deep-drawn external ring development makes the item perfect for applications where lodging space is restricted but tall stack execution is fundamental. Engineers around the world depend on this bearing arrangement for car transmissions, mechanical control devices, and material apparatus where compact plan meets thorough operational demands.

What is the Hk1512 Needle Bearing?

The Hk1512 assignment takes after worldwide bearing classification measures. The "Hk" prefix shows a drawn glass needle roller bearing with open closes, whereas "1512" indicates the dimensional parameters. This bearing highlights a solidified steel external container made through deep-drawing forms, lodging exactness needle rollers guided by a steel or polymer cage assembly.

Unlike routine ball heading, the Hk1512 utilizes the shaft straightforwardly as the inward raceway. This plan kills the internal ring, lessening the by and large bearing cross-section whereas keeping up tall stack capacity. The setup especially benefits applications with extreme outspread space impediments.

Key Design Advantages

Space-Efficient Configuration

The drawn cup design provides maximum load capacity within the smallest possible radial envelope. The thin outer ring wall typically measures just 3mm, allowing for compact housing designs without compromising structural integrity.

High Load Capacity

The needle roller configuration accommodates numerous load-carrying elements within the pitch circle. This arrangement delivers superior radial load ratings compared to ball bearings of equivalent size, making it suitable for high-stress applications.

Cost-Effective Manufacturing

The deep-drawing production process creates an economical bearing solution. The elimination of the inner ring reduces material costs while simplifying installation procedures in many applications.

Versatile Mounting Options

The open-ended design facilitates through-shaft installations and simplifies assembly sequences. The bearing can accommodate various shaft configurations and mounting arrangements.

Primary Applications

Automotive Systems

In transmission assemblies, the Hk1512 Needle Bearing supports gear selector mechanisms and pilot shaft applications. The robust construction withstands thermal cycling and vibration inherent in drivetrain environments.

Industrial Power Tools

Reduction gear stages in rotary hammers and drilling equipment benefit from the bearing's shock load resistance. The design maintains shaft alignment under high-frequency oscillation conditions.

Textile Machinery

Spinning and weaving equipment utilize these bearings in high-speed applications where precise roller guidance is essential. The cage design prevents roller skewing at elevated operating speeds.

Agricultural Equipment

Harvester mechanisms and small engine applications rely on the bearing's ability to operate under splash lubrication conditions while resisting contamination ingress.

Installation and Mounting Requirements

Shaft Preparation

The shaft surface serving as the inner raceway requires hardening to 58-64 HRC with a surface finish of Ra 0.2µm or better. Proper shaft preparation ensures full load rating achievement and extended service life.

Housing Bore Specifications

The housing bore should maintain H7 tolerance with appropriate surface finish. Proper bore preparation prevents cup distortion during installation and ensures optimal load distribution.

Installation Procedure

Press-fitting requires an installation mandrel that contacts the outer cup face evenly. Direct impact on the bearing or rollers can cause permanent damage and premature failure.

Lubrication and Maintenance

Lubrication Requirements

The bearing operates effectively with grease or oil lubrication systems. Grease lubrication suits most applications, while oil lubrication enables higher speed operation and improved heat dissipation.

Maintenance Intervals

Regular inspection schedules should monitor cage condition, lubrication status, and shaft surface wear. Vibration analysis can detect early warning signs of bearing deterioration.

Quality Assurance and Manufacturing

At Luoyang Auto Bearing Co., Ltd., we maintain rigorous quality control throughout the manufacturing process. Our three-level inspection system encompasses raw material verification, in-process monitoring, and comprehensive final inspection. Each batch undergoes validation of twelve critical performance parameters, ensuring consistent quality delivery.

Our manufacturing facility utilizes precision grinding technology and specialized heat treatment processes to optimize wear resistance and dimensional accuracy. The production capability supports both standard configurations and customized variants to meet specific application requirements.

Ordering and Support Services

We maintain stock availability for immediate delivery, typically shipping standard orders within 48 hours. Custom configurations follow our streamlined production process, reducing lead times to 70% of industry standards.

Technical support services include application analysis, installation guidance, and performance optimization recommendations. Our engineering team provides comprehensive assistance from initial selection through operational support.

For technical inquiries or ordering information regarding the Hk1512 Needle Bearing, contact our technical team at auto@lyautobearing.com. We provide detailed application analysis and specification verification to ensure optimal bearing selection for your specific requirements.
