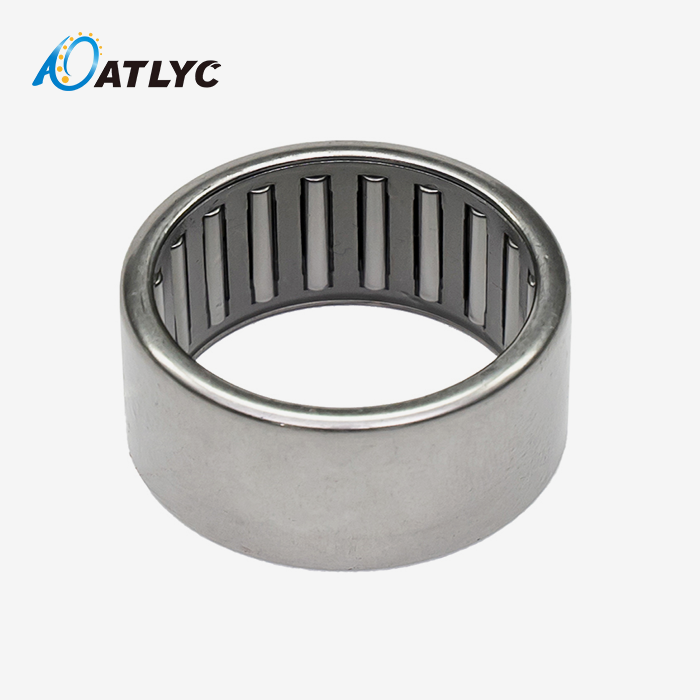

Thin-wall needle bearing HK series

Thin-wall Needle Bearing HK Series - Compact Engineering Excellence

When your application demands maximum radial load capacity within minimal space, the Thin-wall needle bearing HK series delivers unmatched performance. These precision-engineered drawn cup needle roller bearings feature an ultra-thin outer ring formed through deep-drawing technology, creating wall thickness often less than 1mm. Unlike traditional machined bearings, this advanced design maximizes space efficiency while handling substantial radial loads. Your equipment benefits from reduced weight, simplified housing design, and exceptional cost-effectiveness - making these bearings essential for modern machinery applications.

Understanding the Technical Architecture

Design Fundamentals

The HK arrangement works as a drawn glass needle roller bearing with open closes on both sides. The external glass is fabricated from high-quality steel sheet, regularly ST14 or moo carbon steel, through a accuracy deep-drawing handle. This fabricating strategy makes a lightweight however tough lodging that infers its dimensional exactness from the unbending bore it's squeezed into.

The bearing get together comprises of accuracy needle rollers made from GCr15 (SAE 52100) bearing steel, heat-treated to HRC 60-64 for ideal wear resistance. These rollers are guided by either steel stamped cages or PA66 polymer cages, guaranteeing appropriate dividing and grease dispersion amid operation.

Working Principle

Unlike routine heading, the HK arrangement regularly works without an internal ring. The solidified and ground shaft surface serves as the internal raceway, diminishing the generally outspread space prerequisite. This setup requires shaft planning to HRC 58-64 hardness with Ra 0.2 surface wrap up to coordinate the bearing's execution specifications.

The thin-walled external glass is outlined with controlled out-of-roundness that self-corrects when press-fitted into the lodging bore. This impedances fit kills the require for extra maintenance components whereas guaranteeing ideal stack dissemination over the raceway contact surfaces.

Performance Advantages in Real Applications

Space and Weight Optimization

Your machinery benefits from the most compact radial cross-section available in rolling bearing technology. The HK series bridges the gap between plain bushings and solid-race bearings, offering superior load capacity while maintaining minimal envelope dimensions. This advantage proves crucial in automotive transmissions, where every millimeter impacts overall gearbox efficiency.

Enhanced Load Handling

Despite their lightweight construction, these bearings deliver exceptional dynamic load ratings. The needle roller geometry provides maximum contact area within the available space, distributing loads effectively across multiple contact points. This characteristic enables reliable performance under variable loading conditions common in power tools and industrial machinery.

Installation and Maintenance Benefits

The press-fit mounting system simplifies housing design and reduces manufacturing costs. You eliminate complex retention mechanisms while ensuring secure bearing placement. The open-end design facilitates through-flow lubrication, improving heat dissipation and extending service life in high-speed applications.

Industry Applications

Automotive Systems

In transmission assemblies, the Thin-wall needle bearing HK series supports planetary gear sets and shift linkages. These bearings withstand high rotational speeds and variable torque loads while operating in oil-lubricated environments up to 120°C. The compact design enables lighter transmission cases without compromising durability.

Industrial Power Tools

Power tools generate significant vibration and shock loads during operation. The HK series serves as main shaft support, reducing overall tool weight for improved operator ergonomics. The bearings endure high-frequency oscillation and dust exposure, often specified with sealed variants for harsh environments.

Machine Tools and Textile Machinery

Precision applications require consistent performance under varying load conditions. These bearings maintain accurate shaft positioning while accommodating the dynamic forces typical in textile spindles and machine tool applications. The low-friction rolling action improves energy efficiency compared to plain bearing alternatives.

Hydraulic Systems

In gear pumps and hydraulic motors, precise radial clearance control prevents gear mesh misalignment. The HK series maintains performance under heavy hydraulic pressure while contributing to overall system efficiency through reduced friction losses.

Installation Guidelines and Best Practices

Proper Installation Procedures

Installation requires mechanical or hydraulic pressing equipment with appropriate fitting mandrels. Never use hammering techniques, as impact forces will deform the thin cup and damage internal components. The press force should be applied against the stamped face containing manufacturer markings.

Ensure housing bore preparation meets dimensional tolerances specified in DIN 618 or ISO 3245 standards. The interference fit relationship between bearing outer diameter and housing bore determines final bearing geometry and performance characteristics.

Shaft Preparation Requirements

The shaft surface must be solidified to HRC 58-64 with ground wrap up to Ra 0.2. Milder shaft materials will involvement quick wear, decreasing bearing life altogether. Keep up appropriate shaft breadth resiliences to guarantee satisfactory outspread clearance for roller movement.

Consider shaft lead-in chamfers to avoid roller harm amid gathering. The shaft bear ought to give legitimate hub situating without making push concentrations that seem influence bearing performance.

Quality Assurance and Manufacturing Excellence

Our fabricating handle joins accuracy deep-drawing innovation with strict dimensional controls. Each bearing experiences comprehensive testing counting vibration examination, stack capacity confirmation, and dimensional review to guarantee compliance with worldwide standards.

The three-level quality control framework includes crude fabric review, in-process observing, and wrapped up item confirmation. This precise approach keeps up our 99.9% capability rate whereas guaranteeing reliable execution over generation batches.

Quality certifications and testing strategies take after ISO and Noise benchmarks, giving certainty in bearing execution beneath indicated working conditions. Fabric traceability guarantees compliance with industry prerequisites for basic applications.
