HK Caged Needle Roller Bearing - High Load Capacity Needle Bearing Solutions

When you need maximum radial load capacity in minimal space, the HK caged needle roller bearing stands as your optimal solution. This precision bearing belongs to the drawn cup needle roller bearing family, featuring open ends and a deep-drawn thin-walled outer ring that addresses critical space constraints in modern machinery design. The bearing delivers exceptional performance where traditional ball bearings cannot fit.

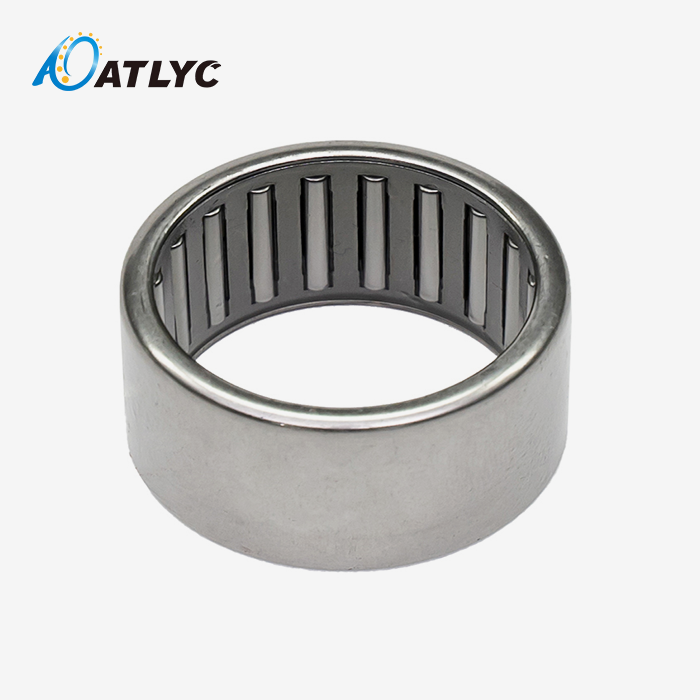

What is an HK Caged Needle Roller Bearing?

The HK bearing represents a specialized bearing design that solves extreme radial space limitations. Its outer ring forms through precision stamping of high-quality low-carbon steel strip. This creates a compact shell housing a needle roller and cage assembly.

The bearing functions by reducing friction between rotating shafts and housing bores. It offers superior performance compared to plain bushings. You'll find it prevents stick-slip phenomena in high-speed applications while minimizing heat generation.

Key Design Features

The bearing adheres strictly to ISO 3245 and DIN 618 standards. Its ultra-low cross-sectional height equals virtually the diameter of the needle rollers. This allows significant equipment downsizing.

The outer cup undergoes case hardening using ST14 steel for wear resistance. Needle rollers manufacture from GCr15 bearing steel with heat treatment to HRC 60-64. This ensures maximum fatigue life.

Primary Applications

Automotive Transmission Systems

In manual and automatic gearboxes, these bearings excel in pilot positions and shifting mechanisms. They withstand temperatures up to 120°C with standard grease. The bearings operate reliably in splash lubrication environments while ensuring smooth gear transitions under fluctuating torque loads.

Heavy-Duty Power Tools

Industrial drills and chainsaws benefit from these bearings' compact design. They support armature shafts in environments with intense vibration and virtually non-existent radial space. The bearings resist shock loads typical of hammer drills while preventing shaft deflection that could damage motor windings.

Machine Tools and Textile Machinery

Precision machine tools require bearings that maintain accuracy under varying loads. The HK caged needle roller bearing provides stable operation in spindle applications and feed mechanisms. Textile machinery benefits from their ability to handle continuous operation with minimal maintenance requirements.

Agricultural Equipment

String trimmers and chainsaw clutch drums operate in highly contaminated environments. These bearings retain grease within the cage structure while excluding larger debris. The close fit of the drawn cup makes them suitable for equipment subjected to dust, sap, and outdoor humidity.

Performance Advantages

Space Optimization

Your equipment design benefits from the bearing's minimal radial envelope. The thin-walled outer ring maximizes internal space utilization. This allows for more compact machinery without compromising load capacity.

High Load Capacity

The needle roller design provides exceptional radial load ratings. Multiple contact points distribute forces evenly across the bearing. This results in longer service life compared to ball bearings of similar size.

Cost-Effective Solution

The drawn cup design simplifies housing requirements. You eliminate the need for complex shoulders or snap rings. This reduces manufacturing costs while maintaining precision performance.

Maintenance Benefits

The cage system ensures proper roller spacing and lubrication distribution. Stamped steel cages provide rigidity for heavy-duty applications. PA66 cages offer reduced inertia for high-speed operations while improving lubricant retention.

Installation and Housing Design

The bearing depends on impedances fit in the lodging bore for hub obsession. This dispenses with extra securing components and streamlines mating lodging plan. The shaft acts as the internal raceway, requiring appropriate hardness determinations for ideal performance.

Proper establishment guarantees the bearing performs to detail. The drawn glass plan obliges slight lodging bore varieties whereas keeping up exact operation.

Quality Assurance

At Luoyang Auto Bearing Co., Ltd., we keep up strict quality control all through generation. Our three-level review framework covers crude fabric confirmation, in-process checking, and wrapped up item testing. Each clump experiences confirmation of 12 center pointers counting vibration testing and life testing.

Our 30 a long time of bearing industry involvement guarantees reliable quality. We fabricate utilizing high-purity bearing steel and accuracy pounding innovation. This conveys items that exceed expectations in wear resistance, temperature resilience, and exactness maintenance.

Custom Solutions and Support

We provide comprehensive bearing solutions tailored to your specific applications. Our engineering team offers technical support from initial design through installation and maintenance. Whether you need standard configurations or custom modifications, we deliver solutions that meet your exact requirements.

For immediate assistance with HK caged needle roller bearing selection or technical questions, contact our engineering team at auto@lyautobearing.com. We're committed to helping you optimize your bearing applications for maximum performance and reliability.
