HK Metric Needle Roller Bearing

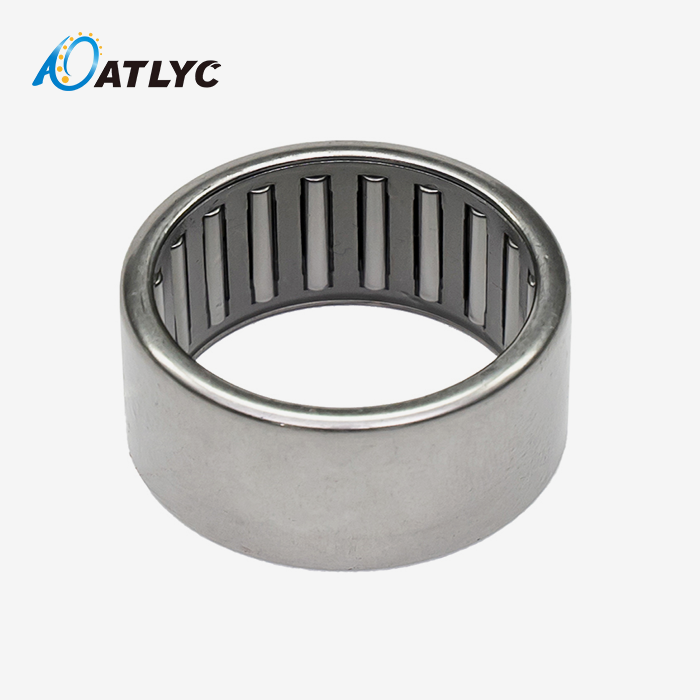

HK Metric Needle Roller Bearing: High-Performance Solution for Space-Critical Applications

When space imperatives meet requesting outspread stack necessities, the HK Metric Needle Roller Bearing gives an ideal designing arrangement. This specialized bearing highlights a thin-walled, drawn-cup plan that maximizes stack capacity inside negligible outspread space. By killing the internal ring and utilizing the shaft straightforwardly as the raceway, these heading accomplish uncommon compactness. They are especially important in car transmissions, machine apparatuses, and mechanical gear where each millimeter tallies. The open-end setup permits for disentangled establishment whereas keeping up tall load-carrying capacity.

Design Structure and Working Principle

The item utilizes a one of a kind basic arrangement optimized for outspread stack applications. The thin-walled external container, made from deep-drawn steel strip, gives remarkable dimensional steadiness when legitimately fitted into the lodging bore.

Key Structural Elements

Outer Ring Design: The deep-drawn outer cup features minimal wall thickness while maintaining structural integrity. This design reduces overall bearing weight and allows for maximum internal volume utilization.

Needle Roller Assembly: High-precision GCr15 steel rollers with length-to-diameter ratios typically ranging from 3:1 to 10:1 provide superior load distribution across the contact surface.

Cage Configuration: Available in both steel stamped and PA66 polymer cages, the retention system ensures proper roller spacing and prevents skewing under operational loads.

Operating Principle

The bearing functions by distributing radial forces through multiple line contacts between the needle rollers and raceways. The shaft serves as the inner raceway, while the housing bore supports the outer ring. This configuration eliminates the need for a separate inner ring, reducing overall assembly height by approximately 40% compared to conventional bearings.

Performance Advantages

Space Optimization

The HK Metric Needle Roller Bearing achieves the lowest sectional height among rolling element bearings. This characteristic enables engineers to design more compact assemblies without sacrificing load capacity.

High Load Capacity

Despite their compact profile, these bearings support substantial radial loads due to the large number of rolling elements in contact with the raceways. Load ratings typically exceed those of ball bearings by 3-4 times in equivalent envelope dimensions.

Cost Effectiveness

The deep-drawing manufacturing process reduces material waste and production costs compared to machined bearing rings. This efficiency translates to competitive pricing for volume applications.

Installation Simplicity

The interference fit design eliminates the need for additional retention hardware such as snap rings or shoulders, simplifying housing bore preparation and assembly procedures.

Primary Applications

Automotive Industry

In transmission systems, these bearings support planetary gear sets and input shafts where space limitations are critical. They handle high rotational speeds and shock loads within oil-lubricated environments while contributing to overall weight reduction goals.

Machine Tool Equipment

Spindle assemblies and tool holders utilize these bearings to achieve precise rotational accuracy while minimizing deflection. The compact design allows for larger spindle bores and improved rigidity.

Industrial Machinery

Textile machinery, printing equipment, and material handling systems benefit from the space-saving characteristics and reliable performance under continuous operation.

Power Tools

Professional-grade drills, grinders, and impact tools employ these bearings to minimize tool weight while maintaining durability under high-torque applications.

Material and Manufacturing Quality

Our item utilizes premium GCr15 bearing steel for all rolling components, guaranteeing steady hardness and dimensional solidness. The external rings experience case solidifying treatment to give wear resistance whereas keeping up center toughness.

Quality control envelops three review levels: approaching fabric confirmation, in-process checking, and last item testing. Each bearing experiences vibration examination and dimensional confirmation to guarantee compliance with ISO benchmarks.

Technical Support and Customization

Luoyang Auto Bearing provides comprehensive technical assistance for bearing selection and application engineering. Our team can modify standard designs to meet specific dimensional or performance requirements.

Custom Solutions Available:

• Non-standard dimensions
• Special cage materials
• Enhanced seal configurations
• Modified internal clearances
• Application-specific lubrication

Installation and Maintenance Guidelines

Proper installation requires careful attention to housing bore tolerances and surface finish. The recommended fit is N6 or N7 for steel housings, with Ra 0.8μm maximum surface roughness.

Regular inspection should monitor operating temperature, vibration levels, and lubricant condition. Typical service intervals range from 2,000 to 8,000 operating hours depending on application severity.

Contact Information

For technical specifications, custom HK Metric Needle Roller Bearing solutions, or application assistance, contact our engineering team at auto@lyautobearing.com. We provide comprehensive support from initial design consultation through production delivery and after-sales service.

Our 30 years of bearing industry experience enables us to deliver reliable solutions that meet demanding performance requirements while optimizing cost and delivery schedules.
