How Does Spindle Bearing 71906C Handle Axial Loads?

The spindle bearing 71906C manages axial loads through its 15-degree contact angle geometry. This angular contact design transfers thrust forces along a defined load line between the inner and outer raceways, allowing the bearing to carry both axial and radial loads simultaneously. With dimensions of 30mm bore × 47mm OD × 9mm width, and manufactured to ISO P4 or P2 tolerance classes, the 71906C angular contact bearing maintains precise shaft positioning under combined loading. Its raceway osculation and preload settings directly determine how much axial stiffness the assembly delivers in practice.

Understanding Spindle Bearing 71906C and Its Load Handling Capabilities

Physical Architecture and Contact Angle Mechanics

The 15-degree contact angle of the Spindle Bearing 71906C is what makes axial load transfer possible. When an axial force acts on the shaft, it moves through the contact circle of the ball and raceway at that 15-degree angle, creating a thrust response that is proportional to the force. The C-type gives up some axial load capacity compared to a 25-degree version (the AC suffix), but it does so in return for higher speeds and more radial stiffness, which is a trade-off that directly benefits high-speed spindle applications.

Material Composition and Its Influence on Load Capacity

The standard ball material for the Spindle Bearing 71906C is 100Cr6 chrome steel that has been vacuum-degassed. In hybrid versions, called HC71906C, silicon nitride (Si3N4) ceramic pieces are used instead of the steel balls. Ceramic balls are about 60% lighter than steel balls. This lowers the rotational force at high RPMs and the contact stress between the balls and the track when there is an axial load. Either phenolic resin (TA) or PEEK (T85) is used for the cage. The material also changes how it behaves when it gets hot, which in turn changes how stable the axial load is over long duty cycles.

Performance Ratings and Speed Factors

The Spindle Bearing 71906C has radial runout on the inner ring that is less than 2.5 microns when ISO P4 tolerance (ABEC 7) is used. With oil-air lubrication, the bearing can handle a speed factor (ndm) of up to 2 million mm·rpm. Pair mounting, either back-to-back (DB) or face-to-face (DF), is the usual way to handle rotational loads. When moment loads are applied, the DB configuration has higher axial stiffness, while the DF configuration has a little more compliance, based on how the case is designed and how the shaft deflects.

Comparison of Spindle Bearing 71906C with Alternative Bearings for Axial Load Applications

71906C vs. 71905C: Dimensional Impact on Axial Capacity

The 71905C has a 25mm bore, and the Spindle Bearing 71906C has a 30mm bore. Both have the same series number. The 71905C's smaller bore makes the contact circle diameter smaller, which limits the shape of the axial load path. When it comes to CNC spindles that handle a lot of axial load, the Spindle Bearing 71906C has a better load distribution because its pitch diameter is bigger. This means that it can handle slightly higher static axial load ratings.

Steel vs. Ceramic (HC71906C): Axial Load Trade-offs

When the RPM is modest, steel Spindle Bearing 71906C bearings can easily handle normal axial loads. Using Si3N4 balls in the hybrid HC71906C lowers the rolling element mass, which lowers the amount of heat produced inside the machine. This is important for axial load applications because the shaft's thermal expansion directly affects the preload, and when preload grows too quickly under heat, it is one of the main reasons spindle bearings fail. Ceramic versions last two to three times longer than grease and keep their rotational stiffness even at speeds over 30,000 RPM.

71906C vs. 71906AC: Contact Angle and Axial Capacity

The 71906AC can handle more axial load than the Spindle Bearing 71906C because its contact angle is 25 degrees. The AC version, on the other hand, has a slower top speed. The C-type is best for precise grinding jobs where speed is more important than big push capacity. For grinding or facing tasks where cutting forces create a lot of axial pressure, the AC version is the better pick.

Practical Applications and Benefits of Using 71906C Spindle Bearings for Axial Loads

CNC Internal Grinding Spindles

The Spindle Bearing 71906C angular contact bearing is usually used in pairs on CNC internal grinding wheels that spin faster than 35,000 RPM. The tandem (DT) arrangement increases the axial load capacity in one direction by two times. This is needed when the forces of the grinding wheel mostly act along the spindle axis. Surface finish tolerances in the sub-micron Ra range are important for fuel injector bores in cars, and they depend on consistent axial positioning, which the Spindle Bearing 71906C provides through its preloaded arrangement.

PCB Drilling and Robotics

In PCB drilling spindles, brief axial impulse loads are caused by fast processes of speeding up and slowing down. The Spindle Bearing 71906C series 19 bearing's low rolling element mass lowers inertia, which keeps the raceway surfaces from sliding when the speed changes. In robotic joint actuators, especially in haptic feedback surgery arms, the Spindle Bearing 71906C's thin cross-section lets joints be made more compact while still handling combined axial and radial forces with almost no backlash. This is necessary for precise motion control. Here are the core advantages that make this bearing a preferred choice across these industries:

• Low gyroscopic moment: At high RPM, the 15-degree contact angle reduces gyroscopic effects as much as possible, keeping the axial accuracy even during constant operation.
• Universal matching (DU grinding): It is possible to place the Spindle Bearing 71906C in DB, DF, or DT mode without shimming, which saves time and prevents mistakes during assembly.
• Thermal consistency: Improved raceway oscillation lowers EHL heat production, which keeps the axial preload stable over a wide temperature range.

These features directly fix the issues of vibration, spindle droop, and thermal drift that machine tool engineers face in fast-paced production settings.

Maintenance and Optimization Tips for Enhancing Axial Load Capacity of 71906C Bearings

Preload Selection and Installation Alignment

The axial stiffness of the Spindle Bearing 71906C system is controlled by the preload class choice. For high-speed grinding, a light preload (class L) is best. For milling, where cutting forces need rigidity, a medium (M) or heavy (H) preload is best. During fitting, the shaft and housing fits must meet ISO tolerance standards. For the Spindle Bearing 71906C, this means a j5 or k5 shaft fit and an H6 housing fit. If the pressing isn't done right, the axial load is spread out unevenly, which speeds up the wear on the raceways.

Lubrication Practices for Axial Load Conditions

Most of the time, barium-complex spindle grease like Klüber Isoflex NBU 15 is used at speeds up to 70% of the limiting speed. At very high speeds, close to the Spindle Bearing 71906C's ndm limit, an oil-air lubrication system is needed to get rid of the heat that is generated by the stress in the axial contact. Never mix greases with different kinds of thickeners because they won't work well together. If they do, the lubricant film will break down quickly, and the cage will fall apart quickly under long-term axial loads.

Inspection and Early Wear Detection

Regular checks with an Anderon meter find high-frequency noise patterns that show tiny scratches on the raceways that are caused by axial overload or contamination. Not after failure, but before runout values get close to the tolerance limit, bearing replacement should be planned.

Procurement and Supplier Guide for Spindle Bearing 71906C

Evaluating Manufacturer Credentials

ISO 9001 and IATF 16949 certifications are the bare minimum when looking for Spindle Bearing 71906C bearings. SKF, NSK, FAG, Timken, KOYO, NTN, and Nachi are some of the global OEM names that make this type of bearing. If you want to buy something that balances cost and performance, certified Chinese makers with proof of production size and export records are a great option. Before signing a supply deal, make sure that the measurement conformance reports, runout test certificates, and Anderon test data are correct.

Bulk Pricing, Lead Times, and Inventory Strategy

When compared to buying on the spot, bulk purchases with qualified Spindle Bearing 71906C bearing suppliers usually lead to cost savings of 10–20% per unit. Set aside enough backup stock to last for 4–6 weeks in case of shipping delays, especially for markets outside of the United States. As a standard, ask for mill certificates and batch tracking paperwork. This will keep fake or out-of-tolerance bearings from getting into your spindle assemblies and stopping your production line.

Long-Term OEM Supply Partnerships

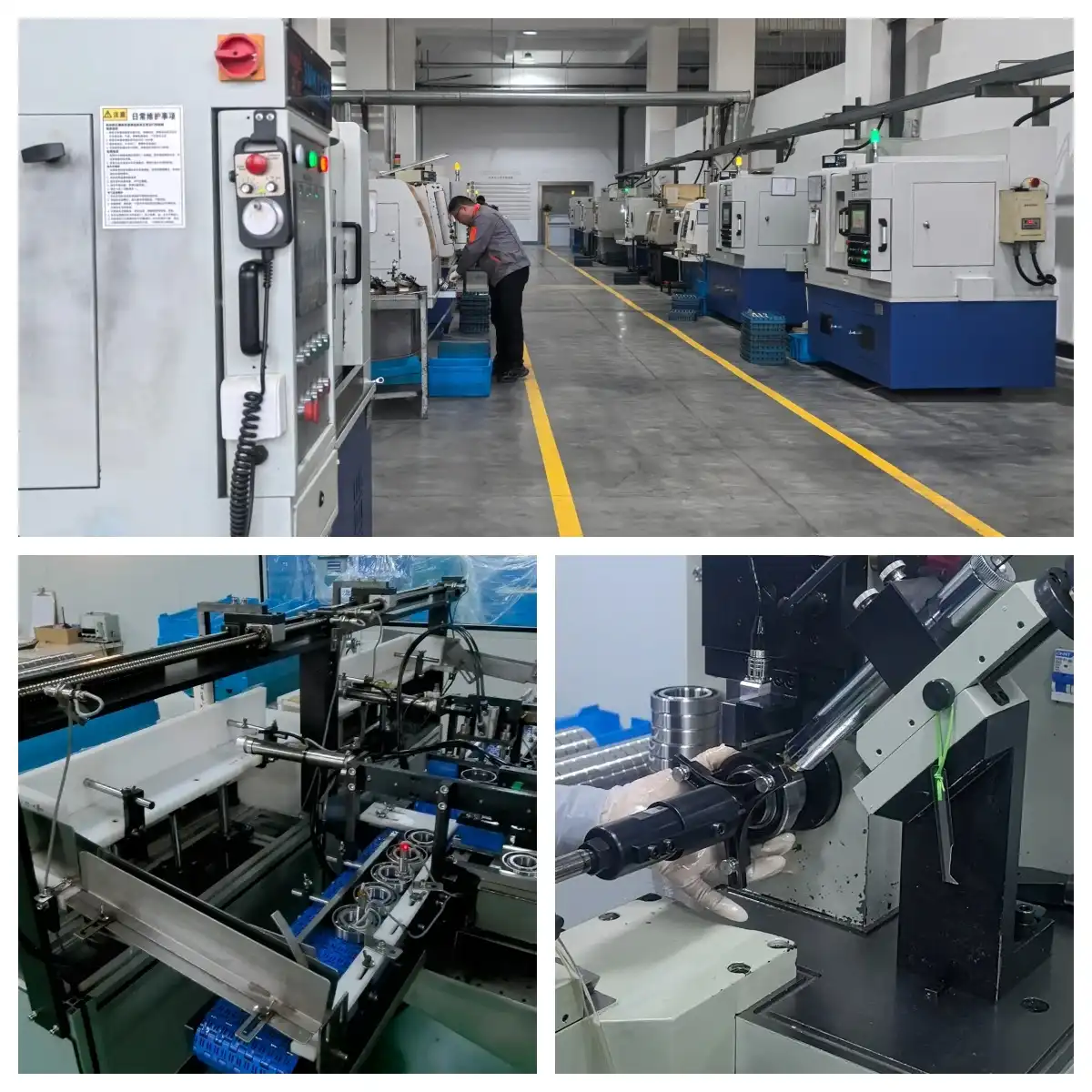

Qualification risk is lower when you have long-term supply agreements with manufacturers who are certified by both ISO 9001 and IATF 16949. A company with six production workshops, 120 skilled workers, and 15 years of exporting to countries like the US, Germany, South Korea, and Turkey has the production depth to handle more orders without lowering the quality.

Conclusion

With its 15-degree angular contact shape, preset paired arrangement, and precision-ground raceway surfaces, the Spindle Bearing 71906C can handle axial loads. Because of its thin-section form, range of materials, and tolerance class, it is the usual choice for high-speed spindles where output quality is directly affected by how accurately the shafts are placed. The real choices that affect how well this bearing works in your application are the preload class, lubrication method, and mounting setup you choose. The Spindle Bearing 71906C keeps its axial stiffness over tens of thousands of hours of use with proper maintenance and a qualified supply chain.

FAQ

What axial load capacity does the 71906C have compared to the 71906AC?

The Spindle Bearing 71906C (15-degree contact angle) can't hold as much vertical load as the 71906AC (25-degree contact angle), but it can spin faster. For high-speed grinding, use the C-type; use the AC-type when axial cutting forces are substantial.

Can I use a single 71906C to handle bidirectional axial loads?

No. A single Spindle Bearing 71906C only supports axial load in one direction. For bidirectional axial load handling, a back-to-back (DB) or face-to-face (DF) paired arrangement is required.

What factors most affect the axial load capacity of this bearing?

Contact angle, preload class, ball material, lubrication method, and operating temperature all directly affect axial load performance. Thermal expansion causing uncontrolled preload growth is the most common failure mechanism under sustained axial load.

How often should 71906C bearings be inspected in axial load applications?

In continuous production environments, inspect runout values and lubrication condition every 2,000–4,000 operating hours, or per machine tool OEM guidelines. High-speed grinding spindles may require shorter intervals.

Can I mix 71906C bearings from different brands in one spindle stack?

No. Internal geometries, preload offset grinding values, and ball grades differ across manufacturers. Mixing brands in a paired arrangement causes uneven axial load distribution and early failure.

Source Your 71906C Spindle Bearings from ATLYC — Precision Built for Demanding Applications

ATLYC (Luoyang Auto Bearing Co., Ltd.) has manufactured precision bearings since 2010, holding both ISO 9001 and IATF 16949 certifications across six production workshops. Our Spindle Bearing 71906C supplier capability covers full P4/P2 tolerance classes with complete runout and Anderson test documentation. Whether you need standard steel or hybrid ceramic variants, we support long-term OEM supply agreements with reliable lead times. Send your technical requirements to auto@lyautobearing.com or visit https://aotezhoucheng.aixdb.cn/ to request a quote today.
