How to Select the Right 7220AC Super Precision Bearing?

Selecting the right 7220AC Super Precision Bearing starts with understanding its core specifications and matching them to your application. This bearing features a 100mm bore, 180mm outer diameter, 34mm width, and a 25° contact angle — the "AC" designation that sets it apart. Manufactured to ISO P4/ABEC-7 or P2/ABEC-9 standards, it handles combined radial and axial loads simultaneously. For engineers in CNC machining, industrial pump systems, or grinding equipment, the 7220AC angular contact bearing delivers the balance of axial rigidity and rotational speed that standard bearings simply cannot match.

Understanding the Specifications and Design Features of 7220AC Bearings

Key Dimensional and Load Parameters

The 7220AC Super Precision Bearing has an inner diameter of 100mm, an outer diameter of 180mm, a width of 34mm, and a weight of about 3.15 kg. Its dynamic and static load ratings are best for situations with mixed loads. It can handle axial loads better than the 15° "C" version because of its 25° contact angle. This makes it the best angular contact ball bearing for machine tool spindles that are under both thrust and radial stress.

Material Options and Their Impact

Most rings are made of vacuum-degassed GCr15, which is the same as AISI 52100 bearing steel and has a very long wear life when loaded and unloaded many times. For faster uses, hybrid designs with silicon nitride (Si3N4) ceramic rolling elements lower centrifugal force, make less heat, and increase the L10h fatigue life. Most cages are made of phenolic resin (bakelite) or PEEK. Both of these can be used with oil-air lubrication systems at speeds greater than 10,000 RPM.

Design Features and Model Comparisons

There is a good center ground in the 7220AC Super Precision Bearing. It comes in P5, P4, and P2 levels of accuracy and can be mounted in DB, DF, or DT ways. This gives engineers a lot of options when they're designing spindle arrangements.

Comparison and Decision-Making When Choosing 7220AC Bearings

7220AC vs. 7220ACM and 7315B

The main difference between the 7220 AC bearing and the 7220ACM is the "M" end, which means that the internal shape has been changed for matched-pair mounting. When you need a back-to-back or face-to-face setup with accurate preload control, the 7220ACM is the better choice. The 7315B, on the other hand, has a 40° contact angle and a larger cross-section, which makes it good for heavy axial loads going in one direction at modest speeds. However, it doesn't have the high precision for spinning that the 7220AC does.

Strengths and Limitations of the 7220AC

The 7220AC angular contact bearing works very well in situations where speed and stability are important. Using two 7220AC bearings back-to-back (DB) in CNC machining centers gives them high moment stiffness and keeps the spindle tip from moving due to heat. But if your application needs to handle a lot of axial load with very little speed, a heavier-angle bearing might be better. The important thing is to make sure that the contact angle matches the main load direction in your tools.

Real-World Application Context

The horizontal machine center is turning at 8,000 RPM and has a depth-of-cut of 80 mm. It has to deal with both rotary cutting forces and axial thrust. In this case, a pair of 7220AC Super Precision Bearings set up in a DB configuration lowers chatter marks and keeps positional accuracy within 1–2 microns. This load profile is shared by precision grinding headstocks, industrial centrifugal pumps with 100mm shaft diameters, and large separator drives. This makes the 7220 AC the best choice for a wide range of industrial settings.

Practical Guide to Procurement of 7220AC Super Precision Bearings

Identifying Trusted Suppliers

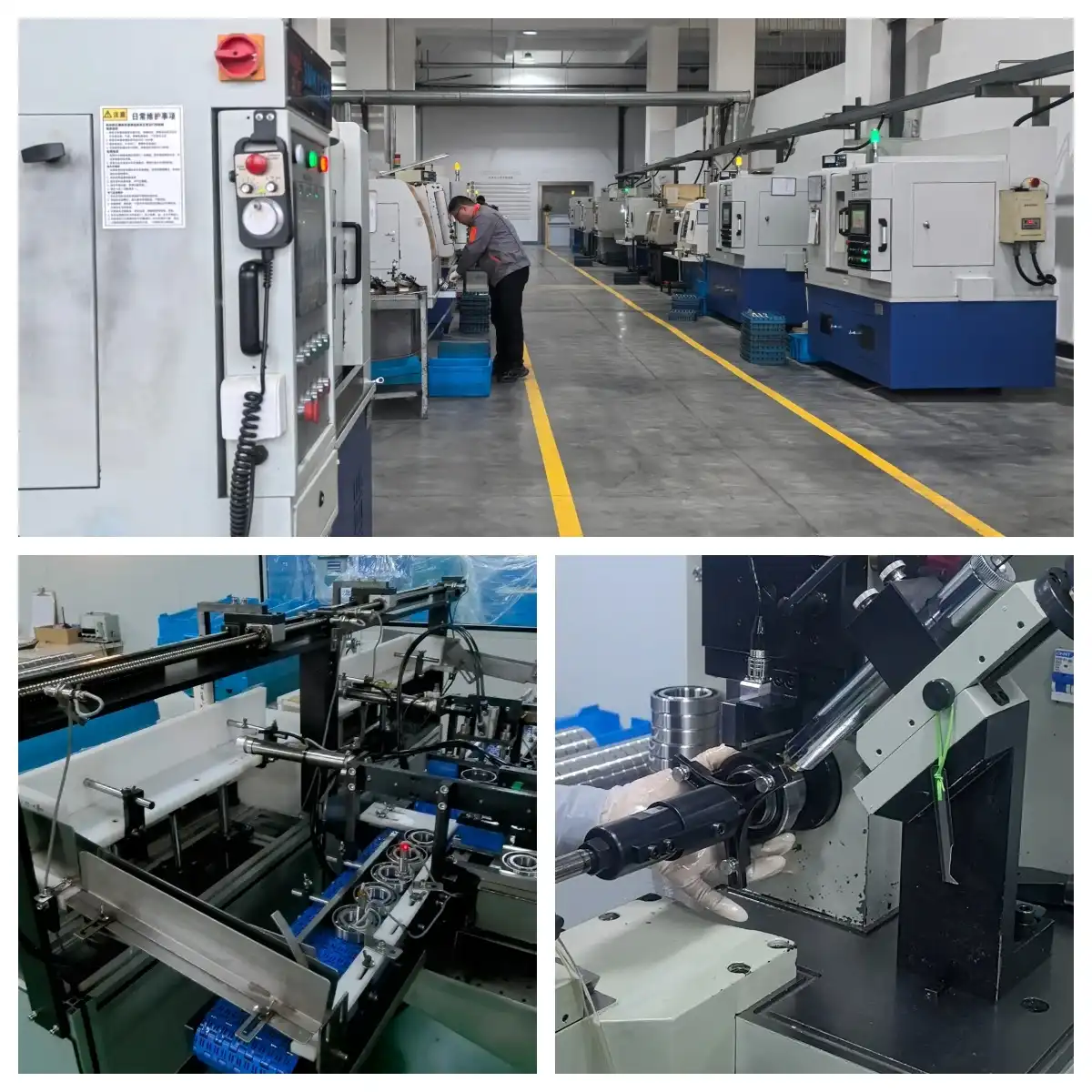

7220AC bearings are made to world standards by companies like SKF, NSK, NTN, FAG, Timken, and Koyo. Check for ISO 9001 and IATF 16949 certifications when buying from Chinese manufacturers. These show that the company has the quality management systems needed for consistent production. Lingyang Auto Bearing Co., Ltd. (ATLYC) was founded in 2010 and has six manufacturing units with 120 trained workers. It has both certifications and has been doing business for over 15 years with customers in the US, Germany, South Korea, Russia, Iran, and Turkey.

Bulk Purchasing and Lead Time Planning

Buying in planned amounts lowers the cost per unit and guards against delays in the supply chain. When you place your first order, you should always ask for material traceability certificates and dimensional inspection reports.

Avoiding Counterfeit Components

Fake 7220AC Super Precision Bearing products are very dangerous to the stability of the wheel. Always ask for batch test results and look at the cage material, raceway finish, and sharpness of the markings on the bearing. Suppliers of good 7220AC bearings provide full paperwork, such as precision grade approval (P4/P2) and packing conformity records. Any time you're buying something, a low price that doesn't come with confirmed proof should make you suspicious right away.

Maintenance and Longevity – Maximizing 7220AC Bearing Performance

Lubrication Best Practices

It is standard to use oil-air or oil-mist lubrication on high-speed spindles. These methods send controlled, tiny amounts of oil to the areas where the bearings touch, which keeps the heat under control without using too much oil. Klüber Isoflex NBU 15 or Kyodo Yushi are high-quality synthetic choices that should be used at moderate speeds. They should be filled to no more than 15–20% of their free internal space. Overfilling leads to churning heat, which is a common reason why precision bearings fail too soon.

Inspection and Storage Guidelines

The bearing's dmn value (bore diameter × RPM) should be used to set how often it needs to be inspected. Monitoring vibrations and keeping track of temperatures can help find early signs of racetrack contamination or wear. Keep bearings in their original, sealed package in a dry, temperature-stable place away from magnetic fields and sources of stress. A measurable number of early bearing failures in industrial settings can be traced back to bad storage.

Troubleshooting Common Issues

If a 7220AC precision bearing makes strange noises or its working temperature rises, it's probably because it wasn't oiled properly, had the wrong preload, or wasn't mounted correctly. When mixed brands are put together in a back-to-back arrangement, which is a big mistake, there is uneven internal contact, which causes fatigue very quickly. Never use impact tools to fix super precision bearings; they damage the raceways in a way that you can't see. Instead, use thermal fitting or hydraulic methods.

Tailoring Bearing Selection to Your Application Needs

Application-Specific Matching

Different fields need different levels and shapes of accuracy. Precision grinders and CNC machining centers usually need P4 or P2 grade 7220AC Super Precision Bearing for the spindle. Industrial pumps and big compressors may work with P5 grade, but they need to have certain internal clearance changes made so they can handle temperature expansion while they're running all the time. Less restrictive preload sets and ceramic hybrid rolling elements that reduce friction torque are good for robotic joints and precision measurement equipment.

Customization Options Available

ATLYC allows OEMs to make changes to the 7220AC Super Precision Bearing, such as choosing the material grade (GCr15 or hybrid ceramic), the internal clearance specification (C1, C2, CN), the cage material (bakelite or nylon), and the precision grade (P5/P4/P2). With these options, engineers and procurement teams can choose bearings that are perfectly matched to the operating range of their equipment instead of having to work with what's available on the shelf.

Consulting Your Supplier for Optimal Fit

Before you decide on a bearing, you should give your provider information about your application, such as the shaft speed, load type, working temperature range, lubrication method, and fitting setup. A maker of bearings with a lot of knowledge can help you choose the right preload class, clearance grade, and matched configuration. This step alone prevents choices that don't match, which can shorten the service life and cause unplanned downtime.

Conclusion

To pick the right 7220AC Super Precision Bearing, you need to follow a structured process: make sure the dimensions fit, match the contact angle to your load profile, pick the right precision grade, and buy from a certified seller whose production ability has been checked. Consistent quality, proper fitting, and regular upkeep are what set spindles that last apart from ones that break down over and over again. For combined-load precision applications, the 7220AC angular contact ball bearing is still one of the best choices. This is true whether you're looking for a CNC machining center, a high-flow pump, or a precision grinding headstock.

FAQ

What is the difference between 7220AC and 7220C bearings?

The contact angle is the defining difference. The 7220AC has a 25° contact angle, giving it higher axial rigidity, while the 7220C carries a 15° angle suited for ultra-high speeds with lighter axial loads.

Can I mix 7220AC bearings from different brands in one spindle?

No. Even bearings with the same part number carry brand-specific tolerance offsets and preload gaps. Mixing brands in a single spindle arrangement causes uneven load distribution and accelerated failure.

What preload level suits most CNC spindle applications?

Medium preload is the standard starting point for general machining. Heavy preload increases rigidity but generates more heat; light preload runs cooler but may lack stiffness for deep-cut operations.

What mounting arrangement gives maximum stiffness?

A back-to-back (DB) arrangement is standard for high moment rigidity in machine tool spindles using the 7220AC angular contact bearing configuration.

What accuracy grade should I specify for precision grinding?

P4 (ABEC-7) is the minimum recommended grade for precision grinding headstocks. Applications requiring runout below 1.5 microns should specify P2 (ABEC-9).

Get a Quote for Your 7220AC Super Precision Bearing from ATLYC

ATLYC has been making precision angular contact bearings for more than 15 years. Our six production units are certified by both ISO 9001 and IATF 16949. We're a reliable 7220AC Super Precision Bearing supplier, and our standard lead time is 7 working days. We also offer OEM customization, DB/DF/DT mounting configurations, and P5/P4/P2 grade options. To get prices and specs, email our engineering team at auto@lyautobearing.com or go to https://aotezhoucheng.aixdb.cn/.

References

1. Harris, T. A., & Kotzalas, M. N. Rolling Bearing Analysis: Essential Concepts of Bearing Technology. Taylor & Francis, 2006.

2. SKF Group. SKF Bearing Catalogue: Angular Contact Ball Bearings. SKF, 2018.

3. International Organization for Standardization. ISO 492: Rolling Bearings – Radial Bearings – Dimensional and Geometrical Tolerances. ISO, 2014.

4. NSK Ltd. Precision Machine Tool Bearings Technical Report. NSK Technical Journal, 2019.

5. Tedric A. Harris. Fatigue Life Prediction for Rolling Element Bearings Under Combined Loads. Journal of Tribology, ASME, 2001.

6. FAG / Schaeffler Group. Spindle Bearings: Selection, Design, and Mounting Guidelines. Schaeffler Technologies, 2020.
