How to Customize Tapered Roller Bearing 32 series for OEMs?

Customizing a tapered roller bearing 32 series for OEM use means defining exact bore diameter, outer diameter, assembly width, tolerance class (P5 or P6 per ISO 492), material grade (GCr15/52100 steel), roller profile (standard or logarithmic crown), sealing type, and lubrication method to match your specific load, speed, and environmental conditions. The 32 series—covering sub-series 320xx, 322xx, 323xx, and 329xx—handles combined radial and axial loads in compact spaces where ball bearings fall short. Getting these parameters right from day one prevents costly redesigns and protects your production schedule.

Understanding the Tapered Roller Bearing 32 Series Basics

You need to have a good understanding of what this bearing family is and how it works before you talk to a supplier about customization.

What Defines the 32 Series Geometrically

There are rules for the Tapered Roller Bearing 32 series that come from ISO 355 and DIN 720. You can find cone, cup, and curved rollers in this bearing. All of the raceway extensions meet at a single point on the bearing shaft. This shape makes a real rolling motion with very little sliding friction. The 32 series has a good ratio of cross-section height to load capacity, which means it can be used in medium- to heavy-duty OEM uses like car transmissions, industrial gearboxes, and farming wheel hubs.

Core Technical Specifications

The design that lets the cone and cup be fixed separately makes interference fits and regular upkeep easier, which is useful in OEM assembly lines that make a lot of parts.

Installation, Maintenance, and Troubleshooting

The maker does not set the axial gap. To get the right preload or working space, you set it during assembly by moving shims or lock nuts around. When mounting, only use the right press or induction heating tools; hammering in the screws damages the raceways. During the check, if you see spalling or pitting, it means that the wear load was probably too high. If you see scoring on the roller ends or ribs, it almost always means that there isn't enough oil or that the pressure is too high. These are two of the most common ways that this type of bearing, including the Tapered Roller Bearing 32 series, fails.

Critical Factors in Customizing the 32 Series for OEM Use

Customization is more than just picking a size from a book. It's necessary to match every motion characteristic to the way it will be used.

Material Selection and Tolerance Class

High-carbon chromium steel (GCr15/52100) that has been heated to HRC 60–64 is used for standard production. Case-carburized steel makes the surface tougher while keeping the core hard in places that get a lot of shock loads, like mining gearboxes or heavy truck differentials. Choosing the right tolerance class has a direct effect on the accuracy of the shaft guidance. For example, P6 is best for most general OEM applications, while P5 is warranted for high-speed automotive transmissions where dimensional scatter would cause vibration.

Sealing, Lubrication, and Environmental Adaptation

Open-design 32 series bearings are the norm. When OEMs customize parts, they often add contact seals or non-contact covers to keep them clean. This is particularly important for farming equipment and off-road vehicles that work in dirty or muddy conditions. When working at high speeds, flowing oil or oil-mist lubrication works better than grease because it better gets rid of the heat that is created by sliding at the cone-rib flange. Grease-packed sealed versions work well for moderate speeds and low maintenance needs.

Real OEM Customization Scenarios

For a rear-wheel-drive axle's pinion shaft support, you need a 32 series bearing with a high axial load rating, tight P5 tolerance, and a logarithmic roller shape to handle edge stress from small housing movement. In a mining plant, a conveyor gearbox needs to be in the wider 322xx or 323xx sub-series, with roller geometry that can handle shock loads and oil bath lubrication. If you get this match right, the L10 bearing will last 40–60% longer than if you just pick one from a catalog.

Comparing the 32 Series with Other Bearing Options: What to Consider?

To pick the right bearing type, you have to be honest about the differences between the options. This is how the 32 Series measures up.

32 Series vs. 30 and 33 Series

The 30 series favors radial loads over axial loads because it has a smaller contact angle and a thinner cross-section. The 33 series is bigger and can hold more weight than the 32 series, but it takes up more room along the axis. Where axial-radial load balance is important and space isn't too tight, the 32 series is a good compromise.

32 Series vs. Other Bearing Types

Ball bearings are cheaper and can handle higher speeds, but they can't handle the combined loads that are needed in industrial gearboxes or differentials for cars. An angular contact bearing can handle axial thrust well, but they need to be mounted in pairs that are matched. Cylindrical roller bearings can handle a lot of lateral load but not much vertical load. The Tapered Roller Bearing 32 series is still the best choice when both directions of load matter at the same time.

Evaluating Suppliers: Beyond Brand Names

Timken, SKF, and NTN all make high-quality 32 series bearings with performance data that has been checked. But Chinese manufacturers certified to ISO 9001 and IATF 16949 now offer production-scale options with quality systems that can be checked. This is good news for OEMs who need to manage the cost-performance ratio and supply continuity. Check suppliers based on their ISO/IATF certification scope, the results of their Andersometer vibration tests, the records of their L10 life tests, and their track record of delivering international orders on time.

Procurement Strategies for Customized Tapered Roller Bearing 32 Series

Getting things in a smart way starts long before you place an order.

MOQ, Lead Times, and Bulk Pricing

Based on the bore size, most approved makers set the minimum order quantity (MOQ) for custom 32 series bearings at 500 to 2,000 pieces. When you buy more than 10,000 pieces in bulk, you can usually get price cuts ranging from 8 to 15%. For first-time orders, standard lead times for custom orders are 4–8 weeks. For return orders with known tooling, lead times drop to 2–4 weeks. Get written confirmation of these parameters before making any final decisions about sourcing.

Assessing Supplier Customization Capability

For key dimensions greater than or equal to 1.67, you should ask for sample approval reports (SARs), first article inspection (FAI) records, and process capability studies. If a supplier can't give you these documents, they probably don't have the process control that your OEM quality system needs. Ask specifically about the ability to measure roller crowning and the ability to test for retained austenite. Both of these show how mature the metallurgical process is.

Why Luoyang Auto Bearing Works for OEM Custom Orders

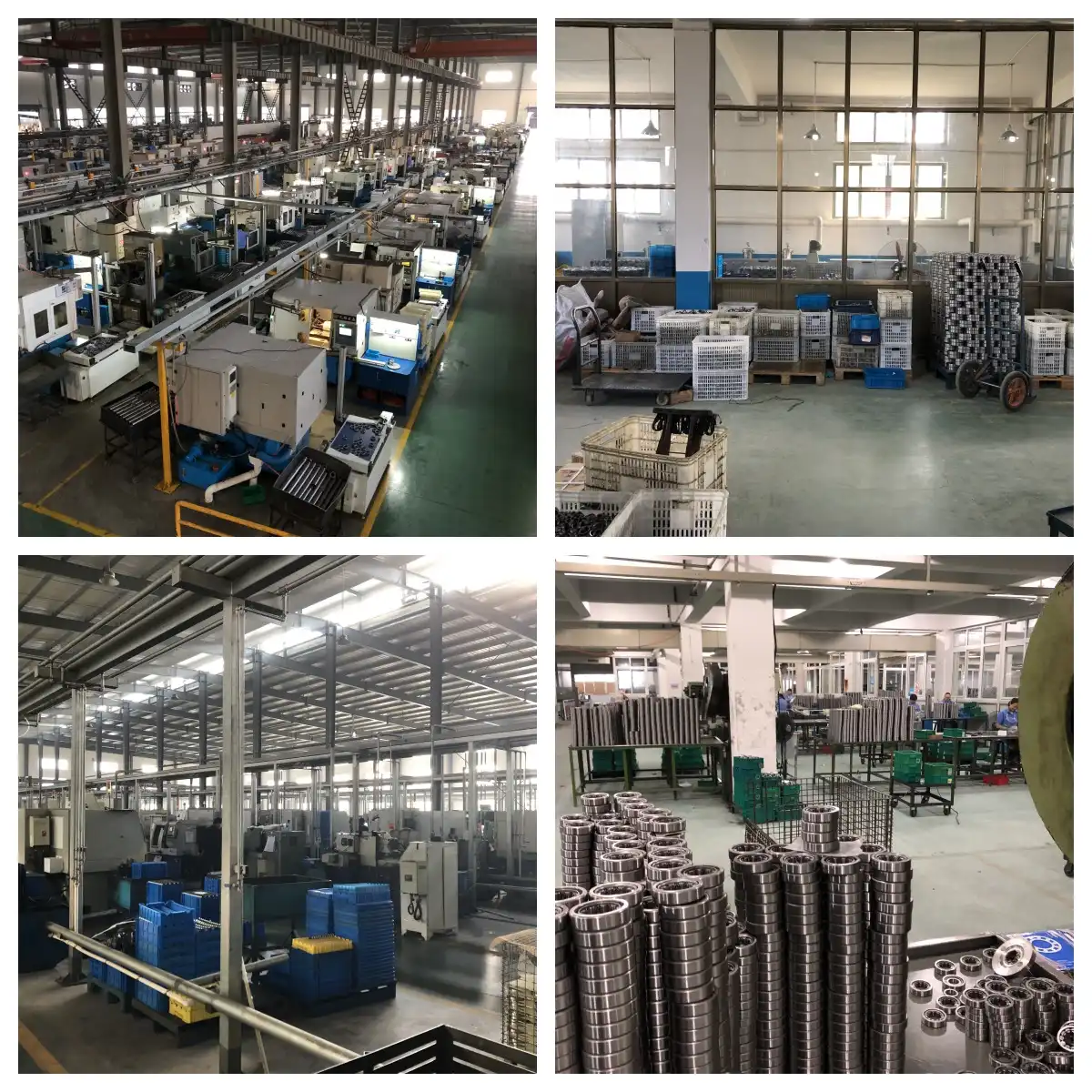

Since 2010, Luoyang Auto Bearing Co., Ltd. (ATLYC) has been making bearings. We have six production workshops, 120 production and engineering staff, and ISO 9001 and IATF 16949 certifications. We handle custom Tapered Roller Bearing 32 series orders from reviewing the specifications to shipping them out. Our processes for measurement checking, Andersometer vibration testing, and metallurgical quality control are done on every batch; they are not extras that can be added if needed.

Best Practices for Maximizing Your Customized Bearing's Performance

It's only half the job to get the heading right. The other half is installing and taking care of it correctly.

Precision Installation Techniques

Never use hammers; always use induction heaters or hydraulic presses. Make sure the interference specs on your drawing match how the shaft and case fit together. For paired mounting (front-to-back or face-to-face), use a dial indicator to measure the actual axial displacement and change the thickness of the shims to reach the target preload within ±5 µm.

Inspection Schedules and Predictive Maintenance

For new setups, the first bearing check should happen after 500 hours of use. Check for sound frequencies that don't make sense, temperature rises that are more than 20°C above the regular level, and wear patterns that can be seen on the raceways. Vibration spectrum analysis can find early signs of spalling weeks before they break. This is especially useful for equipment that is used in continuous production, where unplanned downtime costs a lot.

Lifecycle Cost Analysis

A handmade 32 series bearing that is made just for your needs could cost 15–25% more than a stock one. The total cost of ownership goes down a lot, though, if repair intervals are raised from 3,000 hours to 5,000 hours and there are no more than two unexpected stops per year. Write down your baseline failure rate before you switched, and then track how much it went down afterward. This information will help you make your next sourcing decision and support your internal ROI case.

Conclusion

To make a Tapered Roller Bearing 32 series work for OEM purposes, the material grade, tolerance class, roller profile, sealing, and lubrication must all be in line with the loads and conditions that the bearing will be used in. The distinctions between the sub-series (320xx, 322xx, and 323xx) are important and have an impact on both performance and service life. A well-specified bearing can be used to save money in the long run if it is installed correctly and maintained according to a set plan. Get correct application data to begin with, work with a licensed manufacturer, and keep track of your progress.

FAQ

How is internal clearance set in a 32 series tapered roller bearing?

The factory does not set the internal clearance. During assembly, you set the working clearance or preload by changing the axial distance between the cone and the cup with shims or lock nuts.

What is the difference between the 320xx and 322xx sub-series?

The 320xx's cross-section is thinner, making it better for small housings that can handle moderate loads. Because it has a bigger section and can hold more dynamic load, the 322xx is the better choice for gears and heavy axles.

Can the 32 series handle shaft misalignment?

Standard designs can handle a circle for about 2 to 4 minutes. Premium models with logarithmic roller crowning and crowned raceways can handle a little more misalignment without a big drop in fatigue life.

What lubrication works best at high speeds?

When speeds are high, oil or oil-mist systems work better than grease because they get rid of heat better at the cone rib-flange contact zone.

What are the typical lead times for custom orders?

It usually takes 4–8 weeks for first-article special sales. When you use the same tools for multiple orders, they usually ship within two to four weeks.

Partner with ATLYC for Your Next Tapered Roller Bearing 32 Series Order

Luoyang Auto Bearing Co., Ltd., also known as ATLYC, is a verified Tapered Roller Bearing 32 series manufacturer with 15 years of experience supplying OEMs. They are ISO 9001 and IATF 16949 certified and have active export relationships in the US, Germany, South Korea, and other places. If you email your drawing or specification sheet to auto@lyautobearing.com, you will get a detailed technical answer within 24 hours.
