Where Is Deep Groove Ball Bearing 60 Series Commonly Used?

The deep groove ball bearing 60 series appears across nearly every industrial sector that demands compact, high-speed, and low-maintenance rotating components. From electric motors and HVAC systems to robotic joints and automotive transmissions, this single-row radial bearing handles both radial and moderate axial loads with consistent precision. Its smaller cross-section compared to heavier series makes it the preferred choice for engineers who need to save space without reducing shaft diameter. In short, if your application runs fast, runs often, and has limited housing space, the 60 series ball bearing belongs in your design.

Understanding the Deep Groove Ball Bearing 60 Series

The 60 series is an "Extra Light" metric bearing that is part of ISO Dimension Series 10. It is made up of a single row of balls that are set in deep grooves in the track. This lets it handle both radial and mild axial loads in both directions.

Material and Construction

Most 60 series bearings are made from GCr15 high-carbon chrome steel that has been vacuum-degassed and heated to an HRC 60–64 hardness (equivalent to SAE 52100). AISI 440C stainless steel types are needed for places that are corrosive. You can choose a cage made of pressed steel, brass, or polyamide (nylon). For low-noise, high-speed electric motor applications, polyamide cages work best.

Precision Classes and Clearance

These bearings are made to ISO precision classes ranging from P0 (ABEC-1, standard) to P5/P4 (ABEC-5/7, high precision). The grades of internal radial clearance go from C2 (tighter fit) to C3/C4 (looser fit). For situations where the speed is higher than 3,000 RPM, or the temperature is high, where the steel rings would otherwise get stuck because they would expand when heated, C3 clearance is usually required.

Key Technical Specifications

For example, the bore range is 10 mm to 150 mm, which are common stock sizes. The precision class can be P0, P6, P5, or P4. The clearance options are C2, CN, C3, and C4. The speed rating is 15–20% faster than the 62/63 series. The noise grade can be Z3/V3 or Z4/V4 for precision motors. Steel, brass, or polyamide can be used for the cage.The 60 series' lighter rolling element assembly lowers centrifugal force at speed. This lowers operating temperature and friction torque, which are two of the most important factors in designing an energy-efficient motor.

Common Applications of the 60 Series Ball Bearing

Because of how flexible this type of bearing is, it will work in things you use every day. Here are the main areas where it shows its worth:

Electric Motors and HVAC Systems

The 60 series can handle shaft speeds that regularly go over 6,000 RPM in small to medium-sized electric motors like HVAC fan motors, pump motors, and compressor units. Its small outer diameter lets motor makers keep the housing sizes small, and the deep groove geometry handles axial loads that come up when a belt or pulley isn't lined up right. Sealed variants (2RS) keep the factory grease for fill-for-life operation, so Deep Groove Ball Bearing 60 series don't need to be oiled in the field at all.

Industrial Robotics and Automation Equipment

60 series ball bearings can handle stop-and-start power, which is good for robotic arm joints, conveyor drive rollers, and pick-and-place actuators. It is best to use the sealed 60xx-2RS version in factories where metal dust or coolant mist is present in the air. This series is perfect for servo-driven automation axes that need to respond quickly because it has low rotational inertia and a high limiting speed.

Automotive Components

60 series bearings are used in alternators, power steering pumps, electric window motors, and other drive systems in cars. The design is very light, which helps the auto industry's ongoing effort to make drivetrain parts with less rotating mass. Electric cars' battery range is directly affected by how well the motor works, so this series' lower friction torque saves a lot of energy over the life of the vehicle.

Comparing the 60 Series with Related Bearing Series

Before you can pick the right series, you need to know how it varies from the others. The main differences are shown in the table below:

60 vs. 62 Series

The 62 series has the same bore diameters as the 61 series, but the outer ring is wider, and the balls are bigger, which gives it a better dynamic load rate. The 62 series can carry more weight if your design can handle the extra width and outer circle. When there isn't much room in the building or speed is important, the 60 series wins.

Open vs. Sealed Configurations

Open Deep Groove Ball Bearing 60 series bearings can be oiled in the field and work with central grease systems. The 60xx-ZZ version has metal shields, which have low friction but don't protect well against small particles. Rubber contact seals on the 60xx-2RS version make it safer in wet or dusty conditions, but they also make it slightly slower. 2RS is the usual specification for uses that will be used outside or in harsh conditions.

Noise and Vibration Grades

For electric motor uses that can't have any vibrations, high-precision 60 series bearings with Z3/V3 or Z4/V4 noise grades are required. Standard P0 bearings are fine for most industry uses, but to meet IEC vibration class standards, motor-grade bearings need to be P5 or better.

Maintenance, Installation, and Technical Considerations

Getting a 60 series bearing to last a long time rests on how well it is installed as on how well the bearing itself works.

Correct Fitting and Shaft Tolerance

It is recommended that bearing fits follow the tolerances set by ISO. For shafts, a tolerance of j5 or k5 is fine for inner rings that rotate normally, and H7 is fine for housing bores. To press-fit a ring, force must be given to the ring itself, never to the balls. Using a bearing warmer to heat the inner ring to 80–100°C before installing keeps the raceway from getting damaged by too much fitting force.

Lubrication Practices

Pre-sealed bearings (2RS/ZZ) come factory-filled with NLGI Grade 2 lithium-based grease at 30–40% of their free volume. In most cases, they don't need to be re-greased. When used in continuous-duty situations, open bearings should be re-greased at set times based on the working temperature and speed factor (n × dm). When the temperature goes above 120°C, you need a high-temperature synthetic grease to keep the oil from separating too soon.

Signs of Bearing Failure

Strange sounds: a high-pitched whine means there isn't enough lube, and a clicking sound that doesn't happen regularly means contamination or spalling. If the temperature of the bearing is more than 20°C higher than the temperature of the housing, this is a good early warning sign. Using accelerometers for scheduled vibration research helps find fatigue damage before it leads to a major failure.

Procurement Guide and Supplier Considerations

If you only buy Deep Groove Ball Bearing 60 series from certified manufacturers, your supply chain will be safe from fake parts and poor quality.

Certification Standards

In addition to ISO 9001, any supplier that works with auto OEMs must also be certified by IATF 16949. IATF 16949 requires process controls for the automotive industry, such as PPAP, FMEA, and SPC, which ISO 9001 does not. Check that the qualifications are up-to-date and come from reputable third-party organizations, not from the person themselves.

Supply Chain Factors

Check suppliers to see if they can provide material traceability certificates (MTCs), minimum order quantities, and lead times that can be proven. Do not forget to ask for PPAP Level 3 reference packages for global OEM projects. Bulk purchasing strategies, like blanket orders with planned releases, usually cut the cost per unit by 8–15% compared to spot buying while keeping the supply going.

Trusted Manufacturer Example

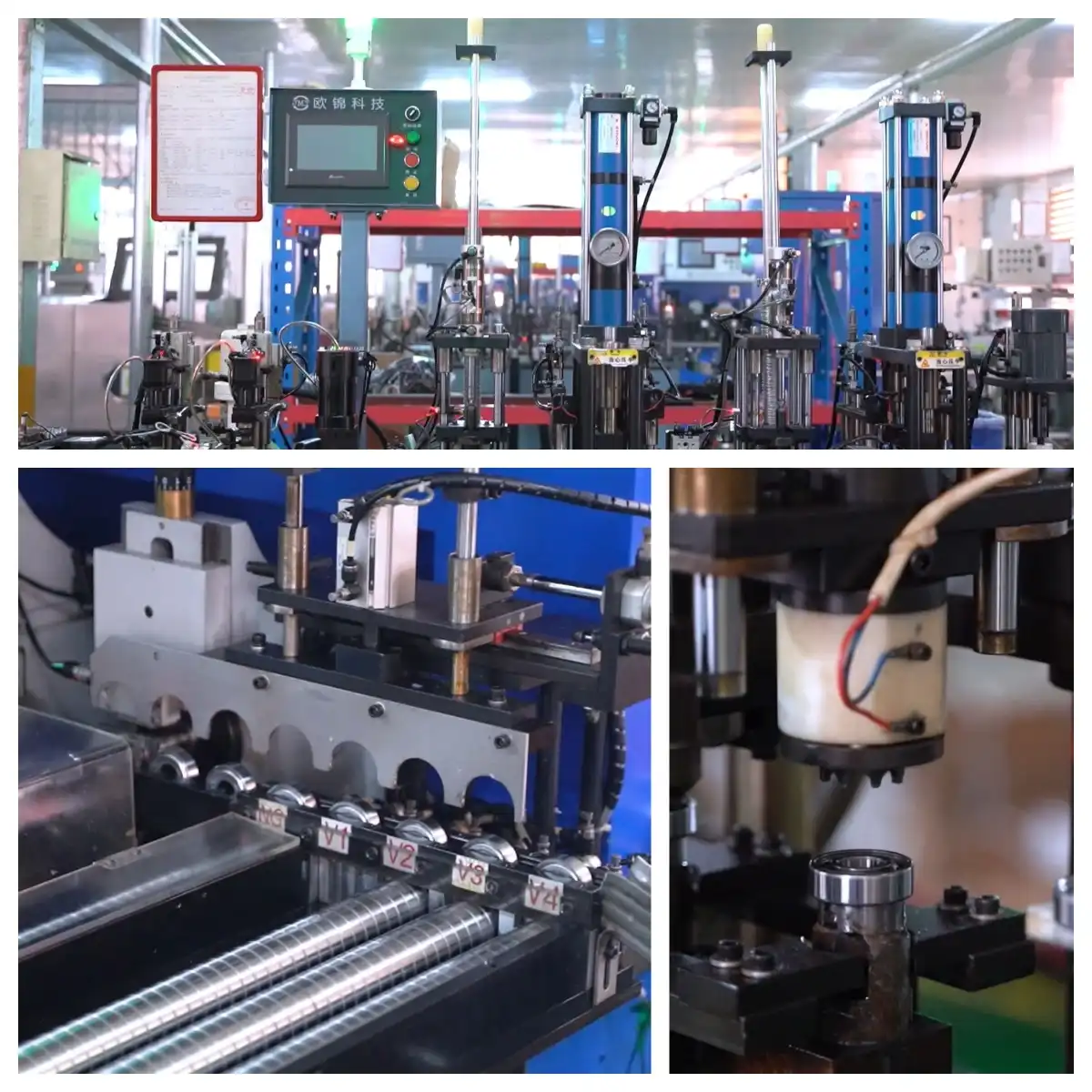

Luoyang Auto Bearing Co., Ltd. (ATLYC), which was founded in 2010, is certified by both ISO 9001 and IATF 16949. It has six specialized manufacturing workshops with 120 committed production staff. Over the past 15 years, ATLYC has built a reputation for exporting to South Korea, Germany, Russia, Iran, Turkey, and the US. Their Deep Groove Ball Bearing 60 series is made for precision classes P0 through P5, and you can choose between full cage and sealed configurations.

Conclusion

Deep Groove Ball Bearing 60 series has a unique place in precision mechanical design that can't be filled by anything else. It is the best choice for electric motors, robotics, and small automotive assemblies because it has a small cross-section, can work at high speeds, and comes in fill-for-life sealed versions. If you choose the correct configuration (precision class, clearance grade, cage material, and sealing type), your bearing will either last the full L10 life or break down early. Working with a manufacturer that has IATF 16949 certification and provides full material traceability takes the guesswork out of buying things and keeps your production line safe from supply risk.

FAQ

How does the 60 series differ from the 62 and 63 series?

The 60 series is in ISO Dimension Series 10's "Extra Light" category. The 62 (Medium) or 63 (Heavy) type has a bigger outer diameter and wider width for the same hole size. This means less weight and faster speeds, but a smaller dynamic load limit. If speed and room are the most important things to you, choose the 60 series. If load capacity is more important, choose the 62 or 63 series.

When should I specify C3 clearance?

For things like electric motor bearings that run faster than 3,000 RPM or at high temperatures, C3 internal clearance is suggested. The extra room inside the radial bearing allows the steel rings to expand when they get hot. This keeps the bearing from getting too tight and running hot while it's in use.

What is the difference between 2RS and ZZ seals?

The number 2RS means that the contact seals are made of rubber. These seals are very good at keeping dust and water out, but they do create a little more friction drag. ZZ stands for metal non-contact screens, which let higher limiting speeds happen but don't protect well against fine particles or liquids getting in. Always use 2RS when working outside or in wet conditions.

Can these bearings handle axial loads?

Of course, within reason. Because the raceways are deep, the 60 series can handle axial loads that are about 25 to 50 percent of its radial load rating in both directions. Thrust bearings or angular contact bearings are better for uses with big loads or loads that move in a straight line.

What lubrication do sealed 60 series bearings use?

Units that are factory sealed are already filled to 30–40% of their free volume with NLGI Grade 2 lithium-based grease. Under normal working conditions, this is a fill-for-life arrangement that doesn't need to be re-greased in the field.

Source Your Deep Groove Ball Bearing 60 Series Supplier with ATLYC

Since 2010, ATLYC (Luoyang Auto Bearing Co., Ltd.) has been making quality 60 series ball bearings in six production units. The company has ISO 9001 and IATF 16949 certifications. Our engineering team can help you with your technical needs from acceptance of a sample to delivery of the full volume, whether you need normal catalog sizes or configurations that are specific to your application. To get a price quote on Deep Groove Ball Bearing 60 series for your next project, email us at auto@lyautobearing.com or go to https://aotezhoucheng.aixdb.cn/.

References

1. Harris, T. A., & Kotzalas, M. N. — Rolling Bearing Analysis: Essential Concepts of Bearing Technology, Taylor & Francis, 2006.

2. International Organization for Standardization — ISO 15:2017: Rolling Bearings — Radial Bearings — Boundary Dimensions, ISO, 2017.

3. Bearing Manufacturers Association — ABMA Standard 9: Load Ratings and Fatigue Life for Ball Bearings, ABMA, 2015.

4. SKF Group — SKF Rolling Bearings Catalogue, SKF, 2018.

5. Hamrock, B. J., Schmid, S. R., & Jacobson, B. O. — Fundamentals of Machine Elements, McGraw-Hill, 2005.

6. IATF — IATF 16949:2016 — Quality Management System Requirements for Automotive Production, IATF, 2016.
