Can Angular Contact Ball Bearing 70 series Improve Spindle Accuracy?

The Angular Contact Ball Bearing 70 series is purpose-built for high-speed, high-precision spindle applications. Its displaced raceway geometry allows simultaneous handling of radial and axial loads, while precision grades P4 and P2 keep rotational run-out to sub-micron levels. When I compare this series to standard deep-groove bearings or heavier 72-series options, the 70-series consistently delivers tighter tolerances, better thermal stability, and measurable improvements in surface finish quality on CNC-machined parts.

Understanding the Angular Contact Ball Bearing 70 Series

What Defines This Series

The Angular Contact Ball Bearing 70 series is part of ISO Dimension Series 10, which indicates a smaller cross-section than series such as 72 or 73. It's not a compromise that this shape is small; it was chosen on purpose so that engineers can fit larger shafts inside standard housing bores. This makes the shafts more rigid without making the machine frame bigger.

Core Material and Build Specifications

ATLYC makes its Angular Contact Ball Bearing 70 series out of GCr15 high-carbon chromium bearing steel. This steel has a Rockwell hardness of about 60–65 HRC after being heat-treated. Bakelite (phenolic cement) and Nylon are two types of cages that can be used for different speed and temperature needs. Bakelite cages work well in places with high speeds and oil-based lubrication, while Nylon cages work well in places with moderate speeds and grease-based lubrication.

Contact Angle Selection and Its Effect

The choice of contact angle directly affects how the load is spread out in radial and axial directions. In real life, each choice works like this:

• 15° contact angle: The 15° contact angle works best with very fast spindles that don't have to deal with heavy loads along their axes, like grinding heads that go over 20,000 RPM. The shallow angle makes the structure less stiff along its length, but it also generates a lot less heat.
• 25° contact angle: Offers a fair trade-off between the speed of spinning and the amount of load it can hold. As a general rule, this angle is used for CNC machining center spindles where cutting forces and speed are important.
• 40° contact angle: Designed for situations with a lot of axial load, like gas engines, differential gear shafts, and centrifugal separators. At this angle, the axial stiffness is strongest, but the fastest speed that is allowed goes down.

One of the most common mistakes I see engineers make when they buy things is picking the wrong contact angle for the job, especially when selecting an Angular Contact Ball Bearing 70 series. Both the bearing and the spindle system will be safer if you do this right from the start.

How the 70 Series Influences Spindle Accuracy

Preload and Radial Run-Out

Precision spindle bearings are different from general-purpose ones because they have controlled preload. When a matched set of Angular Contact Ball Bearing 70 series is put together in either a Back-to-Back (DB) or Face-to-Face (DF) layout, the preload gets rid of any internal clearance and makes the unit stiffer. According to a study published in the International Journal of Machine Tools and Manufacture (2018), proper preload in angular contact bearings cuts spindle radial run-out by up to 40% compared to configurations that aren't preloaded. When the accuracy level is P4 or P2, the inner ring radial run-out value is less than 2.5 µm or 1.5 µm. These are the kinds of tolerances that directly affect the accuracy of the workpiece's dimensions.

Comparison with Deep Groove and 72 Series Bearings

Deep groove ball bearings can't handle heavy loads in one direction and don't have the right rotational contact shape for spindle-grade stiffness. The 72 series uses the same angular contact principle, but its cross-section is heavier, so it creates more centrifugal force at high speeds. Studies published in the CIRP Annals – Manufacturing Technology (2020) show that Angular Contact Ball Bearing 70 series can control speeds 20–30% faster than 72 series bearings of the same type and load. This speed difference is important for spindle applications that need speeds above 15,000 RPM.

Thermal Stability Under Load

It's very hard to kill with thermal growth. When a spindle gets hot, its shaft stretches along its length. This changes the preload state and moves the axis of spinning. The GCr15 steel in our Angular Contact Ball Bearing 70 series has a well-known thermal expansion coefficient of about 11.5 × 10⁻⁶/°C, which engineers can take into account when designing the spindle. With low-friction cage materials and improved ball-to-raceway geometry, the 70 series keeps its thermal balance faster than the heavier series. This means that during long machining cycles, dimensional drift stays within acceptable limits.

Selecting the Right 70 Series Bearing for Your Application

Matching Load and Speed Requirements

I always suggest making a chart of three factors before ordering any Angular Contact Ball Bearing 70 series: the maximum radial load, the maximum axial load, and the peak operating speed. The contact angle and the accuracy grade you need are both based on these three numbers. For a motor shaft that is turning at 18,000 RPM and has light axial loads, the contact angle at P4 grade needs to be 15°. A differential pinion shaft that is turning at 6,000 RPM and under a lot of force needs a 40° contact angle. A P5 grade may be enough for this.

Mounting Configuration Choices

Each of the three basic duplex installation options is best for a different type of load:

• DB (Back-to-Back): Gives the most resistance to moment loads. Fits loads that hang over the edge, which is common in grinding frames.
• DF (Face-to-Face): More tolerant of shafts that aren't lined up right. Used in places where it's harder to control thermal expansion.
• DT (Tandem): Both bearings share axial load in the same direction. Applied when one direction of thrust dominates, as in some pump and compressor shafts.

OEM Compatibility and Supplier Criteria

For OEMs and large industrial buyers, qualifying a supplier is more than just checking off the catalog's requirements. Some of the most important things I look for are ISO 9001 and IATF 16949 approval, the ability to grind precisely, matched-pair consistency for duplex sets, and shipping performance that can be checked. ASTC is certified by both ISO 9001 and IATF 16949, and basic versions can be delivered within 7 business days. All sizes can be customized by the OEM, and this includes special bore tolerances, custom cage materials, and preload classes that are made for each application.

Maintenance and Optimization Tips to Maximize Spindle Accuracy

Lubrication Strategy for High-Speed Spindles

The choice of lubricant has a direct effect on both the temperature of the Angular Contact Ball Bearing 70 series and its service life. When spindles are turning faster than 12,000 RPM, oil-air or oil-mist lubrication is best because it creates a thin, constant oil film without the spinning losses that come with grease. For sealed versions or moderate-speed uses, high-speed synthetic grease (like lithium-complex or polyurea base) fills the bearing cavity to 30–40% of its full capacity. Putting too much grease in there speeds up wear and causes heat to build up.

Early Failure Detection

Using an Anderon meter or a handheld accelerometer for vibration analysis can find waviness in the track and problems below the surface before they break the system completely. From what I've seen, a sudden rise in the G1 vibration band (50–300 Hz) in spindle bearings usually happens several hundred hours before visible raceway pitting. This gives you time to schedule planned maintenance instead of having to deal with unplanned downtime.

Mounting and Handling Practices

More premature bearing failures are caused by bad positioning than by any other single reason. Do not put increasing force on the rolling parts. When fitting a ring, you should always use a press or hydraulic tool that acts directly on it. Controlled induction heating to 80–100°C makes the inner ring big enough for shaft installation without putting too much stress on the steel microstructure for interference fits.

Future Trends in Angular Contact Bearings for Spindles

Advanced Materials and Coatings

In ultra-high-speed shaft uses, hybrid ceramic bearings that use silicon nitride (Si₃N₄) balls and steel rings are becoming more popular. Ceramic balls are about 60% lighter than steel balls. This lowers the rotational force at high speeds and lowers the amount of heat that is made. In research settings, diamond-like carbon (DLC) coatings on raceways are also being looked at as a way to lower friction coefficients below 0.001.

IoT-Enabled Condition Monitoring

The way industrial buyers think about buying Angular Contact Ball Bearing 70 series is changing because of embedded sensor technology. Standard industrial protocols can be used to check on the condition of smart bearing units in real time. These units have temperature and vibration sensors built in. This change affects buying decisions; buyers now look at more than just the bearing hardware. They also look at how well the supplier can support data protocols and sensor integration.

Supply Chain Digitalization

More and more, global B2B buyers want vital parts to be able to be tracked digitally. Digital portals are being used to deliver batch-level quality records, dimensional inspection reports, and material certificates. These are becoming standard, especially for automotive supply chains that are regulated by IATF 16949.

Conclusion

When properly stated, properly primed, and kept with the right lubrication practices, the Angular Contact Ball Bearing 70 series really does improve spindle accuracy. It is the best choice for machine tool spindles, high-frequency motors, gas turbines, and other demanding rotational applications because it has a small cross-section, precise tolerance grades (P4/P2), and a range of contact angle options. For purchasing teams and design engineers who care about consistent quality, certified manufacturing, and a steady supply, the 70 series is a good investment that will pay off in the long run. If you choose the right supplier—one with a history of grinding, valid certifications, and production that can be scaled up or down—those performance benefits will make it to the shop floor.

FAQ

Can the 70 series handle both radial and axial loads simultaneously?

Yes. The shape of the shifted raceway makes an angled contact line between the ball and the raceway, which spreads the load in both the radial and axial directions. The amount varies on the contact angle chosen for the Angular Contact Ball Bearing 70 series; 15° is best for high speed and handling rotational loads, while 40° is best for maximum axial load capacity.

How does the 70 series differ from deep groove ball bearings in accuracy?

The most common grades of deep groove ball bearings for general use are P0 and P6. The 70 series is usually made to grades P4 and P2, and the radial run-out tolerances are less than 2.5 µm. This level of accuracy can't be reached with regular deep groove designs, and it's only needed for spindle uses.

What should OEM buyers verify when sourcing at volume?

Check the supplier's IATF 16949 certification, matched-pair consistency for duplex sets, measurement inspection reports for each batch, and track record of real delivery performance. You should specifically ask about the preload classes that are available (Light, Medium, and Heavy) and whether universal matching (DU) grinding is done in-house.

Is grease lubrication acceptable for sealed 70 series bearings?

Yes, for low to medium speeds. For uses below about 12,000 RPM, pre-greased sealed bearings with synthetic high-speed grease can be used. When moving at higher speeds, oil-air lubrication is the best way to get rid of heat.

What is the typical service life of a P4-grade 70 series bearing in a CNC spindle?

With the right mounting, preload, and lubrication, a P4-grade bearing in a CNC lathe running at 10,000 to 15,000 RPM can have an L10 life of more than 20,000 hours, though this depends on the real load and the quality of the oil.

Partner with ATLYC for Precision Angular Contact Ball Bearing 70 Series Supply

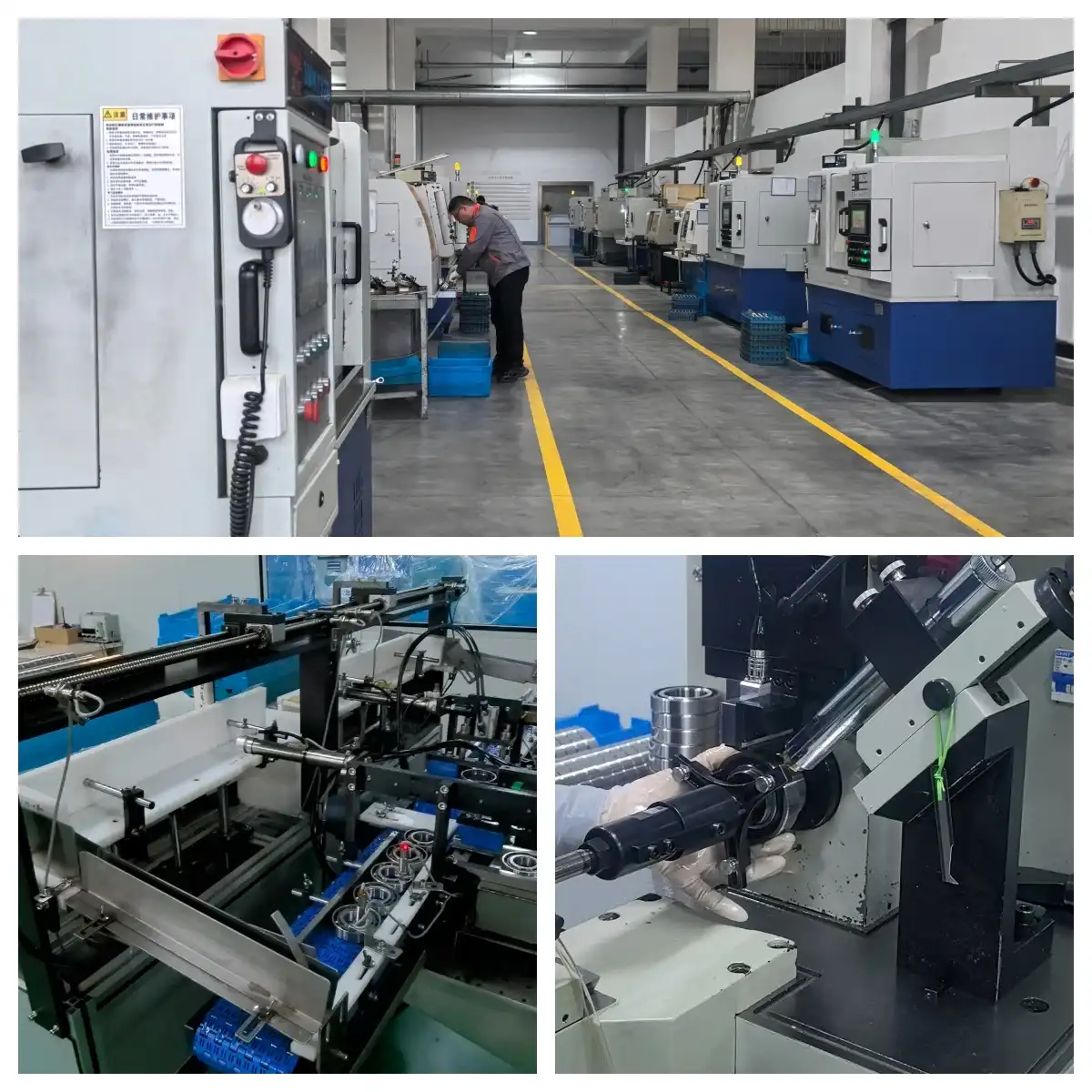

ATLYC has been making precision bearings since 2010 and has six production workshops that are certified by both ISO 9001 and IATF 16949. We are a reliable source for Angular Contact Ball Bearings, 70 series. Our products are made from GCr15 steel, come in DB, DF, and DT mounting configurations, are delivered in 7 days for normal sizes, and come with full OEM modification support. To get prices and specs, email our engineering team at auto@lyautobearing.com or go to https://aotezhoucheng.aixdb.cn/.
