Why Is RE2508UUCC0 Cross roller bearing Ideal for OEM Projects?

The RE2508UUCC0 cross roller bearing stands out as an optimal choice for OEM projects due to its unique ability to handle multi-directional loads within a compact footprint. Featuring a split inner ring and integrated outer ring design, this bearing delivers exceptional rigidity and zero-backlash performance through its CC0 preload specification. With dimensions of 25mm inner diameter, 41mm outer diameter, and 8mm width, it combines high precision with space efficiency, making it particularly valuable for automotive components, industrial automation, and medical equipment manufacturing where installation constraints and performance demands are critical.

Understanding RE2508UUCC0 Cross Roller Bearing: Design and Technical Features

Split Ring Architecture for Installation Flexibility

The structure of this RE2508UUCC0 Cross roller bearing is based on its split inner ring and continuous outer ring design. This arrangement works especially well when the outer ring turns, which happens a lot in robotic joints and indexing tables. The split inner ring makes installation easier because it lets techs put the bearing in place without taking apart other parts around it. During use, the rings keep their structure by having the right pressing forces put on them by flanges or housing elements.

Crossed Roller Arrangement and Load Distribution

Within precision-ground V-groove raceways, cylindrical rollers are placed at right angles to each other every 90 degrees. This crossing shape lets the bearing handle radial, axial, and moment loads all at the same time with a single small unit. Each roller works on its own, spreading the loads evenly across the contact surfaces. The arrangement gets rid of the need for paired bearing installations. This makes the system lighter by 30–40% compared to standard double-bearing setups while keeping the same load capacity.

Technical Specifications and Materials

High-carbon chromium steel (GCr15 and GCr15SiMn) that has been heated and cooled until it is between 58 and 64 HRC is used in the bearing. This choice of material provides a longer wear life when loads are applied continuously. The measurements include the following:

There are different levels of precision, from P6 (standard tolerance) to P2 (ultra-precision), so they can meet the needs of a wide range of industrial applications. The CC0 clearance specification usually calls for a negative clearance range of -0.008 mm to -0.002 mm. This creates a preloaded state that stops elastic deformation when operational loads are applied.

Sealing System and Environmental Protection

The dual-sealed (UU) design has synthetic rubber seals on both sides, which effectively keep out contaminants without making the spinning force much higher. People who work in factories often have to deal with dusty surroundings, and these seals keep the lubrication inside the bearing hole. The sealing system works the same way in a wide range of temperatures that are common in industrial settings. However, for vacuum uses, special seal materials may be needed to keep gases from escaping. The basic needs that OEM makers have to meet when making precision tools are met by these design features. Because the equipment is small and can hold loads in more than one way, designers can make it smaller while still keeping the structure rigid.

Advantages of RE2508UUCC0 Cross Roller Bearing for OEM Applications

Superior Load Capacity in Compact Form

This RE2508UUCC0 Cross roller bearing can take three to four times as much weight as a regular ball bearing of the same size. Because the cylindrical roller shape makes line contact instead of point contact, the forces are spread out over a larger surface area. This means less stress on the contacts and a longer service life when heavy loads are applied. This increased capacity lets companies that make car parts make smaller gearbox systems or steering kits without lowering the quality of their work.

Precision Performance and Runout Accuracy

Most of the time, rotational accuracy is at least ISO Class 5, and runout values are recorded in single-digit microns. This level of accuracy stays the same for the life of the bearing, which is important for CNC machining centers and coordinate measuring machines that need accurate positioning. The design of the combined outer ring directly improves this performance by getting rid of the accumulation tolerances that come with bearing systems with more than one part. The preloaded setup improves precision even more by getting rid of internal play. Even very small backlash can add up to big positioning mistakes when robotic manipulators place parts for assembly operations. This problem can't happen with the CC0 specification, which makes sure that positioning is always done within the narrow tolerance bands that modern automation equipment needs.

Maintenance Optimization and Lubrication Guidelines

Proper lubrication makes bearings last a lot longer. The sealed design keeps the factory-applied grease, which is usually a lithium-based mixture with EP additives. For normal industry uses, re-lubrication should happen every 6,000 to 10,000 hours, but this depends on the load and the temperature outside. OEM clients who want to use these bearings in medical devices or lab equipment should make sure that they are bought with vacuum-compatible grease replacements to meet environmental standards. The steps for maintenance are still simple. As part of a regular checkup, the rotational torque is checked for stability and strange sound patterns are listened for. The strong design of the bearing can handle small misalignments (up to 2 arc-minutes), which makes installation less sensitive and field service easier. These features lower the total cost of ownership by cutting down on downtime and the need for expert assistance. When robotic systems are running all the time, the low friction coefficient makes sure that the spinning goes smoothly and doesn't produce much heat. Temperature stability stops problems with thermal expansion that could lower accuracy in high-precision tasks like moving semiconductor wafers or optical instrument stages.

RE2508UUCC0 vs. Alternative Bearings: Making the Right Choice

Comparison with Similar Cross Roller Bearings

Comparing the RE2508UUCC0 Cross roller bearing to the RE2507UUCC0, which is smaller in size, the RE2508 has a wider width, which means it can hold about 15% more moment loads. This difference is important for uses involving cantilever loads, like robot hand systems that hold tools in place. The following table shows some important differences:

When working on OEM projects with limited room, picking the right width is very important for balancing the load capacity with the available area. Manufacturers of industrial robots, especially those making collaborative robots with small joints, often say that the RE2508 configuration is the best balance between performance and size.

Ball Bearings and Angular Contact Alternatives

Traditional deep groove ball bearings can't handle the same amount of moment load as cross roller designs. To get the same moment resistance, a similar 25mm bore ball bearing would need to be paired with a second bearing that is spaced a few centimetres apart. This doubles the number of parts and makes the setup more difficult. Angular contact bearings can handle more axial loads than ball bearings, but they still need to be mounted in pairs to handle moment loads. The cost-benefit analysis shows that cross roller bearings are better when there isn't much room for installation or when simplifying the system makes it easier to put together. When procurement experts look at the total cost, they should take into account fewer parts, easier housing designs, and shorter assembly times. These things usually make up for the fact that cross roller bearings cost more per unit, especially when they are used in medium to large amounts of production.

Application-Specific Selection Criteria

For axial load capacity to survive cutting forces, rotary table makers must put axial load capacity at the top of their list when choosing bearings for horizontal machining centers. These forces can be handled by the crossed roller arrangement without the need for extra thrust bearings. When medical equipment makers make portable diagnostic tools, they like how single-bearing setups can help them cut down on weight. Semiconductor equipment engineers request these bearings for wafer handling robots that work in cleanrooms. The protected design of these bearings stops particles from forming that could contaminate processes. These comparisons show why design engineers are choosing cross roller bearings more and more for OEM applications that need small, rigid solutions. Because of the better performance, the benefits should be carefully considered when choosing the parts for a product.

Procurement Insights for RE2508UUCC0 Cross Roller Bearing

Authorized Distribution Channels and Quality Assurance

To get real RE2508UUCC0 Cross roller bearings, you have to work with well-known suppliers or authorised dealers. Sometimes, fake parts get into supply chains, especially through online markets that aren't checked out. These cheap goods don't get the right amount of heat treatment or measurements, so they break too soon. ATLYC works directly with reliable sources and uses incoming inspection methods to check the hardness of materials, dimensional accuracy, and quality of surface finishes on parts before they are sent to production settings.OEM companies that make goods for regulated fields like medical devices or car safety systems need to make sure that their bearing sources have the right quality licenses. Certifications like ISO 9001 and IATF 16949 show that a company uses organised quality management methods to make sure that its products are always of high quality. Our quality control system at ATLYC is regularly checked by a third party. This gives OEM clients the proof they need for their own regulatory reports.

Pricing Structures and Volume Considerations

Precision cross roller bearings have different unit prices depending on how many you order and the level of accuracy you need. P5 grade bearings usually cost 20–30% more than P6 grade bearings, and P4 and P2 ultra-precision grades can make the base price double or triple. Tiered price cuts of 15–25% are common for bulk orders over 500 units, which makes volume agreements appealing for OEM projects with stable production plans. Lead times are between four and twelve weeks, depending on how complicated the specifications are and how much can be made at the moment. Standard setups with dual seals and CC0 preload usually ship in six weeks. If you need custom changes like different seal materials, different types of lubrication, or different sizes, the lead time could be ten weeks or longer. To secure production slots and avoid plan delays, OEM project managers should share forecast needs early on in the development cycle.

Technical Support and After-Sales Service

When choosing bearings, there are complex engineering trade-offs that are easier to understand if you talk to the manufacturer. Technical support teams can figure out the load, suggest the right preload specs, and give advice on how to place things. ATLYC helps with application engineering throughout the whole process of making a product, from evaluating the first idea to starting to make a lot of them. This way of working together helps find problems before they become expensive to fix, which lowers the risk of growth. Most warranties cover problems with the way the product was made for twelve months after delivery. The customer is still responsible for proper installation and lubrication, and warranty claims need proof of how the machine was used. Setting up clear lines of contact with bearing providers makes sure that problems in the field are dealt with quickly, which keeps production from stopping. When OEM manufacturers think about these things when they buy things, they can build reliable supply chains that can keep up with long-term production commitments. Working with reliable bearing suppliers gives you more than just parts; they also give you professional advice that makes your product more successful.

Applications of RE2508UUCC0 Bearings in OEM Industry

Industrial Robotics and Automation Systems

Articulated robots have several RE2508UUCC0 Cross roller bearings at each joint, which lets them move precisely along multiple axes. Because the bearing can handle combined loads, it eliminates the need for extra thrust bearings, which makes joint design easier. Along its kinematic chain, a six-axis robot might use 12 to 18 precision cross roller bearings. The RE2508UUCC0's small size makes it perfect for smaller payload robots (5–10 kg capacity) that are used to put together electronics or do light manufacturing. The repeatable positioning properties of the bearing help automation equipment makers build pick-and-place systems. For vision-guided assembly tasks, accuracy must stay the same over millions of cycles. The stable performance characteristics of the bearing are a good fit for this need. When used in factories, where dust from packaging materials or manufacturing processes could otherwise get on bearing surfaces, the sealed design is very useful.

Medical Equipment and Diagnostic Devices

Surgical computer systems need to be very accurate and reliable. The zero-backlash feature of the bearing makes sure that operator inputs directly affect tool movements with no positioning lag. The gantry rotation systems in CT scanners and MRI machines use precision bearings to keep the motion smooth and free of picture artefacts. The small size of the form factor lets companies that make medical devices make smaller devices generally, which is becoming more and more important as hospitals try to make the best use of space. With single-bearing installations, you can make portable diagnostic equipment slightly lighter. Ultrasound tools with motorised scanning systems use small cross roller bearings to make movement smooth in tight areas. The long service life makes it easier to maintain devices that are used in clinics that are far away and may not have a lot of technical support.

Precision Manufacturing Equipment

When working on more than one side, machining center rotary tables need accurate bearings to keep their positions within tight limits. The moment load capacity of the bearing stops cutting forces that would otherwise bend the table, keeping the accuracy of the workpiece's position. In coordinate measuring machines, similar bearings are used in the rotating axes. The accuracy of the measurements relies on how the bearings run out. Semiconductor manufacturing equipment may be the most difficult environment for bearings to work in. Robots that handle wafers work in Class 1 cleanrooms, which are places where even tiny particles are not allowed. The precise construction and sealed bearing design keep metal particles from shedding, and the sub-micron placement accuracy is needed for lithography alignment and inspection processes.

Conclusion

Important OEM needs are met by the RE2508UUCC0 Cross roller bearing, which has small dimensions, a high load capacity in multiple directions, and precise performance. Its split inner ring and combined outer ring design make fitting easier and give it great strength by controlling the preload. For companies that make cars, industrial equipment, and medical devices, this bearing lets them make machines that are smaller without sacrificing durability. Its flexibility and reliability are shown by the fact that it has been used successfully in robotics, automation, and precision manufacturing. This crossed roller bearing configuration always offers measured value through lower component counts, simpler assemblies, and longer service life, making it ideal for OEM projects that need space-efficient solutions that stay accurate under complex loading conditions.

FAQ

What load capacity can the RE2508UUCC0 handle compared to standard ball bearings?

This RE2508UUCC0 Cross roller bearing can handle loads of up to 3.5kN in the radial direction and 21 N·m in the moment direction. This is three to four times more than similar-sized ball bearings. The cylinder-shaped roller design makes line contact instead of point contact, which spreads forces over a bigger surface area and lowers contact stress. This increased capacity lets OEM engineers reduce the size of setups or add more capabilities to current equipment, which has a direct effect on how competitive a product is.

How does the CC0 preload specification affect installation and operation?

The number CC0 means that there is controlled negative clearance, which stops internal play and ensures zero-backlash performance. When these bearings are installed, they may have a slightly higher starting force than bearings that don't have any preload. A short break-in time at low rotating speeds lets the lubricant spread out and the temperature level stabilise. During its service life, the preload stays the same, which keeps the positioning accuracy that is needed for precise applications without the need for adjustment mechanisms.

What maintenance procedures extend bearing service life?

When sealed, bearings keep the lubrication that was put on them at the factory for 6,000 to 10,000 hours of normal use. Rotational torque uniformity and vibration signs that could mean contamination or wear should be checked on a regular basis. The main things to think about when doing maintenance are avoiding shock loads when handling, making sure that the shaft and case are installed correctly, and keeping contamination out through broken seals. For maximum service life, proper placement is more important than active upkeep.

Partner with ATLYC for Your Cross Roller Bearing Requirements

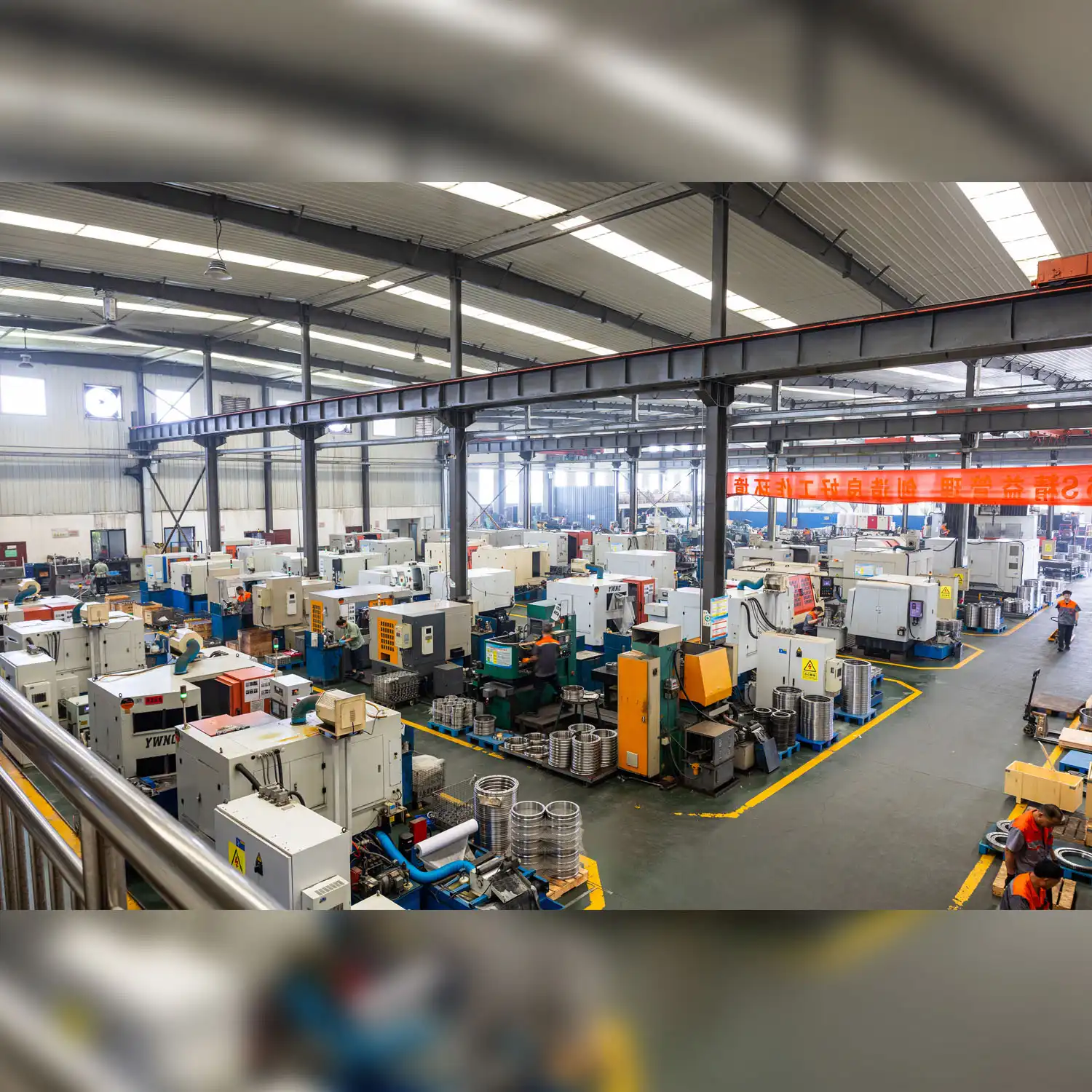

Since 2010, ATLYC has focused on making precision bearings. Our ISO 9001 and IATF 16949-certified facilities have grown to include a wide range of production capabilities across six categories. For RE2508UUCC0 Cross roller bearing integration, our engineering team offers help that is specific to the application. This includes load analysis, mounting suggestions, and customisation choices that are made to fit the needs of your OEM project. We have established supply relationships with companies that make medical equipment, automotive parts, and industrial automation in North America and Europe. This means we know how important it is for your production schedules that the quality of our products is consistent and that we can meet your delivery needs. Email our expert team at auto@lyautobearing.com to talk about your bearing needs, get full datasheets, or get quotes from other companies. As a supplier of cross roller bearings with fifteen years of experience, our 120-person manufacturing team and the ability to handle projects from prototype development to high-volume production make us the best choice.

References

1. Harris, T.A. & Kotzalas, M.N. (2006). Advanced Concepts of Bearing Technology: Rolling Bearing Analysis, Fifth Edition. CRC Press.

2. ISO 492:2014. Rolling bearings — Radial bearings — Geometrical product specifications (GPS) and tolerance values. International Organization for Standardization.

3. Weck, M. & Brecher, C. (2006). Machine Tools 4: Metrological Analysis and Performance Tests, Section on Rotary Axis Precision. Springer-Verlag.

4. THK Technical Review. (2018). "Cross Roller Bearing Design and Application Guidelines for Precision Machinery." THK Technical Journal, Vol. 12, pp. 45-58.

5. NSK Motion & Control. (2020). Precision Cross Roller Bearings: Technical Selection Guide. NSK Americas Corporation Technical Documentation.

6. IATF 16949:2016. Quality management system requirements for automotive production and relevant service parts organizations. International Automotive Task Force Standards.
